Automatic Calibration SMT Mounter Machine With Vision System CHM-T36VA

Automatic Calibration SMT Mounter Machine With Vision System

Description

This is CHM-T36VA, a small desk-top pick and place machine

CHM-T36VA, equipped with vision system, is the full-automatic pick and placement machine specially designed for users to connect an external computer so as to modify, edit, and access files conveniently.

It is characterized by 29 tape feeding stacks, support for stick feeders.14 general IC stacks preset at the front end and several self-defined IC tray stacks in the rear.automatic correction to pick components, and automatic positioning through recognition of Mark Point.

Competitive Advatage:

1. With vision detection, camera will auto correction component angle and place on PCB board right place. lf heads not picking up components, camera will detect it and go back to pick again, 3 times not picking, machine will alarm and stop, after supply material, then continue working, no need to start over again.
2. If you don't have PCB file, you can create a new work file to program in machine directly.
3. Support single step.

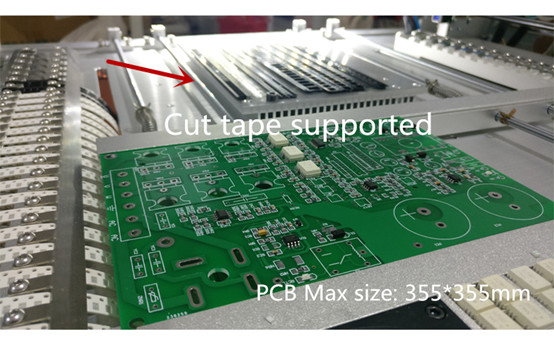

4. Support cut tapes/ bulk material/ tube material.

5. Convenient software, Embedded Linux System of the machine, stable industry main board, independent operation, operation easier and more convenient, learn fast.
6. Need external monitor, room saved, more convenient operation, USB mouse supported as well.
7. Top and bottom two vision cameras, correct the position of each components, you can view the vision image from screen for every components.(max component size 22*22mm)
8. Two mounting heads with 2pcs Juki Nozzles, Juki nozzle inside magnet, so it can be removed by finger, no need to disassemble with wrench, nozzles rotation angle -180 degree to +180 degree.
9. All-in-one machine, 29pcs feeders included in machine, no need to buy other parts, machine is ready to work.
10. Z axis detection, machine's pull needle automatically return to origin to avoid nozzles broken.
11. Max height component support 5mm.
12. Closed-loop control, X,Y Axis with encoder, not out of step.
13. PCB calibrated by two components position, then rest components will be calibrated automatically.
14. With vacuum detection, with automatic feeding, if one component suck crooked, it will automatically throw it to deposit area, then pick a new one to mount again.

Why choose Charmhigh?

1.Light weight body,occupy small area
2.User friendly interface no need professional SMT engineer,entry-level device
3.High integrated,no need extra pump or any supporting facility
4.High accuracy and reliability, make up the defection of manual work
5.Low cost,reduce expense to own a professional automatic SMT production line
6.International express with door to door service,3-5 working days delivery
7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment

Product show

The Machine support A Variety of Highprecision Nozzles
