| Categories | Excavator Spare Parts |
|---|---|
| Brand Name: | Belparts |
| Model Number: | SC210 R305-7 R290-7 R260LC-9A |
| Certifiion: | OEM |
| Place of Origin: | China |
| MOQ: | 1PC |
| Price: | Negotiated price |
| Payment Terms: | T/T, trade assurance,,Paypal |
| Supply Ability: | 1000 pieces per month |
| Delivery Time: | Within 2 working days |
| Packaging Details: | Wooden /Carton/Standard shipping package |
| Product name: | planetary gear |
| Machine moldel: | SC210 R305-7 R290-7 R260LC-9A |
| Part number: | XKAQ-00203 |
| Quality: | After market |
| MOQ: | 1PC |
| Warranty: | 3 months |
| Company Info. |
| GZ Yuexiang Engineering Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

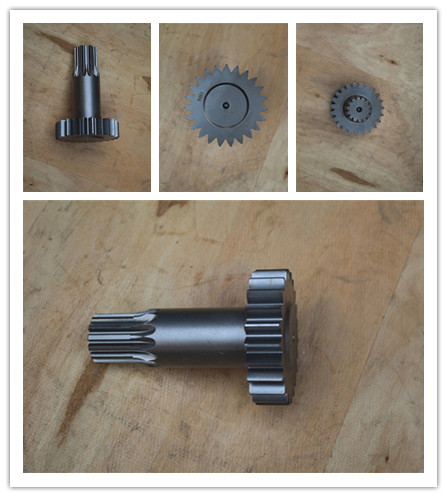

XKAQ-00203 SC210 R305 Hyundai Planetary Gear Parts Travel gearbox
1st sun gear
Description
| Appliion | Excavator |
| Part name | sun gear |
| Model | Hyundai |
| Model | SC210 R305-7 R290-7 R260LC-9A |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | XKAQ-00203 |
| Delivery Time | Within 2 days after receiving the payment |
Pictures

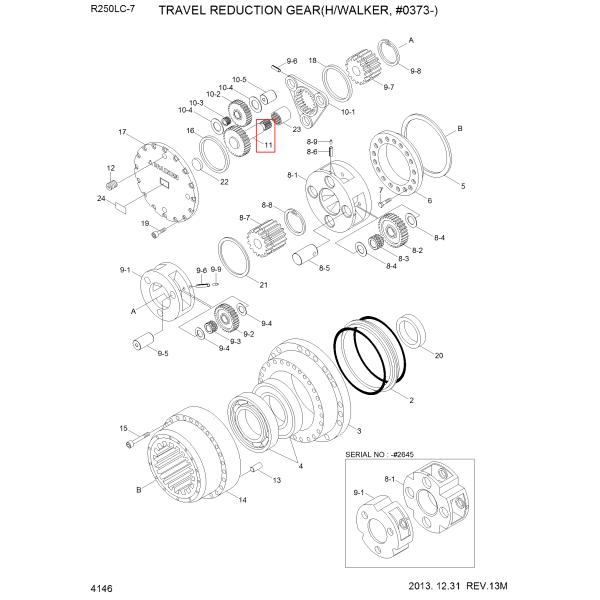

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *-2. | 31N8-40070BG | [1] | T/REDUCTION GEAR | SEE 4130 |
| *-2. | 31N8-40071BG | [1] | T/REDUCTION GEAR | SEE 4130 |
| *-2. | 31N8-40072 | [1] | T/REDUCTION GEAR | SEE 4130 |
| 2. | XKAQ-00173 | [1] | SEAL-FLOATING | |
| 3. | XKAQ-00174 | [1] | HOUSING | |
| 4. | XKAQ-00175 | [2] | BEARING-ANGULAR | |
| 4. | XKAQ-00175-AS | [2] | BEARING-ANGULAR | FOR AS ONLY |
| 5. | XKAQ-00176 | [1] | SHIM | STD |
| 5. | XKAQ-00992 | [1] | SHIM | 0.5T |
| 5. | XKAQ-00993 | [1] | SHIM | 0.9T |
| 5. | XKAQ-00994 | [1] | SHIM | 1.0T |
| 5. | XKAQ-00995 | [1] | SHIM | 1.2T |
| 6. | XKAQ-00177 | [1] | RETAINER | |
| 7. | XKAQ-00178 | [17] | BOLT-WRENCH | |
| 8. | XKAQ-00179 | [1] | CARRIER ASSY-NO.3 | |
| 8. | XKAQ-00398 | [1] | CARRIER 3 ASSY | |
| 8-1. | XKAQ-00180 | [1] | CARRIER-NO.3 | |
| 8-1. | XKAQ-00396 | [1] | CARRIER 3 | |
| 8-2. | XKAQ-00181 | [4] | GEAR-PLANETARY NO.3 | |
| 8-2. | XKAQ-00389 | [4] | GEAR 3-PLANETARY | |
| 8-3. | XKAQ-00182 | [72] | NEEDLE-NO.3 | |
| 8-3. | XKAQ-00390 | [72] | NEEDLE 3 | |
| 8-4. | XKAQ-00183 | [8] | WASHER-THRUST NO.3 | |
| 8-4. | XKAQ-00391 | [8] | WASHER 3-THRUST | |
| 8-5. | XKAQ-00184 | [4] | PIN 3 | |
| 8-6. | XKAQ-00185 | [4] | PIN 3-SPRING | |
| 8-7. | XKAQ-00186 | [1] | GEAR 3-SUN | |
| 8-8. | XKAQ-00187 | [1] | RING 3-SNAP | |
| 9. | XKAQ-00188 | [1] | CARRIER ASSY-NO.2 | |
| 9. | XKAQ-00399 | [1] | CARRIER ASSY 2 | |
| 9-1. | XKAQ-00189 | [1] | CARRIER-NO.2 | |
| 9-1. | XKAQ-00397 | [1] | CARRIER 2 | |
| 9-2. | XKAQ-00190 | [3] | GEAR-PLANETARY NO.2 | |
| 9-2. | XKAQ-00392 | [3] | GEAR 2-PLANETERY | |
| 9-3. | XKAQ-00191 | [45] | NEEDLE-NO.2 | |
| 9-3. | XKAQ-00393 | [45] | NEEDLE 2 | |
| 9-4. | XKAQ-00192 | [6] | WASHER-THRUST NO.2 | |
| 9-4. | XKAQ-00394 | [6] | WASHER 2-THRUST | |
| 9-5. | XKAQ-00193 | [3] | PIN 2 | |
| 9-6. | XKAQ-00194 | [6] | PIN 2-SPRING | |
| 9-7. | XKAQ-00195 | [1] | GEAR 2-SUN | |
| 9-8. | XKAQ-00196 | [1] | RING 2-SNAP | |
| 10. | XKAQ-00197 | [1] | CARRIER ASSY-NO.1 | |
| 10. | XKAQ-00400 | [1] | CARRIER 1 ASSY | |
| 10-1. | XKAQ-00198 | [1] | CARRIER 1 | |
| 10-2. | XKAQ-00199 | [3] | GEAR 1-PLANETARY | |
| 10-3. | XKAQ-00200 | [3] | BEARING-NEEDLE | |
| 10-4. | XKAQ-00201 | [6] | WASHER-THRUST NO.1 | |
| 10-4. | XKAQ-00395 | [6] | WASHER 1-THRUST | |
| 10-5. | XKAQ-00202 | [3] | PIN 1 | |
| 11. | XKAQ-00203 | [1] | GEAR 1-SUN | |
| 12. | XKAQ-00204 | [3] | PLUG | |
| 13. | XKAQ-00205 | [4] | PIN-LOCK | |
| 14. | XKAQ-00206 | [1] | GEAR-RING | |
| 14. | XKAQ-00762 | [1] | GEAR-RING | |
| 15. | XKAQ-00207 | [24] | BOLT-WRENCH | |
| 16. | XKAQ-00208 | [1] | RING-THRUST | |
| 17. | XKAQ-00209 | [1] | COVER | |
| 18. | XKAQ-00210 | [AR] | RING 2-THRUST | |
| 19. | XKAQ-00211 | [16] | BOLT-WRENCH | |
| 20. | XKAQ-00212 | [1] | MOTOR-RING | |
| 21. | XKAQ-00213 | [1] | RING 3-THRUST | |
| 22. | XKAQ-00214 | [1] | PAD | |
| 23. | XKAQ-00215 | [1] | COUPLING | |
| N. | @ | [1] | NOT SUPPLIED PARTS |
1.If I only know the excavator model, but can not offer parts No.,
what should I do ?
If possible, you can send us pictures of old products, nameplate or
the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small
amount), trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24
hours; if not in stock , we will inform you before placing the
order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if
you really found something wrong ,pls provide pictures for us and
we will check. After it is confirmed, pls return to us , we will
offer the correct item.
About company
Excavator parts
Packaging Details:
Our advantage
| 1. Quality and delivery under control. |
| 2. Original packing, neutral packing or customized packing. |
| 3. Our price is very competitive compared with other suppliers'. |
| 4. If you only can supply the part No. No problem, just send thepart no. to me, I will give you the right product. We have a good system about part No |
| 5. More than 10 years of professional manufacture experience. |
| 6. Small order allowed |
|
