| Categories | Fuel Delivery Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW5869 |
| Certification: | CCC,ISO,BV,SGS |
| Place of Origin: | Suizhou, China |
| MOQ: | 1 Unit |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Unit/Month |
| Delivery Time: | 35 Days |
| Packaging Details: | Naked packing,Ro-ro,Bulk Ship |
| Chassis Brand: | FAW, Howo, Dongfeng, Isuzu, Foton, JAC, etc. |
| Gearbox: | 7 Forward & 1 Reverse Gear |
| Tanker Volume: | 10m3, 15m3, 17m3, 18m3, 19m3, 20m3, etc. |
| Tank Material: | Carbon Steel, Stainless Steel or Aluminum Alloy |
| Tank Shape: | Square Round, Round |
| Transport Oil Type: | Diesel, Petrol, Gasoline, Oil, etc. |
| Oil Pump: | Chinese Famous Brand |
| Oil Dispenser: | Chinese Famous Brand |
| Oil Vapor Recovery System: | Optional |
| Color: | Customized |
| Warranty: | 1 Year |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

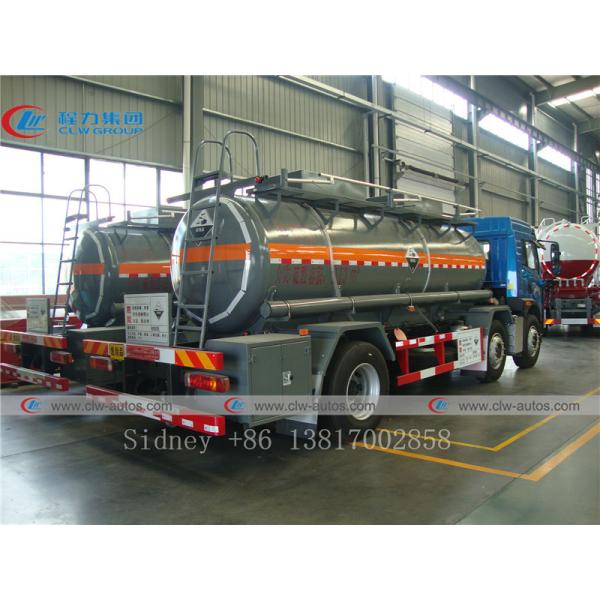

FAW 6X2 Chemical Transport Truck Sulfuric Acid Transport Truck chinese new fuel chemical tank truck
Description
1. Tank material: we can provide carbon steel tanks, stainless
steel tanks, manganese steel tanks, aluminum tanks, steel with
plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic
vertical welding techniques and head arc butt welding technology,
as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection
devices, to provide full closure remote manipulation of materials
handing functions. Equip separators [Baffle] to prevent surging of
liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil,
heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic
soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical
pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round,
round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax
controled oiling machine with accurate figure of volume, sum of
money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge
valve at rail or side of tank body, compartment quantity according
to the demand.
Specification
| Description | 6x2 Chemical transport truck sulfuric acid transport truck | ||
| Condition | New condition/LHD&RHD | ||
| Chassis | Curb weight(kg) | 9890 | |
| G.V.W.(kg) | 25000 | ||
| Wheelbase(mm) | 1860+4140 | ||
| Dimensions(mm) | 9650×2490×3100 | ||
| Overhang (front/rear) (mm) | 1272/2378 | ||
| Wheel track (front/rear) (mm) | 1930/1930/1860 | ||
| Approach/Departure angle(°) | 22/20 | ||
| Axle Load(kg) | 6780/6850/11370 | ||
| Max. driving speed(km/h) | 80 | ||
| Brand | FAW | ||
| Model | CA5250 | ||
| Tire | Number | 8pcs with one spare tire | |
| Specifications | 10.00-20 10.00R20 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Cab | 3 | ||
| Gear box | 7 Forwards & 1 Reverse | ||
| Engine | Model | CA6DF3-22E3F | |
| Displacement(ml) | 7120 | ||
| Power(kw/hp) | 165/224 | ||
| Emission standard | Euro 3 | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tank | Capacity(m³) | 10-15 | |
| Tank material | Q235 carbon steel | ||
Reference Photos
Our Workshop of Chemical liquid tank truck & trailer
Spare parts of Chemical tank truck & trailer
Different Loading Capacities of Fuel Delivery Truck
Different Loading Capacities of Fuel Dispenser Truck
Sales Service
① Pre-sales Service: Communicate with customers, analyze their
needs.
② Sales Service: Provide professional technical solutions,
recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the
EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel dispenser truck I can order from your company?
A: We can supply different size fuel dispenser truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of fuel dispenser Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for fuel dispenser truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. From Shanghai to Wuhan is only
2 hours by airplane. Warmly welcome you to visit us in near future!
|
