Name: 2977752 Engine 1053635 Pump Group Piston Cylinder Liner 2977752 Piston Ring 1053635
Brand: Caterpillar
Price: 1 USD

Home > Machinery Engines & Parts >

297-7752 Engine 1053635 Pump Group Piston Cylinder Liner 2977752 Piston Ring 105-3635

Categories	Excavator Main Hydraulic Pump
Brand Name:	Caterpillar
Model Number:	824G, 824G II, 824H, 825G, 825G II, 825H, 826G, 826G II, 826H, 980G, 980G II, 980H
Certification:	68555435543
Place of Origin:	China
MOQ:	1
Price:	Price negotiation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10
Delivery Time:	3-5
Packaging Details:	box
model OEM:	824G, 824G II, 824H, 825G, 825G II, 825H, 826G, 826G II, 826H, 980G, 980G II, 980H
product name:	1053635 PUMP GP-PISTON Caterpillar parts
cross code:	CA1053635 105-3635 1053635
other name:	Piston Kit
sort:	Cylinder Liner
application:	Engine Parts
applicable:	Excavator Parts
Weight:	XX kg.

Contact Now

Add to Cart

Company Info.

Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1053635 PUMP GP-PISTON Caterpillar parts 824G, 824G II, 824H, 825G, 825G II, 825H, 826G, 826G II, 826H, 980G, 980G II, 980H

Product Description

CA1053635
105-3635
1053635

LANDFILL COMPACTOR 826G 826G II 826H
SOIL COMPACTOR 825G 825G II 825H
WHEEL DOZER 824G 824G II 824H
WHEEL LOADER 980G 980G II 980H Caterpillar

Caterpillar SIS

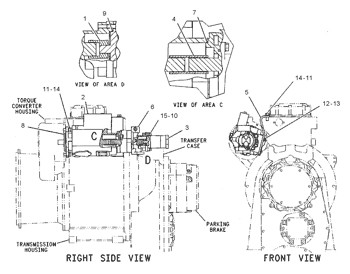

980G Wheel Loader 2KR00001-UP (MACHINE) POWERED BY 3406C Engine » 105-3635 PUMP GP-PISTON

PUMP GP-PISTON

105-3635 PUMP GP-PISTON -STEERING
S/N 2KR1-UP
PART OF 110-8480 PUMP & MTG GP-STEERING & XMSN

Information

Pos.	Part No	Qty	Parts name
1.	6E-4224	[1]	PLUG-SWASHPLATE
2.	033-6036	[1]	SEAL-O-RING
3.	100-3402	[1]	BEARING-SWASH
4.	100-3405	[1]	BEARING-SWASH
5.	6V-8837 M	[3]	BOLT (M6X1X16-MM)
6.	4F-4097	[1]	SEAL-O-RING
7.	3E-4302 M	[2]	SCREW-FLAT HEAD (M4X0.7X10-MM)
8.	100-3404	[1]	COVER-TRUNNION
9.	9T-1636	[1]	SEAT
10.	9T-1710	[1]	POPPET
11.	9T-1699	[1]	SPRING
12.	119-6224	[1]	HEAD-PUMP
13.	457-5223 B	[1]	KIT-SHIM (INCLUDES 17-SHIMS)
14.	6Y-4280	[1]	CONE-BEARING
15.	7T-9755	[1]	CUP-BEARING
16.	9T-9460	[1]	PLATE-VALVE
17.	3E-7417	[2]	PLUG
18.	8T-7876	[2]	SEAL-O-RING
19.	7L-9061	[2]	SEAL-O-RING
20.	100-3413	[1]	GASKET
21.	100-3412 Y	[1]	ROTATING GP-PUMP (STEERING)
22.	100-3409	[1]	SPRING-BIAS
23.	100-3408	[1]	KIT-BIAS PISTON
			(INCLUDES SPRING, ROD, PISTON & SEAL)
24.	002-1212	[1]	CUP-BEARING
25.	2F-8509	[1]	CONE-BEARING
26.	119-6237	[1]	SHAFT-PUMP
27.	122-0563	[1]	HOUSING-PUMP
28.	006-8663	[2]	RING
29.	8T-4750	[2]	SEAL-LIP TYPE
30.	169-3290 Y	[1]	SWASHPLATE GP
31.	100-3415	[1]	KIT-CONTROL PISTON
			(INCLUDES ROD, PISTON & SEAL)
32.	9T-1652	[1]	PIN
33.	8T-0372 M	[1]	BOLT (M12X1.75X90-MM)
34.	8T-8441 M	[2]	BOLT-SOCKET HEAD (M12X1.75X25-MM)
35.	6V-8336 M	[1]	BOLT (M12X1.75X70-MM)
36.	6V-8337 M	[4]	BOLT-SOCKET HEAD (M8X1.25X35-MM)
37.	119-6238 Y	[1]	VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR)
38.	9S-4190	[1]	PLUG-O-RING (7/8-14-THD)
39.	033-6027	[1]	SEAL-O-RING
40.	4H-1440	[2]	PIN-SPRING
41.	8T-5039	[3]	SEAL-O-RING
42.	6V-7673 M	[4]	BOLT (M12X1.75X50-MM)
43.	8C-3089	[1]	SEAL-O-RING
44.	114-9110	[1]	ADAPTER-DRIVE
45.	6E-2943	[1]	PLUG

OEM
