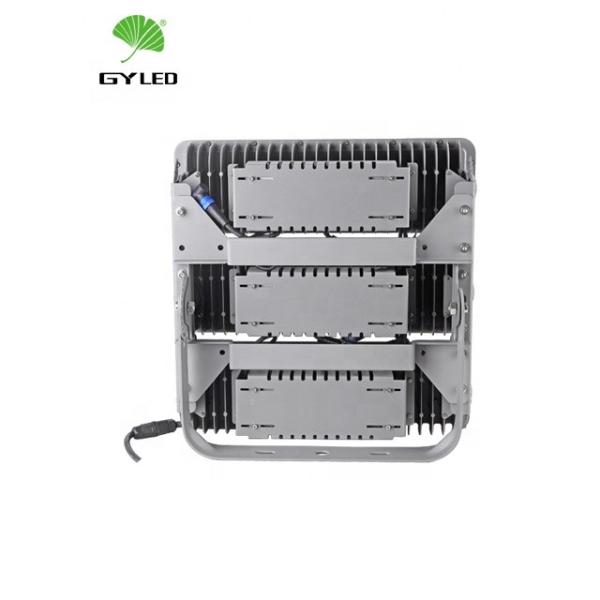

| Categories | LED Stadium Flood Lights |
|---|---|
| Brand Name: | GYLED |
| Model Number: | GY496TG |
| Certification: | CE, ROHS |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200000PCS/YEAR |
| Delivery Time: | 7-10DAYS |
| Packaging Details: | 1PC IN 1CARTON |
| Cri (ra>): | 80 |
| Working lifetime(hour): | 50000 |
| Warranty(year): | 5 |
| Working temperature(℃): | -40 - 50 |
| Ip rating: | IP66 |
| Lamp luminous efficiency(lm/w): | 130LM/W |
| Kelvins | Type | |
| 1,000K | Candlelight Red/Yellow | |
| 1800K | Vintage-look Filament Lamp - Orange | Ultra Warm |
| 2400K | Lamp style used in hospitality | Very Warm |
| 2700K | Conventional Halogen and LED Lamp - Yellow | Warm |
| 3000K | Warm White | |
| 4000K | CFL and LED - White | Cool White |
| 5000K | Daylight | |
| 6000K - 7000K | Cool Daylight | |
| 10,000K | Blue Sky - Blue | |
FIXTURE POWER | LIGHTING EFFICIENCY | LUMINOUS FLUX | POWER FACTOR | BEAM ANGLE(°) | BODY DIMENSIONS | BODY WEIGHT |
| 200W | 130LM/W | 26000LM | >0.95 | 13/30/60/90/120 | 496*156*148mm | 6.3kg |
| 400W | 130LM/W | 52000LM | >0.95 | 13/30/60/90/120 | 496*326*222mm | 13.4kg |
| 600W | 130LM/W | 48000LM | >0.95 | 13/30/60/90/120 | 496*496*222mm | 22.7kg |
| 800W/1000W | 130LM/W | 130000LM | >0.95 | 13/30/60/90/120 | 496*666*222mm | 29.2kg |
High Thickness Rotating Bracket
• High Thickness Bracket
• Double security support with standard high wind speed
• 360° Rotating to suit for multi-application purposes
Top Quality LED Driver
• Guarantee a Long Operation Life
• 6KV Surge Protection
• IP65 Waterproof
Rotatable bracket
Optional Rotatable bracket can be adjusted horizontal plane angle
when you mounted a lamp.
LED floodlight is widely used in:
Outdoor lighting
Architectural lighting
Storage spaces
Golf courses
Landscape lighting
High mast lighting
Gym lighting
Storage warehouse lighting
Façade lighting
Tunnel lighting
Square, Park, Wall of buildings, Church, Hotel, Bridge, Tree,
Public areas, etc.
LED FLOODLIGHT INSTALLATION METHODS:
a. Screw off the butterfly nut, remove the bolt, then the u-bracket
will rotate easily.
b. Adjust the light projection direction to the suitable position.
c. Pass the bolts through the u-bracket hole and dial hole at the
same time and tighten the butterfly nut so that the u-bracket does
not loosen, as shown in figure 3;
If there need to adjust the projection direction of a single
module, please follow these steps:
a. Remove (1) screw with a cross screwdriver;
b. Loosen the (2) screw with a hex wrench;
c. Rotate the module to the right position, Module Angle adjustment
range: -30°~30°;
d. Tighten the (1) screw and (2) screw, as shown in figure 4.
e. After checking, power on.
|
