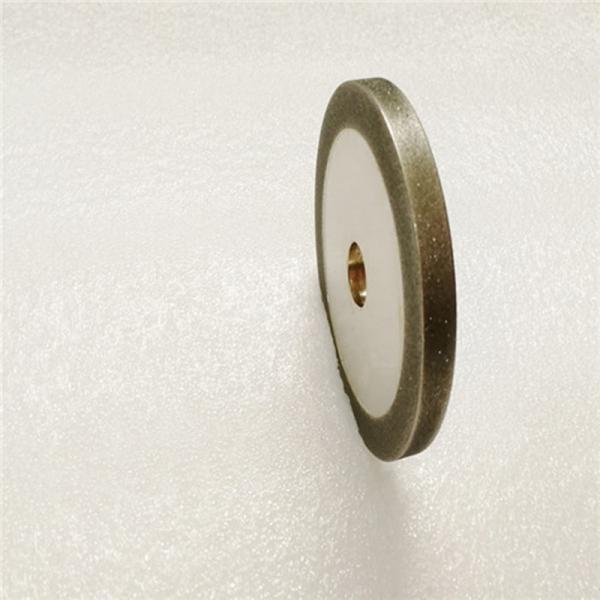

15mm Electroplated Diamond Tools , Nickle Abrasive Grinding Wheels

High Quality Electroplated CBN Grinding Wheel Suitable For Band Saw Grinding

Electroplated CBN Wheel type: TYDD-wheel-004

Product Name: Electoplated diamond grinding wheel, Electroplating parallel grinding wheel

Material: high quality Diamond Particle

Matrix material: 45# high carbon steel

Application fields: Widely used in different type of machines for grinding.

Brief Introduction of Electroplated Diamond Wheels:

Electroplated grinding wheel has the advantages of high gripping strength, long service life and less wear, which makes the electroplated grinding wheel give full play to its wear resistance and strong cutting ability in high-speed and ultra-high-speed high-efficiency and high-precision grinding, especially in hard, brittle and difficult to machine materials. Electroplated grinding wheel has been applied in almost all sectors of industry, such as aerospace, mold manufacturing, semiconductor manufacturing, optical processing manufacturing, etc. At present, ceramic materials, optical materials, aero-engine turbine blades, silicon products are mostly polished by electroplated grinding wheel.

Electroplated grinding wheel is a kind of super hard abrasive wheel. Compared with common bond grinding wheel, electroplated grinding wheel has obvious characteristics and advantages

1. The hardness of electroplated bond determines the main characteristics of electroplated grinding wheel, which can efficiently grind hard to machine materials such as cemented carbide, glass, ceramics, etc., and the grinding tool has the longest service life.

2. Electroplating has high anti-wear property, the less wear of the grinding wheel, the longer the service time. In the grinding process, the size, shape and morphology of the electroplating abrasive particles change little, which is more suitable for high-precision processing, and the production efficiency is high. The electroplating grinding wheel is a tool that can meet the requirements of high-efficiency and precision processing at the same time.

3. After dressing, the electroplated grinding wheel can keep the micro edge of the abrasive particles for a long time, and the good cutting performance ensures the small grinding force in the grinding process, so as to reduce the grinding power and save energy.

4. The thermal conductivity of electroplating is very good, which is conducive to the evacuation of heat, and avoids the phenomenon of workpiece burn, crack and falling block, which greatly improves the quality of workpiece surface processing.

1. Sketch map of our diamond abrasive wheel

D: out diameter

H: inner diameter

T: thicknesss

X: abrasive area width

2. Detail size matching of our normal grinding wheels.

We accept customed special sizes from client, prefer quantity not less than 10pieces.

Remarks: above constructions are are regular type, we can make special sizes for client's requirements.

3. More Pictures of our diamond wheel

4. Character of our grinding wheels

• High wear resistance
• Long processing life
• Sharp with high abbrasive efficiency
• Wide range of processing applications.

5. Our Operating Procedure

Over 15 years of developing and producing experience in high precision super hard material tools, we have

established a high efficiency system to provide stable performance wheel products.

We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel

type and quotatioon to you, if possible, better for you to provide us more information like followings:

1. Yr processing objects.

2. Yr OD, ID, Thickness data.

3. Grit size if possible.

4. Rotary speed of your processing machine.

Many Thanks.
