| Categories | Hydraulic Piston Motor |
|---|---|
| Brand Name: | Helm Tower Hydraulic |
| Model Number: | MCR5 |
| Certification: | ISO9001 |
| Place of Origin: | Ningbo,China |
| MOQ: | 1 |
| Payment Terms: | L/C |
| Supply Ability: | 450 sets per month |
| Delivery Time: | 10days |
| Packaging Details: | wooden case |
| Warranty: | 1 year |
| Color: | Follow customer's requirement |
| Pressure: | High Pressure |
| Delivery time: | 5-7 days |
| Package: | Wooden case |
| Rated pressure: | 25 Mpa |
| Max pressure: | 31.5 Mpa |
| Certificate: | ISO9001:2008 |
| Application: | Agriculture/Engineering/Coal mining/Marine /Construction Machinery |
| Company Info. |
| Ningbo Helm Tower Noda Hydraulic Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

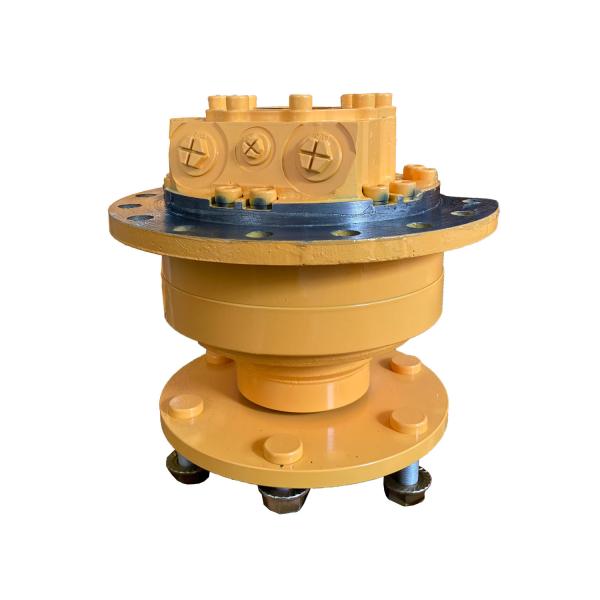

Rexroth MCR05 Drive Radial Piston Wheel Hydraulic Motor
Product Features:
MCR05 Hydraulic Wheel Motor:
1) Incurve radial piston type.
2) Designed in control modules, combine freely.
3) High efficiency, High pressure, low noise.
4) Radial piston, Low speed, High torque.
5) Application:
Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Engineering Machinery: Skid Steer Loader, Break Machine.
| Code | MCR05 | |||
| Displacement Group | 8 | 0 | 1 | 2 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 |
| Theoretical torque at 10 MPa(N.m) | 604 | 747 | 826 | 890 |
| Rated speed(r/min) | 160 | 125 | 125 | 125 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 1240 | 1540 | 1700 | 1850 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 1540 | 1900 | 2100 | 2290 |
| Speed range(r/min) | 0-475 | 0-385 | 0-350 | 0-320 |
| Max power(kW) | 29 | |||
| Code | MCRE05 | |||
| 0Displacement Group | 9 | 0 | 1 | 2 |
| Displacement(ml/r) | 620 | 680 | 750 | 820 |
| Theoretical torque at 10MPa(N.m) | 985 | 1080 | 1192 | 1302 |
| Rated speed(r/min) | 125 | 100 | 100 | 100 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 2030 | 2230 | 2460 | 2690 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 2510 | 2750 | 3040 | 3320 |
| Speed range(r/min) | 0-290 | 0-265 | 0-240 | 0-220 |
| Max power(kW) | 35 | |||
A: Manufacturer
Q: Your payment?
A: 100% TT in advance
Q: Your minmun order quantity(MOQ)?
A: 1 set
Q: Warranty time for motor?
A: 1 year
If you have another question, pls feel free to contact us as below:
Zoe Zhu Whatsapp/Phone +86 13906844199
|
