XCMG Brand new 30 Tons 6x4 T-Series LHD 380HP tri axle dump truck

Categories Heavy Duty Dump Truck
Brand Name: XCMG
Model Number: XGA3250D2KC
Certification: CCC,ISO
Place of Origin: China
MOQ: 1unit
Price: USD38,500.00-USD40,000.00 per unit
Payment Terms: 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
Supply Ability: 3000units/month
Delivery Time: 30-45 days
Packaging Details: Nude packing after painted wax
Loading capacity: 20-30 tons
Drive wheel: 6x4
Engine capacity: > 8L
Fuel type: Diesel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

XCMG Brand new 30 Tons 6x4 T-Series LHD 380HP tri axle dump truck

XCMG Brand New 30 Tons T-Series LHD 380HP Tri Axle Dump Truck


整机型号/Vehicle ModelXGA3250D2KC

设计质量参数

/Mass parameter

整备质量/Curb weight15160kg
最大允许总质量/GVW41500kg

/Performances

最高车速/Max Speed79km/h
最小转弯直径/Min. turning diameter17m
最大爬坡度(≥)/Grade ability39%
最大驻坡度(≥)/Hill-hold ability20%
百公里油耗/Fuel Consumption40L
油箱容积/Fuel Tank400L

/Dimensions

外形尺寸

/Overall dimensions

长/Length8625mm
宽/Width2550mm
高/Height3450mm
轴距 /Wheelbase3850+1350mm

轮距

/Wheel track

前轮/Front tire2060mm
后轮/Rear tire1860mm
最小离地间隙/Min.Clearance281mm
接近角/Approach angle25°
离去角/Departure angle20°
前悬/Front overhang1485mm
后悬/Rear overhang1940mm
货厢尺寸/Cargo size5800×2300×1500mm

驾驶室

/Cab

型号/ModelT3BM
乘员人数/Passengers2

发动机

/Engine

型号/ModelWD615.47
总排量/Displacement9.726L
额定功率/Output power273kW
最大扭矩/Max torque speed1500/1100-1600Nm/(r/min)

离合器

/Clutch

型号/Model

Φ430拉式膜片弹簧离合器

/Pull type diaphragm spring clutch

操纵方式/Operation

液压操纵气助力

/Hydraulic manual

变速器/Transmission型号/Model9JSD150A
操纵方式/Operation软轴/Flexible shaft
前进档速比/Forward ratio12.57/8.39/6.15/4.59/3.4/2.47/1.81/1.35/1.00
倒档速比/Reverse ratio13.14

驱动桥

/Driven axle

型号/Model16T
主减速器速比/Ratio5.73
制动器类型/Brake type鼓式/Drum type
差速锁/Differential lock

轴间,轮间差速锁

/Differential lock between axles and wheels

前轴

/Front axle

型号/Capacity9.5t
制动器类型/Brake type鼓式/Drum type

车轮

/Wheel

轮辋/Rim9.75×22.5/8.50V-20
轮胎/Tire13R22.5-18PR/12.00R20-18PR

车架

/Frame

型式/Type

前部加宽的梯形结构,纵梁为槽形断面

/Trapezoid structure with widened front, and longitudinal beam with groove section

主纵梁截面/Main beam320×90×8mm
衬梁截面/Auxiliary beam304×90×8mm

车架总成宽度

/Width of chassis structure

前Front 940mm;后rear850mm

悬架

/Suspension

前/Front型式/Type纵置多片簧/Multi-spring

钢板弹簧片数

/Amount of spring plate

10
后/Rear型式/Type纵置多片簧/Multi-spring

钢板弹簧片数

/Amount of spring plate

13

转向系

/Steering System

转向器型式/型号/Steering type

Φ120/循环球式液压助力

/Circulating ball type hydraulic power

转向器速比/Ratio23.27
转向油泵最大压力/Max pressure of pump15MPa

制动系

/Brake System

额定工作压力/Rated working pressure1MPa
行车制动系型式/Driving brake双回路气压制动/Dual circuit pneumatic braking
驻车制动系型式/Parking brake弹簧储能断气制动/Spring energy storage air brake
辅助制动系型式/Assistant brake发动机排气制动/Engine exhaust brake

电气系

/Electric System

电压/Voltage24V
发电机功率/Generator power2.2kW

蓄电池电压/电容

/Battery voltage and Capacitance

2×12 V/165Ah

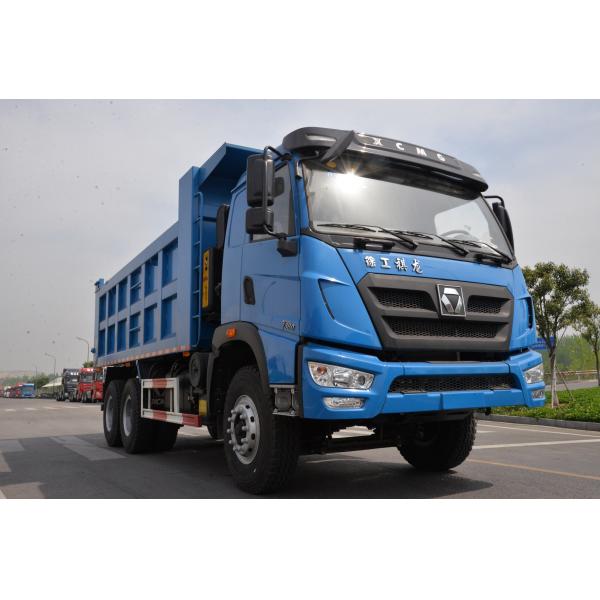

Dump truck

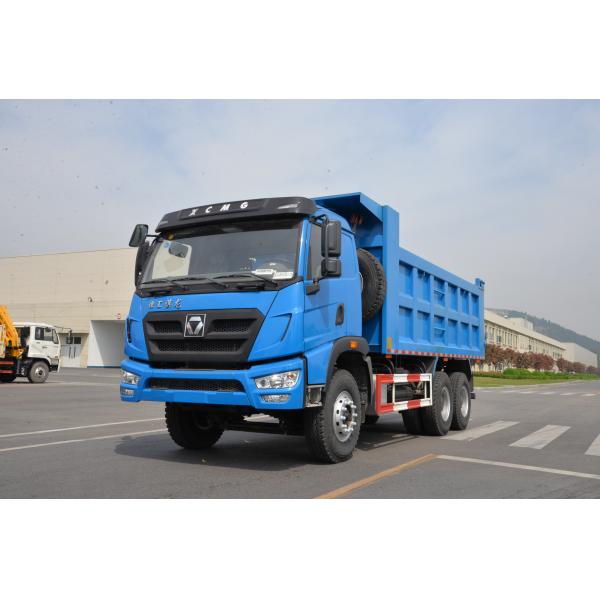

Tipper truck

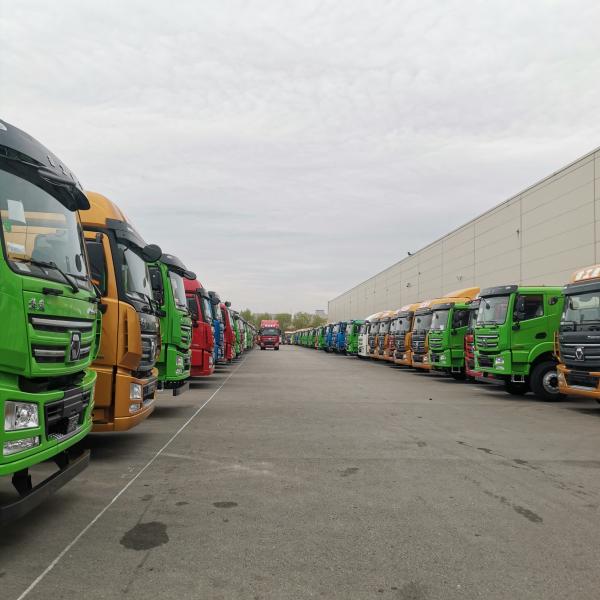

dumper truck
