45 90 180 Degree Steel Pipe Elbow SCH40 SCH80 SCH160 Black Seamless Welded Bend

45 Degree/90 Degree/180 Degree Elbow, Long Radius/Short Radius Elbow

Place of Origin:China

Steel Elbow

The elbow is bent with a complete set of bending equipment, which is divided into two processes: cold simmering and hot pushing.No matter what kind of machine equipment and pipeline, most of the use of elbow, mainly used for oil, gas, infusion, engineering bridge construction.Our pipe caps are made of carbon steel,stainless steel and alloy steel,etc.They feature high strength,good toughness,and high resistance to corrosion,and vibration.

Material:

Carbon steel: ASTM/ASME A234 WPB WPC.

Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911.

Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N.

ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti.

ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H.

Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6.

High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70.

• Size
  • Bending radius: R=1D~10D
  • Seamless elbow: 1/2″～24″ DN15～DN600
  • Welded Elbow: 4″～72″ DN150～DN1800
  • Wall Thinkness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
  • Maximum thickness: 120mm

• Standards:

ASTM A234 WPB, ASME B16.9,MSS SP-43,DIN 2617,JIS B2313 ,GB/T12459,GB/T13401,SH3408,SH3409,HG/T21635,HG/T21631

• Process of manufacturing

•Specification

Chemical Composition Requirements of ASTM A105

Mechanical Properties of ASTM A105

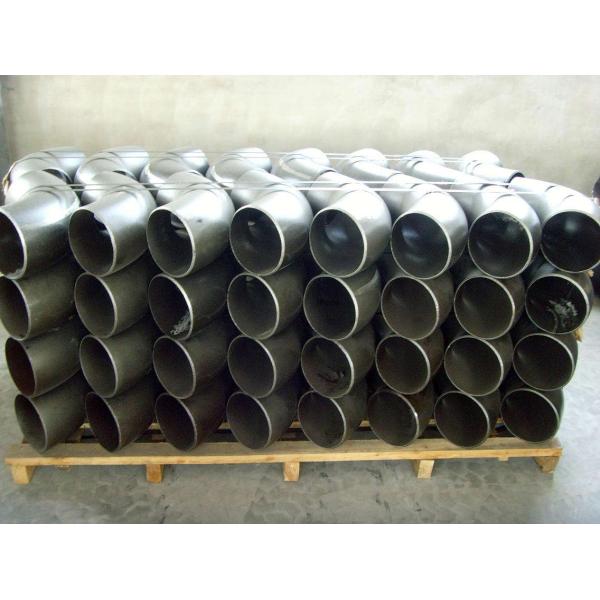

• PACKAGE

Wooden case or wooden pallets or as customer's request....

Contact Person : Aimee Zhang

Mp: +86 18031772048

Skype: hbxf-flange21

QQ: 2392016719

Wechat / whats up : 0086-18031772048

Email : info1@hbxfgj.com

Established in 1989, HEBEI XINFENG HIGH PRESSURE FLANGE AND PIPE FITTING CO., LTD (XINFENG) specializes in the manufacture of flanges, butt weld pipe fittings in standard as well as special parts and forgings according to customer drawings.Located in Mengcun Hui Nationality Autonomous Region, known as the base for manufacture of elbows and pipe fittings in China, XINFENG enjoys a pleasant environment and convenient transportation, with Beijing and Tianjin city to the north and the Bohai Sea to the east.

　　Covering an area of 120000 square meters, equipped with advanced production lines and inspection instruments, XINFENG now has become one of the biggest flange and pipe manufactures in Hebei Pro., China, with an annual capacity of 14000 tons. Its main production equipment includes forging hammers, ring-rolling machine, lathes, drillers, pushing machine, presses, shot blasting machine etc. for the production of flanges, elbows, tees, reducers and caps at different size range. Materials available are carbon steel, stainless steel and alloy steel. XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI，DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. Being a ISO 9001 & PED 97/23/CE certified company ,XINFENG follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.

　　XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversea markets, exported far to South Korea, Russia, countries and regions in Middle East, Southeast Asia, South America and West Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.

　　With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.
