31QB-18160 R520-9 Swing Motor 38QB-11101 R480-9 Hyundai Excavator Spare Parts

31QB-18160 R520-9 Swing Motor 38QB-11101 R480-9 Hyundai Excavator Spare Parts

31QB-18160 R520-9 Swing Motor 38QB-11101 R480-9 Hyundai Excavator Spare Parts
31QB-18160 R520-9 Swing Motor 38QB-11101 R480-9 Hyundai Excavator Spare Parts
Categories Swing Reduction Gear
Brand Name: PNC
Model Number: Hitachi Excavator
Place of Origin: Made in china
MOQ: 1PC
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Delivery Time: 1-3 working days
Packaging Details: Wooden box
Machine: Crawler Excavator
Model: R480LC9, R480LC9S, R520LC9, R520LC9S
Part No.: 31QB-18160 LH, 38QB-11101 RH
Quality: Hyundai genuine
Stock: lots of stock
Weight: 70-80kgs
Warranty: 6 months
Product name: R480-9 Swing Motor Unit, R520-9 Swing Motor
Contact Now
Company Info.
PNC EXCAVATOR PARTS CO., LIMITED
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

31QB-18160 R520-9 Swing Motor 38QB-11101 R480-9 Hyundai Excavator Spare Parts

31QB-18160 R520-9 Swing Motor 38QB-11101 R480-9 Hyundai Excavator Spare Parts

Description

 R480-9 Swing Motor Unit, R520-9 Swing Motor, Hyundai Swing Motor Unit

Application

Hyundai Excavator

Model

R480LC9, R480LC9S, R520LC9, R520LC9S

Part No.

31QB-18160 LH, 38QB-11101 RH

Quality

Hyundai genuine

Weight

70-80kgs

Packing

Pack into wooden case

MOQ

1PC

Lead time

About 1-3 working days

Payment

TT, Western union, Paypal, Paysend, RMB

Warranty

3 Months

Shipping Port

Huangpu Old Port, Shenzhen Yantian,Guangzhou

Compatible models:
9-SERIES CRAWLER EXCAVATOR R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S Hyundai

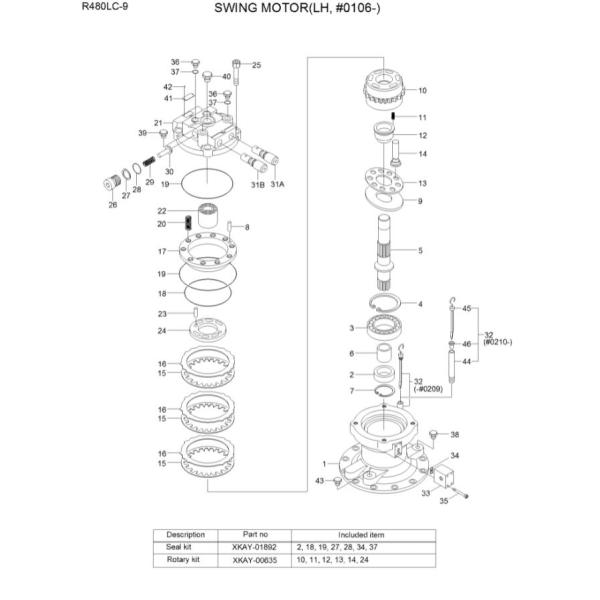

Parts on group R480-9 swing motor (type 1):

Pos. Part No Qty Parts name Comments
*. 31QB-18250 [1] SWING MOTOR ASSY-LH LH
*. 31QB-18251 [1] SWING MOTOR ASSY-LH LH
*. 31QB-18251SG8 [1] SWING MOTOR ASSY LH
*-1. 31QB-18160 [1] SWING MOTOR UNIT-LH LH
*-1. 31QB-18160AR [1] SWING MOTOR LH
1. XKAY-01882 [1] BODY
1. XKAY-02096 [1] BODY
K2. XKAY-00521 [1] SEAL-OIL
3. XKAY-00522 [1] BEARING-ROLLER
4. XKAY-00523 [1] RING-SNAP
5. XKAY-01317 [1] SHAFT
5. XKAY-02248 [1] SHAFT
6. XKAY-00525 [1] BUSHING
7. XKAY-00526 [1] RING-STOP
8. XKAY-00625 [1] PIN
9. XKAY-00527 [1] PLATE-SHOE
A. XKAY-00635 [1] ROTARY KIT
A. XKAY-02162 [1] ROTARY KIT
A-A. XKAY-01893 [1] CYLINDER BLOCK KIT
A-A. XKAY-02163 [1] CYLINDER BLOCK KIT
N10. XKAY-01511 [1] BLOCK-CYLINDER
N10. XKAY-02164 [1] BLOCK-CYLINDER
N11. XKAY-00531 [9] SPRING
24. XKAY-00544 [1] PLATE-VALVE
A-B. XKAY-00532 [1] RETAINER KIT
N12. XKAY-00533 [1] GUIDE-BALL
N13. XKAY-00534 [1] PLATE-SET
A-C. XKAY-00535 [1] PISTON KIT
N14. XKAY-00536 [9] PISTON ASSY
15. XKAY-00537 [3] PLATE-FRICTION
16. XKAY-00538 [3] PLATE
17. XKAY-00632 [1] PISTON-BRAKE
K18. XKAY-00468 [1] O-RING
K19. XKAY-00540 [2] O-RING
20. XKAY-00541 [20] SPRING
21. XKAY-01888 [1] COVER-REAR
22. XKAY-00543 [1] BEARING-NEEDLE
23. XKAY-00382 [2] PIN
23. XKAY-02166 [2] PIN
25. XKAY-00546 [4] BOLT-WRENCH
26. XKAY-00309 [2] PLUG
K27. XKAY-00141 [2] RING-BACK UP
K28. XKAY-00310 [2] O-RING
29. XKAY-00311 [2] SPRING
30. XKAY-00312 [2] CHECK
31A. XKAY-01475 [1] RELIEF VALVE ASSY
31B. XKAY-01476 [1] RELIEF VALVE ASSY
32. XKAY-00638 [1] LEVEL GAUGE
32-1. XKAY-02139 [1] BAR-GAUGE NOT SHOWN
32. XKAY-02249 [1] GAUGE-LEVEL
44. XKAY-02168 [1] LEVEL GAUGE PIPE
45. XKAY-02251 [1] LEVEL GAUGE BAR
46. XKAY-01988 [1] PLUG
33. XKAY-01889 [1] BLOCK
K34. XKAY-01902 [2] O-RING
35. XKAY-01890 [3] BOLT-WRENCH
36. XKAY-00150 [3] PLUG
K37. XKAY-00151 [3] O-RING
38. XKAY-00140 [2] PLUG
39. XKAY-00975 [1] PLUG
40. XKAY-00548 [1] PLUG
41. XKAY-01891 [1] NAME PLATE
41. XKAY-02250 [1] NAME PLATE
42. XKAY-00277 [2] RIVET
43. XKAY-01219 [1] PLUG
*-2. @ [1] SWING REDUCTION GEAR SEE 4110
K. XKAY-01892 [1] SEAL KIT SEE ILLUST
N. @ [1] NOT SUPPLIED PARTS

Parts on group R480-9 swing motor (type 2)

Pos. Part No Qty Parts name Comments
*. 38QB-10150 [1] SWING MOTOR ASSY
*. 38QB-10151 [1] SWING MOTOR ASSY
*. 38QB-10152 [1] SWING MOTOR ASSY
*-1. 38QB-11100 [1] SWING MOTOR
*-1. 38QB-11101 [1] SWING MOTOR
1. 39Q6-11110 [1] CASING
K2. 39Q6-11660 [1] SEAL-OIL
3. 39Q6-11120 [1] SHAFT
4. S601-040004 [1] RING-SNAP
5. 39Q6-11130 [1] BEARING-ROLLER
6. 39Q6-11140 [1] BEARING-NEEDLE
7. 39Q6-11150 [1] PLATE-SWASH
K8. 39Q6-11180 [1] BLOCK-CYLINDER
K9. 39Q6-41290 [9] SPRING
K10. 39Q6-11200 [1] GUIDE-BALL
K11. 39Q6-11210 [1] PLATE-RETAINER
K12. 39Q6-11220 [9] PISTON ASSY
13. 39Q6-41361 [4] PLATE-FRICTION
14. 39Q6-41370 [4] PLATE-SEPARATED
15. 39Q6-11250 [1] PISTON-PARKING
16. 39Q6-11260 [26] SPRING-BRAKE
17. S471-800454 [1] PIN-SPRING
K18. Y172-043004 [1] O-RING
K19. Y172-041004 [1] O-RING
20. 39QB-11270 [1] PLATE-VALVE
21. S471-800254 [2] PIN-SPRING
K22. Y172-042004 [1] O-RING
23. 39Q6-11281 [1] CASING A-VALVE
24. 39Q6-11290 [2] VALVE-CHECK
25. 39Q6-11300 [2] SPRING-CHECK VALVE
26. 39Q6-11671 [2] PLUG
K27. S631-040004 [2] O-RING
28. 39Q6-41750 [3] PLUG
K29. S631-011004 [3] O-RING
30. 39QB-11311 [2] RELIEF VALVE ASSY
31. 39Q6-11420 [2] REACTIONLESS VLV ASSY
32. 39Q6-11500 [2] PLUG
K33. S631-012004 [2] O-RING
K34. S631-018004 [2] O-RING
35. 39Q6-11510 [1] VALVE ASSY-TIME DELAY
36. 39Q6-11600 [1] GAUGE-LEVEL
36. 39Q6-11601 [1] GAUGE-LEVEL
37. S109-180456 [2] BOLT-SOCKET
38. S109-180556 [4] BOLT-SOCKET
39. P220-430202 [1] PLUG-HEX
40. 38QB-11651 [1] NAME PLATE
40. 38QB-11652 [1] NAME PLATE
41. 39Q6-41800 [2] RIVET
*-2. @ [1] SWING REDUCTION GEAR SEE 4115
K. 39Q6-11160 [1] ROTARY KIT SEE ILLUST
K. 39Q6-11170 [1] CYLINDER BLOCK KIT SEE ILLUST
K. 39Q6-11190 [1] RETAINER KIT SEE ILLUST
K. 39Q6-11660 [1] SEAL-OIL SEE ILLUST

Warranty Statement:

1. Warranty Type: We will replace the product which have quality problem.


2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival.

Contact with us and offer the data, photos of the problem items

3. You need to pay for the replacement charge for following condition:

* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation, improper use.
* The machine and reducer work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.


FAQ :

Q1: How can i make payment ?

A : Bank transfer, Western union, Paypal, Paysend, or RMB.
bank transfer take 2-3days, while order will be arranged once received the remittance copy.

Q2: How fast you can do shipment?

A: Stock items take 1-2days, no stock items 5-7 working days. It depends on the items and the quantity of your order. We will try best to ship goods on time,

won't let you and your client down.

Q3: If we dont find what we want on your website, what should we do?

A: talk with us directly on whatsapp, email, wechat, or phone, we will check inquirys asap. excavator parts have thousands kinds, it's not possible to post

all production online.

Q4. Do your product been tested before delivery?

A: Yes, all product been tested to make sure they are qualified to sell.

Q5: Can we buy 1 pc of each item for quality testing?
A: Yes, we value every customer, no matter order amount small or big, with grateful for your trust.
