Aerial Self Supporting Non Armored GYTC8Y GYXTC8Y Figure 8 Fiber Cable

Categories	Figure 8 Fiber Optic Cable
Brand Name:	JQ/OEM
Model Number:	GYTC8Y/GYXTC8Y
Certification:	ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin:	Guangzhou,China
MOQ:	1km
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	4500KM Per Month
Delivery Time:	5-8 work days
Packaging Details:	wooden drum
Fiber type:	YOFC/Fiberhome or as request
Color:	Black
Messenger wire:	7*1.0mm stranded steel wire
Structure:	Figure 8
Type:	Singlemode
Jacket:	PE
Oem:	Available
Installation:	Outdoor Aerial Self-supporting
Product name:	Figure 8 cable
Length:	2km or customized length
Fiber count:	4-144 Core

Contact Now

Add to Cart

Company Info.

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

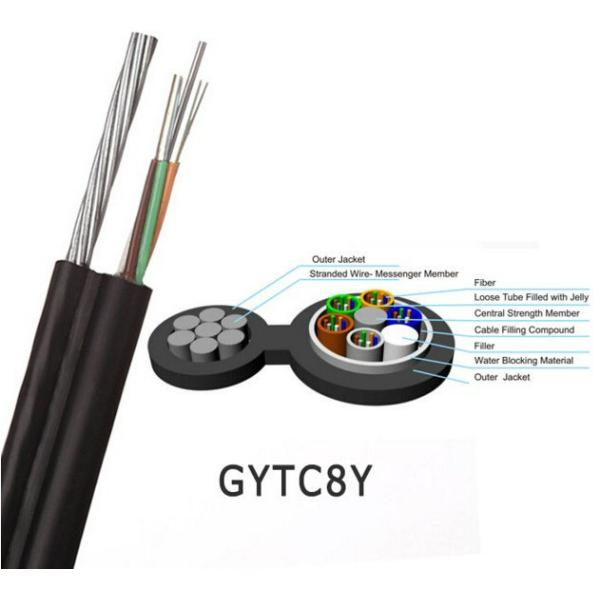

Figure 8 Aerial Self-Supporting Non-Armored Fiber Optic Cable GYTC8Y/GYXTC8Y

Features

Fiber:4-144 fibers
Uni-loose tube gel-filled

Loose tube gel-filled construction for superior fiber protection.

Non-Armored

OuterJacket

Black UV-and moisture-resistant polyethylene (PE) UV and moisture-resistant design
Self-supporting Figure 8 design

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Picture Show

Packing & Delivery

Packaing detail:

1km/ 2km/3km/4km/5km per wooden drum

Shipping:

By sea/by air or express delivery,it depends on the order quantity

Lead time:

Quantity(km)	1-300	Above 300
Earliest time(day)	5-7	Negotiable
