TQ340-35Y Drill Spare Parts Hydraulic Casing Power Tong For Oilfield

Categories Drill Spare Parts
Brand Name: TR Solids Control
Model Number: TRZQ, TRTQ
Certification: API Certificate, ISO Certificate
Place of Origin: Xi'an China
MOQ: 1 pc
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 pcs per month
Delivery Time: 10 days
Packaging Details: Pallet or wooden case
Model: ZQ203-100
Size rang(mm): 121-203
Size rang(in): 31/2 coupling -8body
Max.torque: 100kN.M
Overall dimensions(mm): 1700 *1000 *1400
Weight(kg): 2400
Package: Wooden case
Color: Red, yellow, blue
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

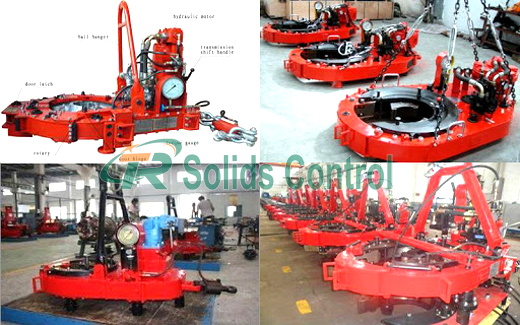

TQ340-35Y Drill Spare Parts Hydraulic Casing Power Tong For Oilfield

TQ340-35Y Hydraulic Casing Power Tong for Oilfield


Product Introduction


Hydraulic Power Tong is also called the Drill Pipe Power Tong, Our ZQ series drill pipe power tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and workover operations. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment.


Our TQ series of Casing Tongs are widely used for making up or breaking out pipes or casings in diameters of 4 1/2~13 3/8 inch. The tong heads are designed 'open'type and can freely clamp and escope from the casing.


Product Features of Hydraulic Casing Power Tong


  • The casing tong features high-efficiency, safety, reliability, labor-saving, and can ensure connection quality.
  • Tong head is designed as open and is fitted with two jaws which can ensure reliable gripping.
  • Air tyre clutch is utilized as gearshifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds.
  • Heads are designed “open” type and can freely clamp and escape from the casing. It is safe, reliable and easy to handle with high mobility.
  • Can be connected to computer controlling units and can serve as ideal well mechanical tools for surface operation.
  • The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K.

Technical Data of Hydraulic Casing Power Tong


ModelZQ203-125ZQ203-100ZQ203-100AZQ203-100BZQ162-50ZQ127-25
Size
rang
mm127-203121-203121-203121-20385-16265-127
in31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
23/8
coupling
-5body
23/8
coupling-31/2body
Max.torquekN.M1251001001005025
ft.lbf922007375073750737503688018440
Speed of tong Hi.rpm404040406065
Speed of tong To.rpm2.72.72.72.74.110.5
Hydraulic system pressure ratiginMpa2016.616.616.61612
Psi290024002400240023201740
Hydraulic system pressure ratiginL/min114114114114120180
gpm303030303248
Stoke of shifting cylindermm150015001500/10001000
in595959/39.439.4
Moving distance of tongmm///0-3000//
in0-59
Lifting diatance of tongmm//0-4850-1800//
in0-190-31.5
Overall dimensionsmm1720
*1050
*1750
1700
*1000
*1400
1700*
1000
*1400
1750*
1650
*2050
1570*
800
*1190
1110*
790
*820
in68*
41*69
67*
39*55
67*
39*55
69*
65*81
62*
31*47
44*
31*32
WeightKg26002400250032501500620


Xi'An TianRui Petroleum Machinery Equipment Company Limited engages in solid control equipment and drilling waste management, oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
