API XQ89/3YC Drill Spare Parts Hydraulic Workover Drilling Rig Tongs

Categories Drill Spare Parts
Brand Name: TR Solids Control
Model Number: TRZQ, TRTQ, TRXQ
Certification: API Certificate, ISO Certificate
Place of Origin: Xi'an China
MOQ: 1 pc
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 pcs per month
Delivery Time: 10 days
Packaging Details: Pallet or wooden case
Size: 2 3/8"~4 1/2"
Package: Wooden case
Color: Red, yellow, blue
Application: Oilfield Drilling
Advantage: High Performance
High Gear Rotation Speed: 72-90 rpm
Low Gear Rotation Speed: 14-30 rpm
Pressure: 10/11/12Mpa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

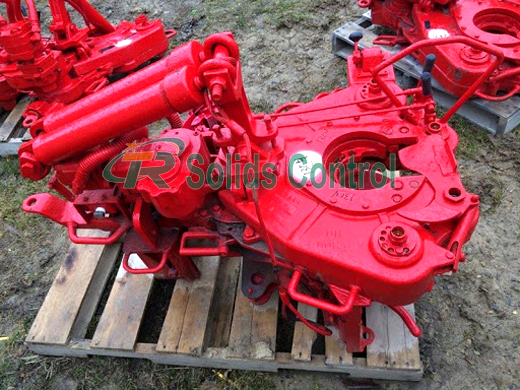

API XQ89/3YC Drill Spare Parts Hydraulic Workover Drilling Rig Tongs

API Standard XQ89/3YC Workover Hydraulic Power Tong XQ


Product Introduction


Hydraulic Casing Tong is also called Casing Power Tong. Our TQ series casing power tongs are widely used for making-up or breaking-out of casings or pipes. The casing tong features high-efficiency, safety, reliability, labor-saving, and can ensure connection quality. Tong head is designed as open and is fitted with two jaws which can ensure reliable gripping. Air tyre clutch is utilized as gear shifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds. The casing tong has been granted with National Invention Patent. The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K Specification for Drilling Equipment.


This series power tong is used for quick make-up/break-up in well service operations. The tong is equipped with hydraulic backup tong and use inner curved cam to clamp. This series power tong are designed and manufactured according to industrial standard SY/T5074 and API Spec 7k “Specification for Drilling and well servicing Equipment".


Main Advantages of Hydraulic Casing Power Tong


  • Tong head is designed as open and is fitted with two jaws which can ensure reliable gripping.
  • The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K.
  • The casing tong features high-efficiency, safety, reliability, labor-saving, and can ensure connection quality.
  • Air tyre clutch is utilized as gearshifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds.
  • Heads are designed “open” type and can freely clamp and escape from the casing. It is safe, reliable and easy to handle with high mobility.
  • Can be connected to computer controlling units and can serve as ideal well mechanical tools for surface operation.

Parameters of Hydraulic Casing Power Tong


ModelZQ203-125ZQ203-100ZQ203-100AZQ203-100BZQ162-50ZQ127-25
Size
rang
mm127-203121-203121-203121-20385-16265-127
in31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
23/8
coupling
-5body
23/8
coupling-31/2body
Max.torquekN.M1251001001005025
ft.lbf922007375073750737503688018440
Speed of tong Hi.rpm404040406065
Speed of tong To.rpm2.72.72.72.74.110.5
Hydraulic system pressure ratiginMpa2016.616.616.61612
Psi290024002400240023201740
Hydraulic system pressure ratiginL/min114114114114120180
gpm303030303248
Stoke of shifting cylindermm150015001500/10001000
in595959/39.439.4
Moving distance of tongmm///0-3000//
in0-59
Lifting diatance of tongmm//0-4850-1800//
in0-190-31.5
Overall dimensionsmm1720
*1050
*1750
1700
*1000
*1400
1700*
1000
*1400
1750*
1650
*2050
1570*
800
*1190
1110*
790
*820
in68*
41*69
67*
39*55
67*
39*55
69*
65*81
62*
31*47
44*
31*32
WeightKg26002400250032501500620


Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city, China. We have the specialized technicians, senior engineers and professional marketing team. The company is committed to develop, manufacture and supply a variety array of oilfield equipments, the main products include : Petroleum equipments & tools such as drilling equipments, solid control equipment, production equipments, tubular goods, wellhead equipments, downhole equipments, well control equipments, cementing tools etc.; Petrochemicals.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
