| Categories | Plunger & Seat |
|---|---|
| Brand Name: | ASEEDER |
| Model Number: | PN-029 |
| Certification: | ISO,TDS,API, ASP9100 |
| Place of Origin: | CHINA |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 6000pcs per months |
| Delivery Time: | 30 working days |
| Packaging Details: | Standard package or to customer's demand |
| Materials: | tungsten carbide or steel |
| Industry: | Gas and Oil Field |
| Packing: | Plastic cylinder with foam, carton box |
| Keyword: | Plunger |
| Name: | Corrosion Resistance Wc Solid Tungsten Carbide High Pressure Pump Plunger |
| Working Pressure: | High Pressure Condition |
| Company Info. |
| SEED TECHNOLOGIES CORP., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

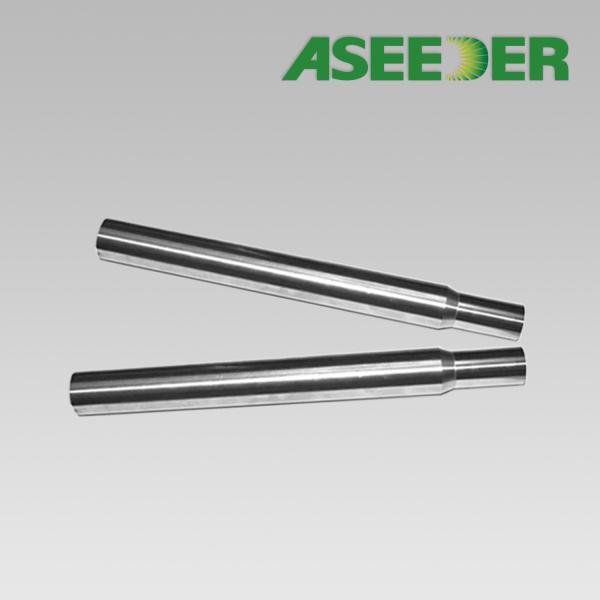

Corrosion Resistance Wc Solid Tungsten Carbide High Pressure Pump Plunger
SEED are able to manufacturing all kinds of wear resistance valve parts based on customer's drawing and material requirement, support hardfacing process based on customer's technique requirement, since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.
Features:
Aseeder Cemented tungsten carbide wear parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Applications :
We are manufacturing Cemented Tungsten Carbide Wear Parts for use Oil & Gas Industry. Aseeder Cemented tungsten carbide wear parts are available in a wide range of styles and size combinations for Petroleum industry.
Recommended tungsten carbide grade list
| Grade | Co (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Advantage::
Package :
Each unit will be packed into a plastic cylinder with foam, then put on carton box.
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
|
Super Wear Resistant TC High Pressure Pump Plunger With Wccocr Coating
API Anti Abrasion ZY20 Tungsten Carbide Blasting Plunger
OEM ZY15X Cemented Tungsten Carbide Pump Plunger With TC Coating
TC Coated ZY15-C Tungsten Carbide Rod Plunger For Critical Environment
ASP9100 Ultra High Pressure Compressor ZY11-C WC Rod Plunger
Frac Pumps Spare Parts Tungsten Carbide Plunger Used In Hydraulic Fracturing Treatments
