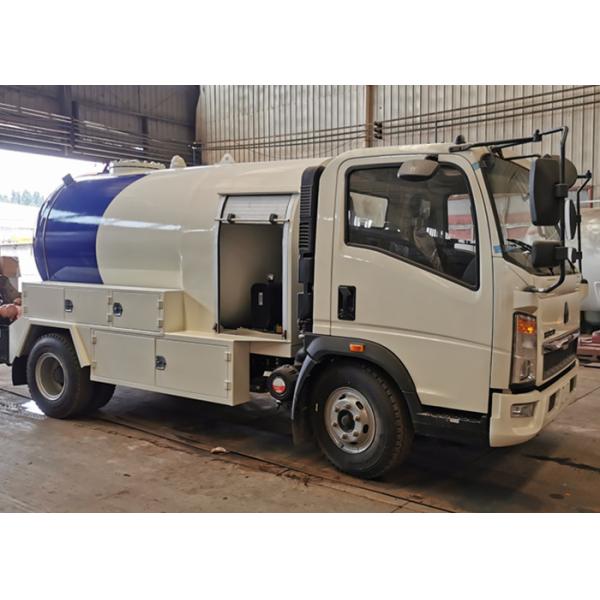

Sinotruk HOWO 4x2 116hp RHD 5000L LPG dispenser refilling truck 2 Tons, 2T 2.5T LPG filling tank truck
Product Description
LPG rigid truck(also called lpg bobtail truck,lpg dispenser
truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is
designded and used for transporting and refueling propane/lpg
gas/liquid petroleum gas into smaller lpg skid station tank and
home cylinders.
With different design,you can choose volume flow meter or lpg
dispenser for your truck. The lpg dispenser is widely used for
filling home cylinders.It can be measured by filling weight or
filling volume and it can offer receipt in english,french or
spanish as required. With above lpg bobtail,you can start lpg
filling business easily.
1) Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,
3) Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck
4) Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.
product Specification
| Item No. | Parameters |
| Overall Dimension | 5900x2400x2650mm |
| Driving Model | Left hand drive for Nigerian market |
| Gross Vehicle Weight | 8160 kg |
| Curb Weight | 5850kg |
| Payload | 2310 kg |
| Wheel Base | 3360 mm |
| Front Axle | 2400kg |
| Rear Axle | 4200kg |
| Engine | YN4102QBZL,Diesel engine |
| Engine horsepower | 116HP EUROIII |
| Displacement | 3760mL (Diesel) |
| Rated Rotation Speed | 3000 rpm |
| Gearbox | WLY6T46,6-speed forward and 1 reverse |
| Cabin | Howo L2W 2080 spacious cabin,2~3 Passenger allowed,with A/C |
| Tire | 7.50R16 (6 pcs with one spare) |
| Exhaust Pipe | At front of Cabin for safety |
| LPG tank | |
| Volume: | 5000iters |
| Tank material: | Q345R |
| Tank diameter: | 1600mm |
| Tank thickness: | 10mm |
| End plate thickness: | 10mm |
| Tank length: | 3070mm or as designed |
| Gas phase | Flange type,DN50/2” or according to customer request |
| Liquid Phase | Flange type,DN50/2” and DNDN80/3” or according to customer request |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Testing pressure | 2.21Mpa |
| Refilling Accessory | |
| LPG Pump | Chinese brand YQ15-5 |
| Flow rate:15.5M3/H | |
| 10 Mpa inlet pressure | |
780 r/min for rotation speed | |
| Radiator | 1 pc(to avoid high temperature of hydraulic oil during operation) |
| Hydraulic motor | 1 pc |
| LPG Dispenser | English remarks with printer for receipt |
| Filling hose | 15M,retractable |
| Filling nozzle | Filling nozzle for cylinder |
| Level Gauge | Chinese Float Ball type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | Located at side of LPG bobtail |
| Thermometer | 1 pc |
| Pressure Gauge | 2 pc |
| Emergency shut off Valve | 3 pcs with witch inside valve box and at rear of truck |
| Fender | Steel |
| Fire Extinguisher Holder | 2 sets |
| Anti Static line | 1 set |
Sinotruk HOWO 4x2 116hp RHD 5000L LPG dispenser refilling truck 2 Tons, 2T 2.5T LPG filling tank bobtail truck
Warranty
1. One year free warranty for major 3 components of our trucks:
engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's
country to assist the installation and operation when quantity
reaches 20 units.
3. Transportation warranty: our company offers transportation
insurance for customer to ensure the products arriving at
destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to
us. So we will do inspect all of the goods before shipment. And we
had joined the trade credit insurance system. If the product
received has quality problems, Alibaba will return the advance
payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have
more than 15 years of production experience, our products have been
sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare
parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show
you our production line .
|
