| Categories | Thermocouple Cable |
|---|---|
| Brand Name: | Tankii |
| Model Number: | K type thermocouple cable |
| Certification: | ISO9001 |
| Place of Origin: | China mainland |
| MOQ: | 10 Meters |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000Ton per year |
| Packaging Details: | 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement. |
| Item: | Magnesium Oxide Insulated SS304 /SS316 SS 321 Metal Sheathed Cable Type K type N |
| Insulator: | powder MgO |
| Conductor: | K |
| Leading time: | 3~15days |
| Company Info. |
| Shanghai Tankii Alloy Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Armored cables are made of conductors of different materials, installed in metal sleeves with insulating materials, and processed into a flexible and solid combination. Armored cable includes armored thermocouple, armored thermal resistance, armored heater and armored lead. It is mainly used for temperature measurement, signal transmission and special heating in chemical industry, metallurgy, machinery manufacturing, power generation and scientific test. Armored thermocouple is the most used.
Sheath material: SS304, SS321, SS316, SS310, INCL600
OD: 0.5~12.7mm
Core number:
Simplex,
Duplex,
Triplex

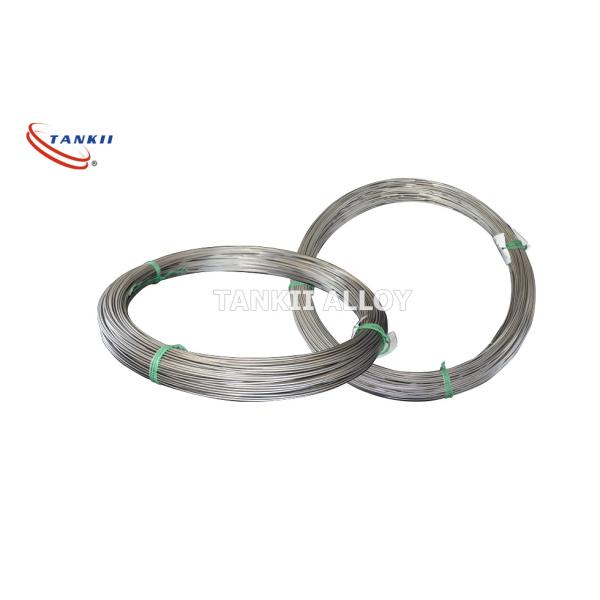

Tankii Mineral Insulated Cable (MI cable), comprising a metal sheath in which the conductors are embedded in highly compressed magnesium oxide insulation.
Usually, the conductors (copper or thermocouple wires) are embedded in MgO and pressed into a metal tube made of oxidation and corrosion resistant material.
The entire combination is then rolled under pressure to achieve the desired diameter.
Magnesium oxide makes an excellent electrical insulation material because it resists oxidation and ionizing radiation, and it is both chemically and physically stable at high temperatures.
The outer sheath protects the internal conductor from heat, chemical or other environmental damage.
Tankii MI cables are designed for high-temperature applications and used wherever in a particularly strict requirements with regard to mechanical, chemical and electrical stability.
Magnesium Oxide Insulated SS304 /SS316 SS 321 Metal Sheathed Cable Type Ktype N
Structure
Conductor: Positive Ni-Cr, Negative Ni-Si
Insulation: Mineral
Jacket: Stainless steel, inconel
Magnesium Oxide Insulated SS304 /SS316 SS 321 Metal Sheathed Cable Type Ktype N
Type | Class of Accuracy | |||||
| I | II | III | ||||
| Tolerance | Temp-℃ | Tolerance | Temp-℃ | Tolerance | Temp-℃ | |
| K | ±1.5℃ or ±0.4% t | -40~1000 | ±2.5℃ or ±0.75% t | -40~1000 | ±2.5℃ or ±1.5% t | -200~40 |
| E | -40~1000 | -40~1000 | -200~40 | |||
| N | -40~800 | -40~800 | -200~40 | |||
| J | -40~750 | -40~750 | -200~40 | |||
| T | ±0.5℃ or ±0.4% t | -40~350 | ±1.0℃ or ±0.75% t | -40~400 | ±1.0℃ or ±1.5% t | -200~40 |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
Application: thermocouple sensors
|
