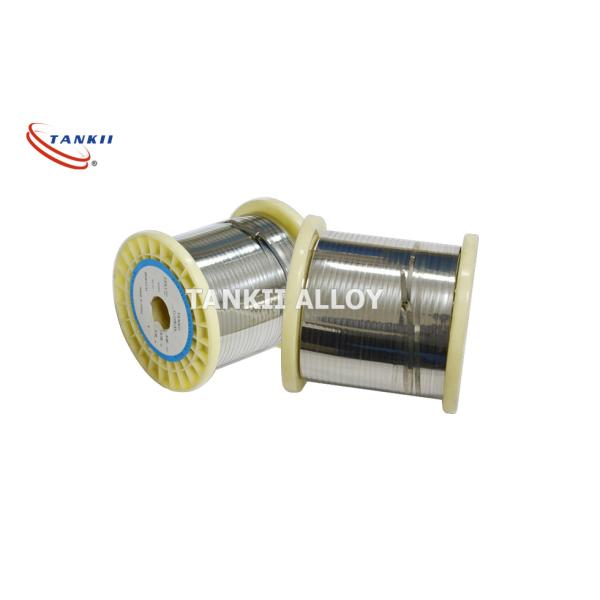

Nikrothal 8 Ni80Cr20 Nickel Chromium Alloy For Heating Element

Categories	Nicr Alloy
Brand Name:	Tankii
Model Number:	Nickel alloy wire
Certification:	ISO 9001
Place of Origin:	CHINA
MOQ:	5KG
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2000kg/month
Delivery Time:	5-30 days
Packaging Details:	spool，coil
Grade:	Ni80Cr20
Application:	heating element and resistor
Resistance (μω.m):	1.09+/-0.05
Type:	Nickel Wire,Nickel Strip
Surface:	Bright
Feature:	High Resistance,high nickel

Contact Now

Add to Cart

Company Info.

Shanghai Tankii Alloy Material Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Nchw-1 Nickel Chromium Alloy Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80

Ni80Cr20 Nickel-Chromium Alloy

Properties/Grade		Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Main Chemical composition	Ni	Rest	Rest	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Rest	Rest	Rest
Max. continuous service temp. of element		1200	1250	1150	1100	1100
Resistivity at 20oC (μ Ω · m)		1.09	1.18	1.12	1.04	1.04
Density (g/cm3)		8.40	8.10	8.20	7.90	7.90
Thermal conductivity(KJ/m· h· oC)		60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion(α × 10-6/oC)		18.0	17.0	17.0	19.0	19.0
Melting point (approx. )( oC)		1400	1380	1390	1390	1390
Elongation at rupture (%)		> 20	> 20	> 20	> 20	> 20
Micrographic structure		austenite	austenite	austenite	austenite	austenite
Magnetic properties		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic
