140 bar High Pressure Brass Solenoid Valve For Water Air 1/8'' 1/4'' 3/8'' 24V 220V

140 bar High Pressure Brass Solenoid Valve For Water Air 1/8'' 1/4'' 3/8'' 24V 220V

140 bar High Pressure Brass Solenoid Valve For Water Air 1/8'' 1/4'' 3/8'' 24V 220V

Product Features:

1. Working Media: Water, Air, Gas, Liquid, etc
2. Working Pressure: 0 to 140 bar
3. Media Temperature: -60 to +200℃
4. Port Size: 1/8'', 1/4'', 3/8''
5. Orifice Size: 1mm, 1.2mm, 1.5mm, 2mm, 2.5mm, 3mm
6. Body Material: Brass
7. Seal Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data:​

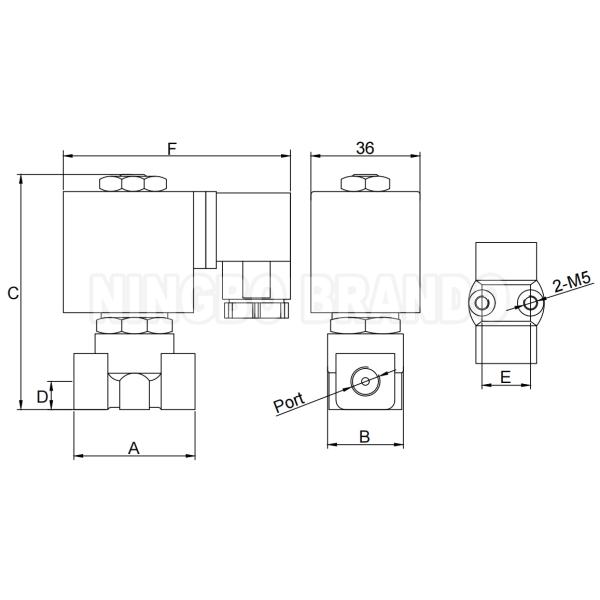

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Similar Valves:

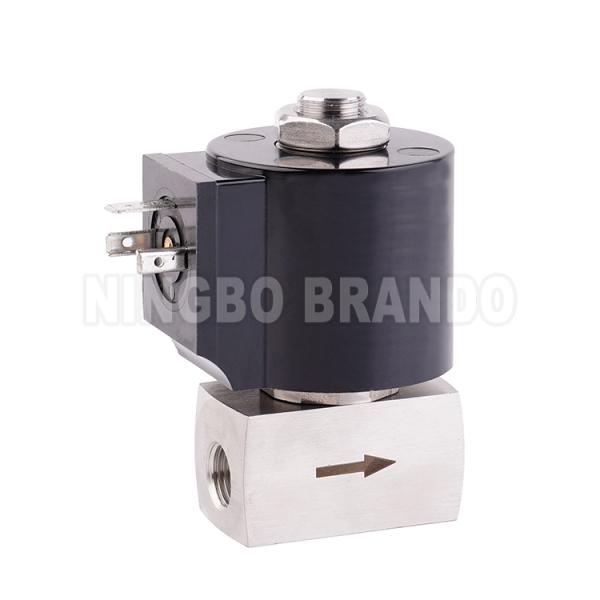

Max 150 bar	Max 300 bar	Max 360 bar	Max 700 bar

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Ningbo Brando Hardware Co., Ltd
