W01-R58-4060 Industrial Air Springs 12X1 DUNLOP SP 1640 Air Bags

W01-R58-4060 Industrial Air Springs 12X1 DUNLOP SP 1640 Air Bags

2B4060 OEM reference:

GUOMAT:2B4060

Contiteh:FS412-10DSG1/2

Contiteh:FS 412-10DSG1/2

Contiteh:FS412-10 DSG1/2
Firestone: W01R584060,

Firestone:W01-R58-4060,

Firestone:WO1R584060,

Firestone:WO1-R58-4060

DUNLOP SP 1640

DUNLOP SP1640

FS 412-10 DS G 1/2, bellows type industrial air spring, single swing, 412 cm2 effective area, 10 cm maximum stroke, detachable connecting parts, stud installation, G1/2 BSPP

Specifications and Detail Technical Parameters:Style12" x1

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2 BSP

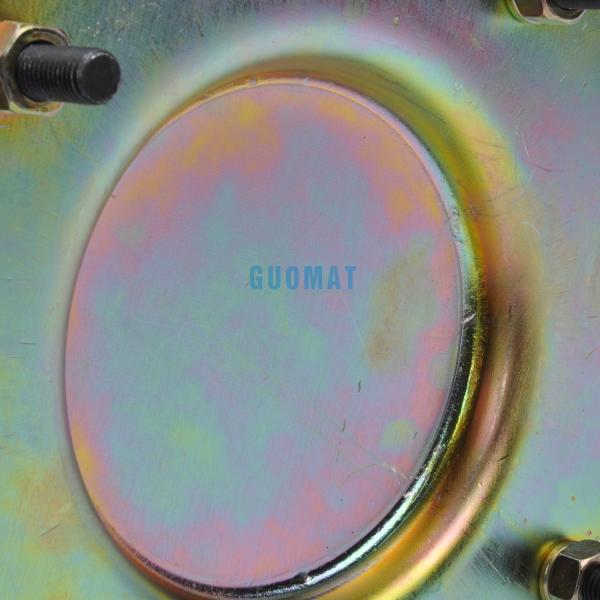

❸ Cover Plate

Top Cover Plate Diameter (Width): 210 mm

Bottom Cover Plate Diameter (Width): 210 mm

Material top and bottom plate:Steel

❹Rubber Bellows

Stroke of Rubber Bellows:50 mm-150m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Rubber material Standard up to 70°C natural rubber

Other kinds of model air bellows:

W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)

Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1

Other models of ZF air springs:
