| Categories | Spherical Plain Bearing |
|---|---|
| Brand Name: | SFT |
| Model Number: | GE80DO-2RS |
| Place of Origin: | China |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS/MONTH |
| Delivery Time: | 20-45DAYS |
| Packaging Details: | carton,pallet |
| Application: | simon Plain Bearing Automation Equipment bearing |
| Precision Rating: | p0 p2 p4 p5 p6 |
| Material: | Chrome Steel GCr15 |
| ID: | 80mm |
| Tolerance: | C0 |
| OD: | 120mm |

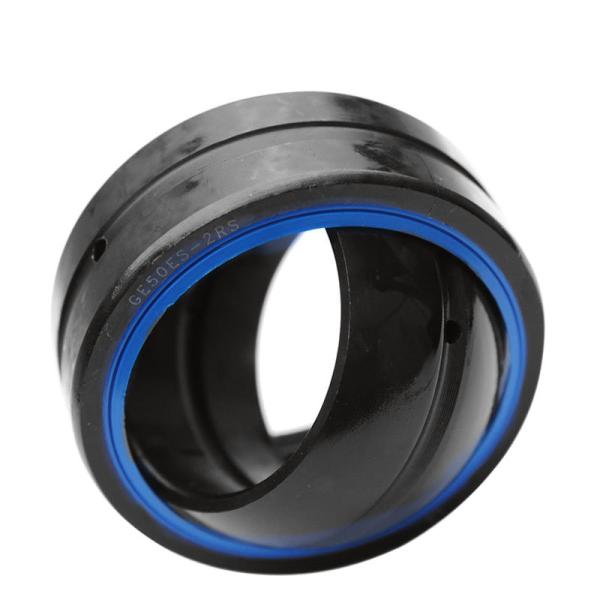

GE80ES-2RS Spherical Plain Bearings Manufacturer GE80DO GE80DO-2RS
Features of Spherical Plain bearing GE
Radial Spherical plain bearings are design to cater to all heavy loading equipments.
Plain bearings are able to cater to various sliding contact surfaces;
Steel/PTFE composite material and Steel/PTFE fabric material.
Range of production range from ID15mm to ID250mm.

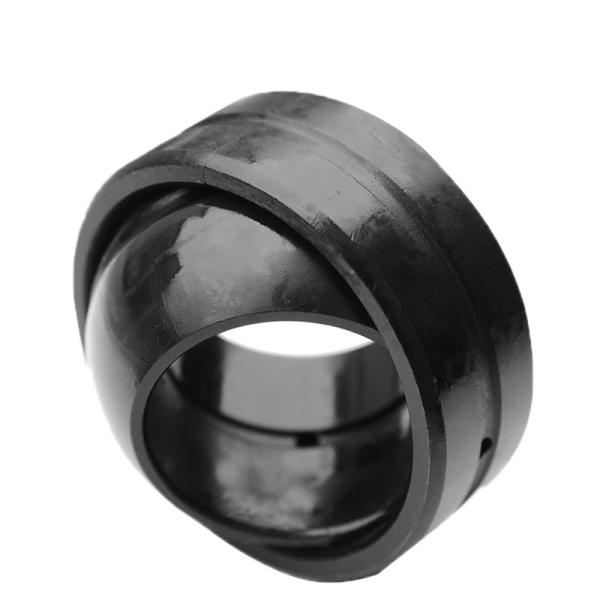

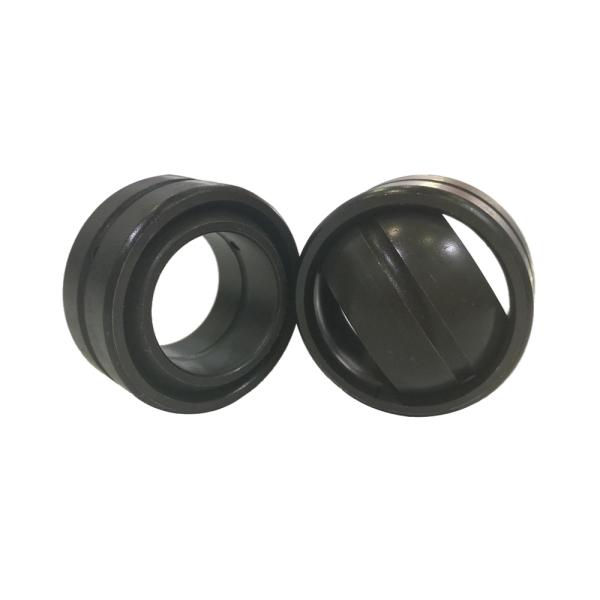

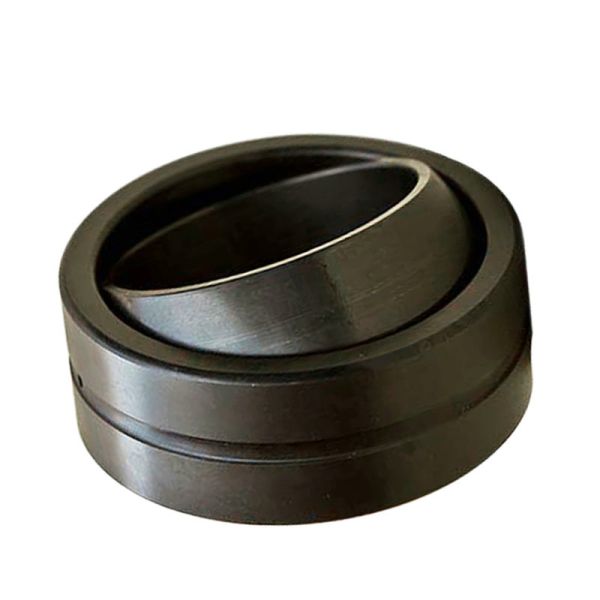

Picture of Lubricated Spherical Plain Bearing GE ES2RS
| Dimension table · Dimensions in mm | |||||||||
| Shaft diameter | Designation | Mass | Dimensions | ||||||
| kg | d | D | B | C | dK | α | |||
| d | without seals | with seals | Degrees | ||||||
| 6 | GE 6 DO1) | – | 0,004 | 6 | 14 | 6 | 4 | 102) | 13 |
| 8 | GE 8 DO1) | – | 0,007 | 8 | 16 | 8 | 5 | 132) | 15 |
| 10 | GE 10 DO1) | – | 0,012 | 10 | 19 | 9 | 6–0,24 | 162) | 12 |
| 12 | GE 12 DO1) | – | 0,017 | 12 | 22 | 10 | 7 | 182) | 11 |
| 15 | GE 15 DO | – | 0,027 | 15 | 26 | 12 | 9 | 222) | 8 |
| 16 | GE 16 DO4) | – | 0,044 | 16 | 30 | 14 | 10 | 252) | 10 |
| 17 | GE 17 DO | GE 17 DO-2RS | 0,041 | 17 | 30 | 14 | 10 | 252) | 10 |
| 20 | GE 20 DO | GE 20 DO-2RS | 0,065 | 20 | 35 | 16 | 12 | 292) | 9 |
| 25 | GE 25 DO | GE 25 DO-2RS | 0,12 | 25 | 42 | 20 | 16 | 35,5 | 7 |
| 30 | GE 30 DO | GE 30 DO-2RS | 0,15 | 30 | 47 | 22 | 18 | 40,7 | 6 |
| 35 | GE 35 DO | GE 35 DO-2RS | 0,23 | 35 | 55 | 25 | 20 | 47 | 6 |
| 40 | GE 40 DO | GE 40 DO-2RS | 0,32 | 40 | 62 | 28 | 22 | 53 | 7 |
| 45 | GE 45 DO | GE 45 DO-2RS | 0,41 | 45 | 68 | 32 | 25 | 60 | 7 |
| 50 | GE 50 DO | GE 50 DO-2RS | 0,53 | 50 | 75 | 35 | 28 | 66 | 6 |
| 60 | GE 60 DO | GE 60 DO-2RS | 1 | 60 | 90 | 44 | 36 | 80 | 6 |
| 70 | GE 70 DO | GE 70 DO-2RS | 1,5 | 70 | 105 | 49 | 40 | 92 | 6 |
| 80 | GE 80 DO | GE 80 DO-2RS | 2,2 | 80 | 120 | 55 | 45 | 105 | 6 |
| 90 | GE 90 DO | GE 90 DO-2RS | 2,7 | 90 | 130 | 60 | 50 | 115 | 5 |
| 100 | GE 100 DO | GE100 DO-2RS | 4,3 | 100 | 150 | 70 | 55 | 130 | 7 |
| 110 | GE 110 DO | GE110 DO-2RS | 4,7 | 110 | 160 | 70 | 55 | 140 | 6 |
| 120 | GE 120 DO | GE120 DO-2RS | 8 | 120 | 180 | 85 | 70 | 160 | 6 |
| 140 | GE 140 DO | GE140 DO-2RS | 11 | 140 | 210 | 90 | 70 | 180 | 7 |
| 160 | GE 160 DO | GE160 DO-2RS | 14 | 160 | 230 | 105 | 80 | 200 | 8 |
| 180 | GE 180 DO | GE 180 DO-2RS | 18,2 | 180 | 260 | 105 | 80 | 225 | 6 |
| 200 | GE 200 DO | GE 200 DO-2RS | 28,3 | 200 | 290 | 130 | 100 | 250 | 7 |
| 220 | – | GE 220 DO-2RS | 35,4 | 220 | 320 | 135 | 100 | 275 | 8 |
| 240 | – | GE 240 DO-2RS | 39,4 | 240 | 340 | 140 | 100 | 300 | 8 |
| 260 | – | GE 260 DO-2RS | 51,1 | 260 | 370 | 150 | 110 | 325 | 7 |
| 280 | – | GE 280 DO-2RS | 64,6 | 280 | 400 | 155 | 120 | 350 | 6 |
| 300 | – | GE 300 DO-2RS | 77,3 | 300 | 430 | 165 | 120 | 375 | 7 |
| 1) No relubrication facility. | |||||||||
| 2) No lubrication groove on inner ring spherical surface. | |||||||||
| 3) Also available in groups C2 and C3. | |||||||||
| 4) Price and delivery on request. | |||||||||
Joint Bearings Series:
GE...E type: single outer ring, no lubrication tank. Can withstand radial loads and small axial loads in either direction.
GE...ES type: single seam outer ring with lubrication groove. Can withstand radial loads and small axial loads in either direction.
GE...ES-2RS type, GEEW...ES-2RS type: single-slit outer ring with lubrication groove and sealing ring on both sides. Can withstand radial loads and small axial loads in either direction.
GE...ESN type: single-slit outer ring, GE...XSN type: double-slit outer ring (split outer ring) with lubricating oil groove and outer ring with retaining groove. Can withstand radial loads and small axial loads in either direction. However, when the axial load is received by the retaining ring, its ability to withstand axial loads is reduced.
|
