300KW Hot Pressing Sintering Furnace

Categories	Technical Ceramic Parts
Brand Name:	ZG
Model Number:	MS
Certification:	CE
Place of Origin:	CHINA
MOQ:	1 piece
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	10000 pieces per month
Delivery Time:	5-8 working days
Packaging Details:	Strong wooden box for global shipping
Material:	Alumina
Size:	Customized
Color:	White
Features:	high hardness; high corrosion resistance; low density; stability in a wide range of temperatures; precision machining capability.

Contact Now

Add to Cart

Company Info.

HENAN ZG INDUSTRIAL PRODUCTS CO.,LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

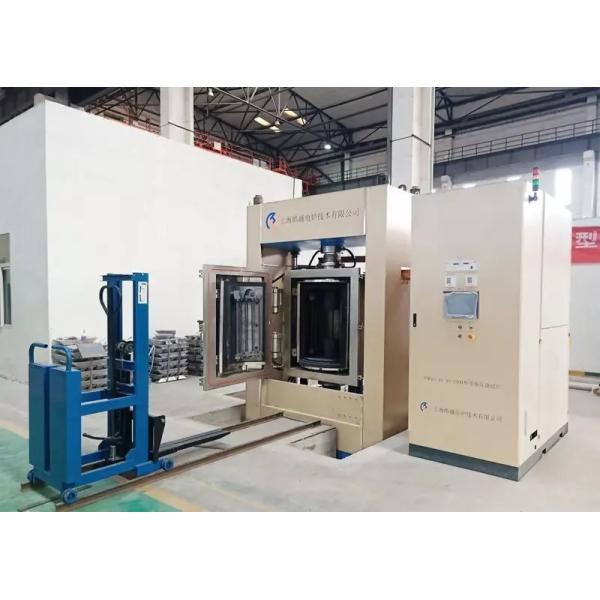

Vacuum Hot-Pressing Sintering Furnace

Technical Features:

Maximum Heating Temperature: 2300℃
Integrated hot press sintering and vacuum sintering in one furnace
Horizontal design with front-open chamber ensures easy loading and removal of mold.
Vacuum degree (10^-3 Pa range) and Inert gas (Ar, He, N2) operation.
Fully automatic operation by PLC and touchscreen HMI.
Simultaneous temperature and pressure control.
Temperature control system based on thermocouple and infrared thermometer.
Safety alarm system for over-pressure and over-temperature.

Specification:

P5 Vacuum Hot-Pressing Sintering Furnace
Model	VHPgr-50/50-2000(P5)
Equipment Form	Horizontal
Loading method	Horizontal side loading
Heating Element	Graphite
Max.Temperature	2300℃
Working Temperature	2200℃
Max.Power	300KW
Temperature Accuracy	±1℃
Max.Pressure	2940KN(300Ton)
Maximum Outside Diameter of Mold	φ500x500mm(D*H)
Product Diameter	≤φ250mm
Diameter of metal head	φ300mm
Max Displacement	400mm
Pressing Direction	Single way pressurization ( bottom )
Ultimate Vacuum	5Pa/8.0x10-3Pa(8.0×10-2 torr/8.0×10-5 torr)Optional
Pressure Rise Rate	≤2.0Pa/h
Gases	Nitrogen,Argon
Thermocouple	W-Re5/26(C-type)
Cooling Water Requirement	Water pressure: 0.2~0.3MPa, water flow: 30M3/ h
Power Requirement	VHPgr-50/50-2000(P5)Total power: 360KVA (including vacuum furnace power, vacuum generator power, cooling water power, etc.);
