| Categories | Figure 8 Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM |
| Model Number: | GYTC8S-24B1 |
| Certification: | ISO9001,CE,ROHS,CE and ROHS |
| Place of Origin: | Guangzhou,China |
| MOQ: | 1km |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | 5-8 work days |
| Packaging Details: | wooden drum |
| Fiber type: | G652D |
| Fiber count: | 2-144 Cores |
| Length: | 2 km or Customized |
| Color: | Black |
| Messenger wire: | 1.0*7 steel stranded wire |
| Application: | Aerial,Overhead |
| Structure: | Figure 8 cable |
| Type: | Singlemode & Multimode |
| Operating temperature: | -40 ~ +60 C |
| Oem: | Yes |
| Armored: | Aluminium tape/Steel Tape,steel tape |
| messenger wire: | 7*1.0 steel wires |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

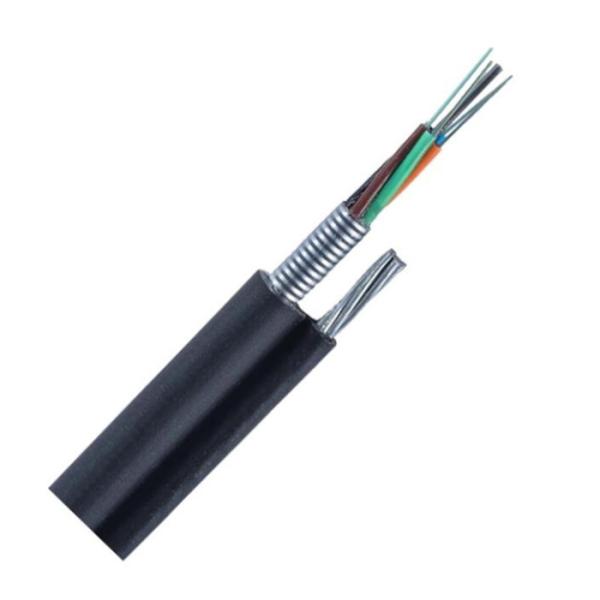

GYTC8S-12,24,48,72,96 cores Figure 8 Aerial optical fiber cable
Feature
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cast
Super mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
Long distance application for aerial system.
APL moisture barrier
Storage / Operating Temperature: -40℃~+70℃
Application
Apply in Self-supporting Outdoor Aerial fiber cable system
Package wooden drum for exporting:
1km,2km,3km,4km each drum
Cable Parameters
| Items | Specifications | |
| Fiber Count | 4,6,12,24,48,72,96 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Colors | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube | Dimension | 1.8 mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Dropping steel messenger | OD Diameter | 1.5mm x7 |
| Material | Galvanized steel | |
| Central strength member | OD Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | |
| Material | PE | |
| Color | Black | |
Dimensional Characteristics
| Designation | Max. number | Steel wire/ stand | Stranded | Nominal cable | Nominal cable |
| Of fibers per tube | Diameter (mm) | units | diameter (mm) | weight (kg/km) | |
| GYTC8S 2-36 | 6 | 2.3 | 6 | 11.6X25.5 | 270 |
| GYTC8S 38-72 | 12 | 2.3 | 6 | 13.2X28.5 | 310 |
| GYTC8S 74-96 | 12 | 2.3 | 8 | 14.9X33.0 | 390 |
| GYTC8S 98-120 | 12 | 2.3 | 10 | 16.8X33.0 | 390 |
| GYTC8S 122-144 | 12 | 2.3 | 12 | 18.8X35.0 | 440 |
Picture Show
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
|
