| Categories | Truck Mounted Telescopic Crane |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW20210712 |
| Certification: | CCC, ISO9001 |
| Place of Origin: | SUIZHOU. CHINA. |
| MOQ: | 1 sets |
| Price: | Negotiated |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 units per Month. |
| Delivery Time: | 40 working days |
| Product Name: | Dongfeng Tianjin Cargo Truck with CLW crane |
| Engine Horse Power: | 170HP 190HP |
| Truck Brand: | Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC etc |
| Drive Model: | 4x2, 6 wheels, 6 wheeler, |
| Drive Type: | Right Hand Drive, or Left Hand Drive. |
| Cane Type: | Folding, Folded, Knuckle Crane Or Straight arm |
| Equipment: | Hydraulic pump, Oil Cylinder |
| Loading capacity: | 10 tons, 15 tons, 20 tons |
| Crane Brand: | SANY, XCMG, CLW for option |
| Crane capacity: | 3 tons, 4 tons, 5 tons, 6 tons, 8 tons etc |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

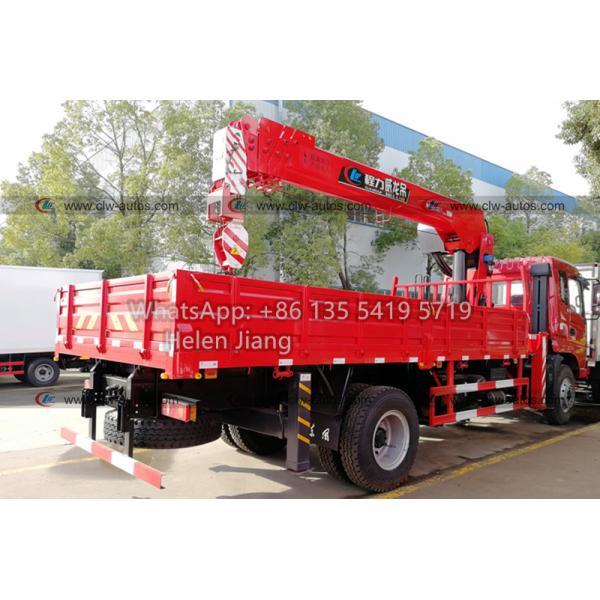

Dongfeng Tianjin 4x2 6 Wheels Wheeler 15 Tons Cargo Truck With Straight Arm CLW Crane
Description
1. Purpose: It's used for lifting and transporting all kinds of
bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different
chassis.)
3. Advantage: One truck combines the functions of crane and dump
truck.
Product Description
-- Truck mounted crane(also called Truck with Crane, Truck Crane)
is used for lifting different kinds of cargo such as tree, steel
pipeline, telegraph pole and stone etc.
-- Truck mounted crane can be divided into various types as
follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON,
Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Truck mounted crane;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and
10x4 Truck mounted crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons
10tons 12tons 15tons 18tons 20tons 25tons 30tons 50tons 60tons
80tons 100tons 120tons 150tons Truck mounted crane
4) According to crane type,there are telescopic and knuckle Truck
mounted crane.
Feature
1. Crane Brand: Chinese Famous Brand
2. Heavy Duty Cargo box.
3. H Shape Hydraulic front & Rear Leg for safety.
4. Folded Arm & Telescopic Straight Arm Crane for option.
5. Crane capacity of truck mounted 12t telescopic boom
crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
14ton,16ton,20ton,25ton
Specification
| General Technical Parameters | ||||
| Overall Dimension | 9000*2500*3540 (mm) | |||
| Gross Vehicle Weight | 15800kg | |||
| Curb Weight | 8935kg | |||
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | According to customer requirements | ||
| Cabin | Left Hand Driving, Remote front door lock, with A/C | |||
| Engine | Model | 6 Cylinders | ||
| Power | 210HP | |||
| Emission standard | EURO V | |||
| Displacement | 6.7L | |||
| Fuel type | Diesel | |||
| Gearbox | 8 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 6T/9T | |||
| Wheel base | 5000(mm) | |||
| Overhang( Front/Rear) | 1460/2350(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Air Brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 9.00R20, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Flatbed | Flatbed dimensions | 5750*2300*600(mm) | ||
| Working System | Crane | Brand | Chinese Famous Brand | |
| Boom Type | Folding arm | |||
| Max lifting weight | 8,000(kg) | |||
| Max lifting height | 14(m) | |||
| Max working range | 12(m) | |||
| Rotation angle | 360 degree full rotation | |||
| Crane Weight | 3315kg | ||
| Installation space | 1150(mm) | ||
| Outrigger | 2 pcs, Front leg | ||
| Operation | Hydraulic control, with Aerial Seat | ||
| Optional Parts | 1. Remote control 2. Rear leg | ||
Sales Service
① Pre-sales Service: Communicate with customers, analyze their
needs.
② Sales Service: Provide professional technical solutions,
recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the
EXW, FOB, CFR or CIF price accordingly.
|
