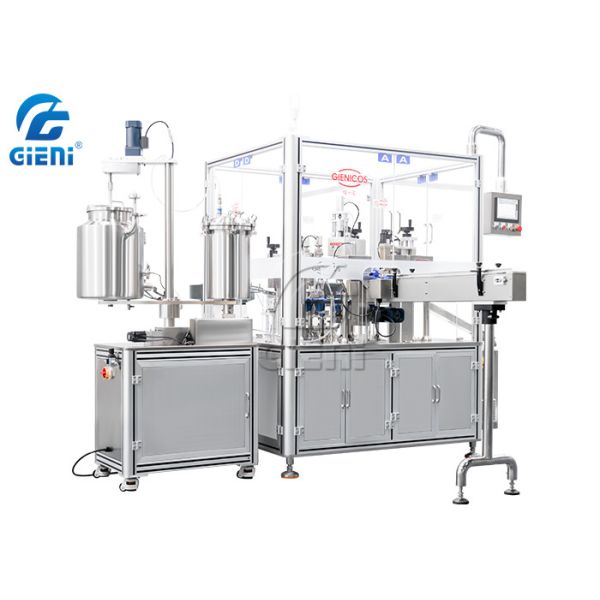

PLC 7KW Cosmetic Filling Machine

Automatic Rotary PLC Filling Capping Machine for Mascara Lip Gloss

Production Flow:

Manually place containers to the conveyor -----auto filling (with container detection)-----auto wiper sorting and feeding---wiper detector then press-----auto brush feeding -----auto servo capping----auto discharging

Application for Mascara/Lip Gloss Filling Capping Machine

The GIENI® JQR-02 is designed for production of both lip gloss and mascara filling and capping, very smart and flexible rotary type machine, less space needed

Features of Mascara/Lip Gloss Filling Capping Machine

◆ mechanical cam mechanism;

◆ equipped with conveyor, width adjustable, speed adjustable;

◆ equipped with 2 filling tanks, each tank volume is 20L, one is for mascara, another is for lip gloss (two same function also ok, for backup)

◆ one nozzle filling, another nozzle for backup (for fast color change), filling volume adjustable

◆ with reset functions on touch screen while changing packagings;

◆ fast disassemble valve for cleaning and changing materials in 90s, no need takes hours;

◆ filling controlled by servo motor, high precision up to ±0.1g;

◆ mechanical arms to pick up the containers, caps and wipers to ensure the machine's stable working;

◆ wiper and brush vibration bowl are options

Shanghai Gieni Industry Co.,Ltd was founded in 2011. We are a cosmetic machinery manufacturer which professional in researching and developing, producing cosmetic machinery. We just focus on daily chemical and color cosmetic fields, and providing the complete set of packaging solutions for your esteemed company.

After years of effort our products have sold to USA, Mexico, Colombia, Swizerland, Bulgaria, Russia, Ukraine, Turkey, Indonisier, UAE, Pakistan, Iran and other fifty countries and refect the machine to be more excellent performance during production in user’s site.

Since founding of our company, we adhere to the idea of keeping improving, dedication and enterprising and launch the products with international first-class standard. We strive to create a individuality brand with bright style:GIENI.
