M/31123 Industrial Air Springs 260mm Norgren Triple Convoluted Air Bag

Categories Industrial Air Springs
Supply Ability: 1000pcs/week
Payment Terms: T/T, Western Union,Paypal or Others
Place of Origin: Guangzhou, China
Brand Name: Norgren
Certification: ISO/TS16949:2009
MOQ: 3 pieces
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-8 Working Days
Model Number: M/31123
Model NO.: M/31123
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Bumper: Without
Air Inlet: G1/2
Top Plate Hole/Stud: M10
Bottom Plate Hole/Stud: M10
Top Plate Dia: 260 mm
Bottom Plate Dia: 260 mm
Trademark: Norgren
Transport Package: Cartons
Specification: 33*33*22 cm
Origin: Europe
HS Code: 8708809000
Port: Huangpu, China
Function: Damping
Material: Rubber and Iron
Load Type: Compression
Production Process: Vulcanization and Crimping
Shape: Cylinder
N.W.: 6.5 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

M/31123 Industrial Air Springs 260mm Norgren Triple Convoluted Air Bag

Norgren Air Spring M/31123 Steel Rubber Bellows 12"X3 Triple For Industrial Safety Machine


OEM Cross reference:


Norgen M/31123

Firestone W01-R58-4062

Contitech : FT412-323

Goodyear : C2ECH

Dunlop pneuride: 12X3

Firestone
W01R584062
EKER
42330003
IVE-CO
42107595
Intertruck-A
1700089105
Intertruck-A
1780115003
BlackTech
3C302200P03
BlackTech
3C30F03
BlackTech
3C302P03
Fabio
3DC3002C
Intertruck-S
8400108SX
Lohr
A06030606
Contitech
FT4123212M10
BlackTech
3C302200P01
Air Tech
115005
Dayco
DF12X3
Meritor
MLF7190 I
Templin
T600513
KRAFTIG
FT41232
Winkler
14109800305
Gigant
881204
Dunlop
SP1542
Peters Man
8422861
Goodyear
3B122452
Dunlop
SP2666NB
DAF
M002297
SMB
M002297
Gigant
M002297
Contitech
FT41232
Contitech
FT412321/2M10


Specifications and Detail Technical Parameters:Style12" x3


Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M10


Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10


Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2


Cover Plate

Top Cover Plate Diameter (Width): 260 mm


Bottom Cover Plate Diameter (Width): 260 mm


Material top and bottom plate:Steel


Rubber Bellows


Stroke of Rubber Bellows:100mm-430m


Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


Rubber material Standard up to 70°C natural rubber


Other models we import from Norgen:


Model No:M/31061M/31062M/31081M/31082M/31101M/31102M/31103M/31121M/31122
Nominal ø (inch) x convolutions6 X 16 X 28 X 18 X 210 X 110 X 210 X 312 X 112 X 2
Maximum Stroke (mm)5511580175100225330100225
Port SizeG1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2G1/2
Model No:M/31123M/31141M/31142M/31143M/31162M/31163M/31212M/31262
Nominal ø (inch) x convolutions12 X 314 ½ X 114 ½ X 214 ½ X 316 X 216 X 321 X 226 X 2
Maximum Stroke (mm)330125265380315430280410
Port SizeG1/2G1/2G1/2G1/2G1/2G1/2G3/4G3/4

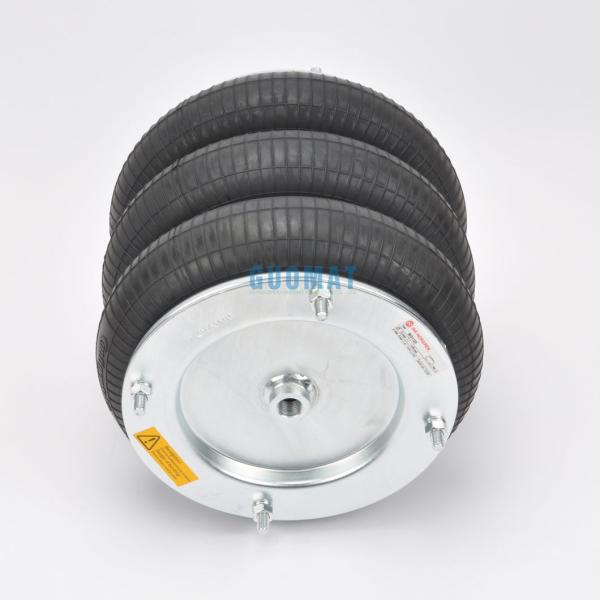

Norgren Air Spring M/31123 Industrial Machine Air Spring Steel Rubber Bellows 12

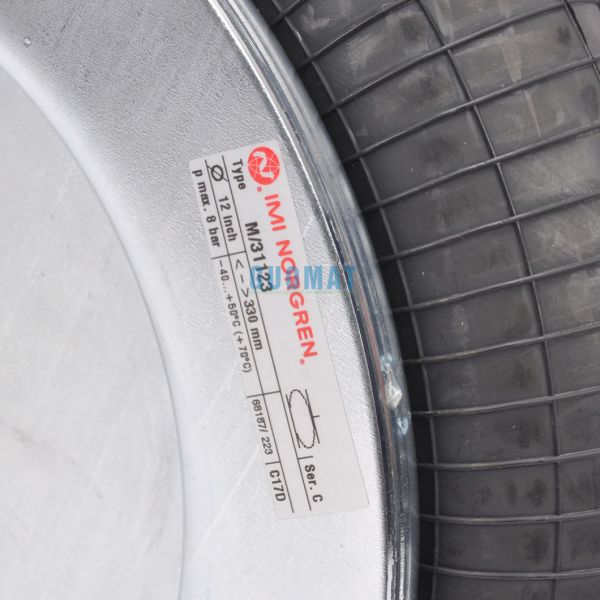

Norgren Air Spring M/31123 Industrial Machine Air Spring Steel Rubber Bellows 12
