PM/31081 Single Convoluted Air Spring

Categories Industrial Air Springs
Supply Ability: 1000pcs/week
Payment Terms: T/T, Western Union,Paypal or Others
Place of Origin: Guangzhou, China
Brand Name: AIRSUSTECH
Certification: ISO/TS16949, ISO9001
MOQ: 3 pieces
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-8 Working Days
Model Number: 1B1209
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Air Inlet: G3/4
Top Plate Hole/Stud: M8
Bottom Plate Hole/Stud: M8
Top Plate Dia: 135 mm
Bottom Plate Dia: 135 mm
Trademark: Neutral
Transport Package: Cartons
Specification: 24*24*22 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: Yes
Type: Suspension Spring
N.W.: 2.0 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PM/31081 Single Convoluted Air Spring

Industrial Air Springs Norgren Pm/31081 Single Convoluted Air Spring Dunlop S08101 Festo


OEM Original Equipment Manufacturer:


AIR INLET 3/4 NPT:

Firestone : W01-M58-6165,W01M586165,W01 M58 6165

Contitech :: FS 120-9,FS120-9;FS1209

Dunlop(FR) : 8''x1 S08101

Bosch : 822419003

Festo : EB-215-80

Norgren : PM/31081(8x1)

Weforma : WBE 300-E1

Airtech : 140293

Airtech : 111003/1B-190FB :

Megatech :1S120-9 3/4 M8


Technical Data

  • Assembly weight:2.0 kg
  • Min. pressure - 0 psi
  • Return force to min. height - <45LBF/200N
  • Overall Weight - 4.4LB
  • Min. Design Height - 1.97inch/50MM
  • Inst.Space Required - 9.06inch/230MM
  • Max. Stroke - 3.34inch/85MM

AIR INLET 1/4 NPT:

Firestone : W01-M58-6166

Contitech : FS 120-9

Dunlop(FR) : 8''x1 S08100

Bosch : 822419008

Weforma : WBE 300-E2

Firestone:W01-M58-6171;116-1


PNEUMATIC APPLICATION - STATIC CHARACTERISTIC VALUES


Force F [lbf]
Pressure p [psi]406080100Vol. V [in.³]
H 4.50 in./114.3MM728113015701970110
H 4.00 in./101.6MM905140019402390100
H 3.50 in./88.9MM105016102240274090
H 3.00 in./76.2MM117017702450302075
H 2.50 in./63.5MM127019002630326057

VIBRATION ISOLATION - DYNAMIC CHARACTERISTICS


Pressure p [psi]406080100120Vol. V [in.³]
Force (load) F [lbf]8011,2401,7002,1302,530110
Spring rate c [lbf/in]7099491,1901,4301,670110
Natural Frequency f0 [Hz]2.92.82.72.62.6110
Design height H: recommended 4.33 inch, minimum 3.54 inch

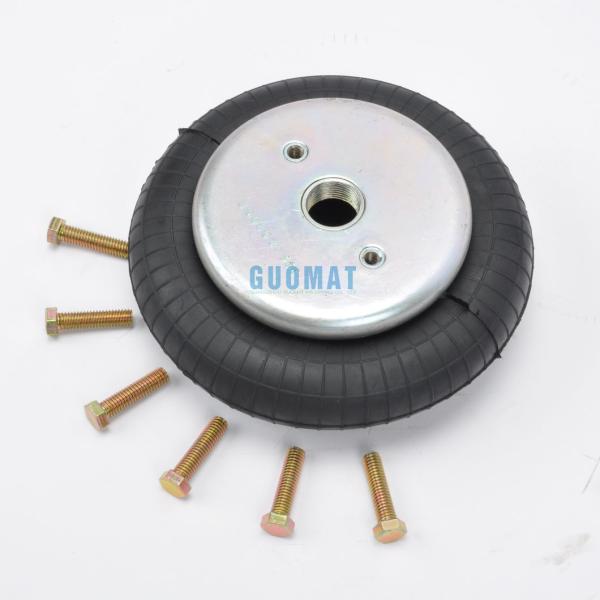

Norgren Pm/31081 Single Convoluted Air Spring Dunlop 8’ ’ X1 S08101 Festo Eb-215-80

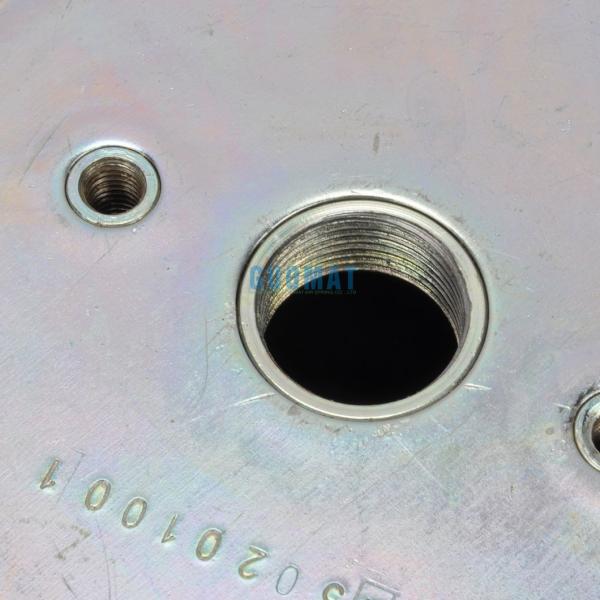

Norgren Pm/31081 Single Convoluted Air Spring Dunlop 8’ ’ X1 S08101 Festo Eb-215-80
Norgren Pm/31081 Single Convoluted Air Spring Dunlop 8’ ’ X1 S08101 Festo Eb-215-80

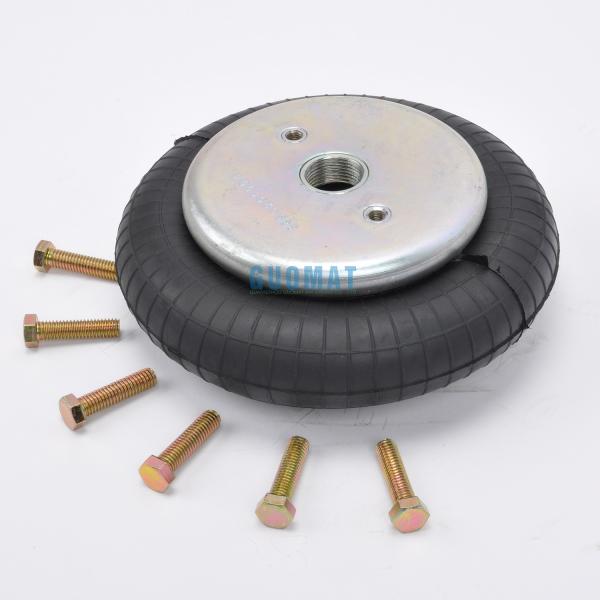

Buy PM/31081 Single Convoluted Air Spring at wholesale prices
