W013586945 Firestone Air Bags

Categories Firestone Air Bags
Supply Ability: 1000pcs/week
Payment Terms: T/T, Western Union,Paypal or Others
Place of Origin: Guangzhou, China
Brand Name: AIRSUSTECH
Certification: ISO/TS16949, ISO9001
MOQ: 3 pieces
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-8 Working Days
Model Number: 2B6945
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Air Inlet: M14X1.5
Top Plate Hole/Stud: 2xm10X1.5
Bottom Plate Hole/Stud: 2xm10X1.5
Top Plate Dia: 160 mm
Bottom Plate Dia: 160 mm
Trademark: Neutral
Transport Package: Cartons
Specification: 24*24*24 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: Yes
Type: Suspension Spring
N.W.: 3.9 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W013586945 Firestone Air Bags

Firestone Air Bags W013586945 2b9-253 Goodyear Air Springs 578923206 for Ridewell 1003586945c


Goodyear: 2B6945 Cross others OEM


GUOMAT NO.2B6945

Firestone Part NO.:W01-358-6945
Firestone Part NO.:W01 358 6945
Firestone Part NO.:W013586945
Firestone Bellows NO.:20-2

Contitech Part NO.: FD 200-25 427

Contitech Part NO. :FD200-25 427

Contitech Part NO.:FD20025 427

Goodyear Part NO.: 2B9-253

Goodyear Part NO.:2B9253

Goodyear Part NO.:2B9253
Goodyear Bellows NO.: 578-92-3-206

Goodyear Bellows NO.:578 92 3 206

Goodyear Bellows NO.:578923206
Triangle: 6332/4427
Leland : Sc2125
Watson&Chalin: AS0119F
Watson&Chalin:AS01451G
Ridewell1003586945C


GUOMAT 2B6945 Specifications and Technical Data

Compressed Height: 3.12 inches /

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut: 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2X1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

One hole in the middle of the Bottom Cover Plate:10.3

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 95 mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number: 20-2

Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

Bellows NO.: 20-2

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº


Description and application Of GUOMAT 2B6945 air spring:

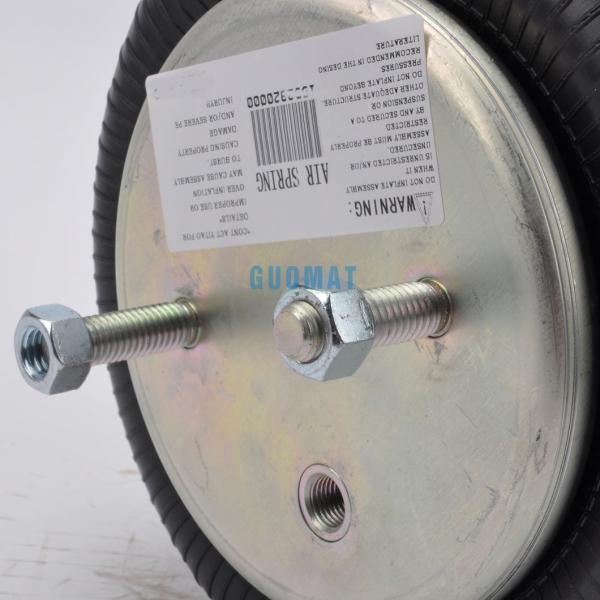

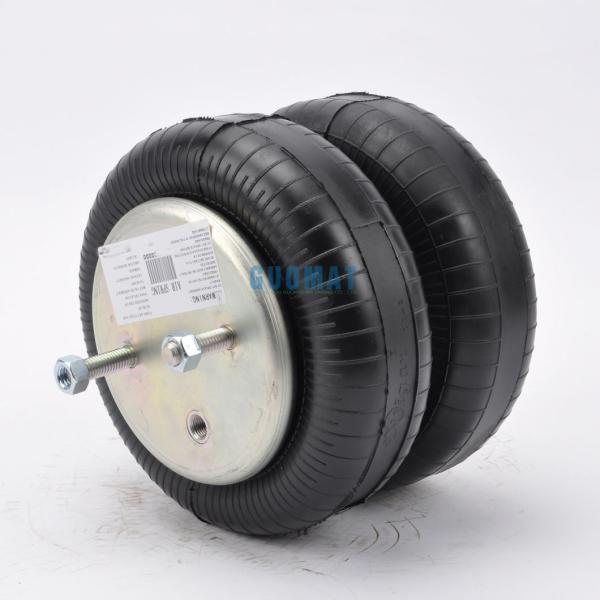

This kind of GUOMAT 2B6945 that has two Two Pillars Nuts at the top of the Cover Plate And Two Blind Nuts at the bottom of the Cover Plate. one Gas Hole / Air inlet 1/4 NPTF at the side of the top of the cover plate.This air spring can be used on trailers for retrofitting. At the same time can be used in many industrial equipment.It is very convenient to install.

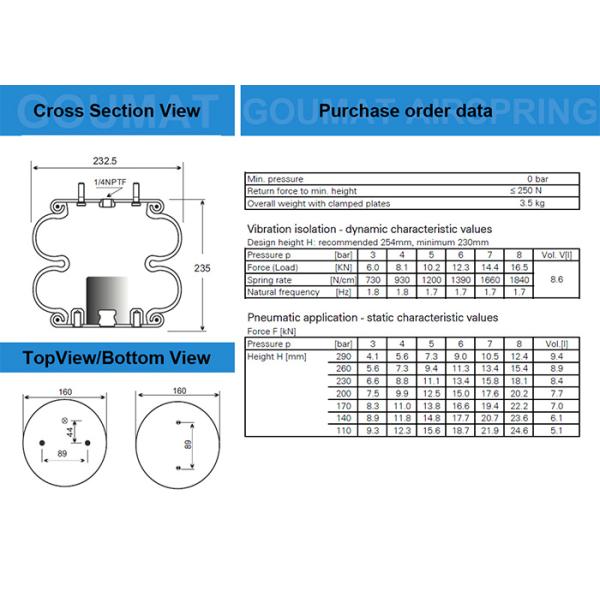

The drawing and data of GUOMAT 2B6945 air spring:

2b9-253 Goodyear Air Springs 578923206 Firestone W013586945 for Ridewell 1003586945c

2b9-253 Goodyear Air Springs 578923206 Firestone W013586945 for Ridewell 1003586945c

2b9-253 Goodyear Air Springs 578923206 Firestone W013586945 for Ridewell 1003586945c
2b9-253 Goodyear Air Springs 578923206 Firestone W013586945 for Ridewell 1003586945c

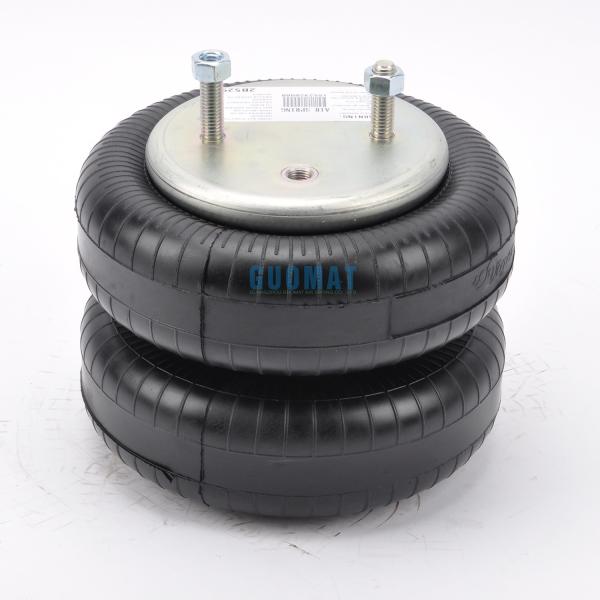

Buy W013586945 Firestone Air Bags at wholesale prices
