W01-358-7225 Firestone Shocks 259mm Hendrickson Air Suspension

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 2B7225
Certification: ISO/TS16949, ISO9001
Place of Origin: China
MOQ: 3 pieces
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
N.W.: 10.8 KG
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Stroke: 259 mm
Trademark: AIRSUSTECH Or Neutral
Transport Package: Carton
Specification: 33*33*22 cm
Origin: Guangdong,China
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Car Make: Hendrickson
Position: Front and Rear
OEM: Yes
Type: Shock Absorber
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

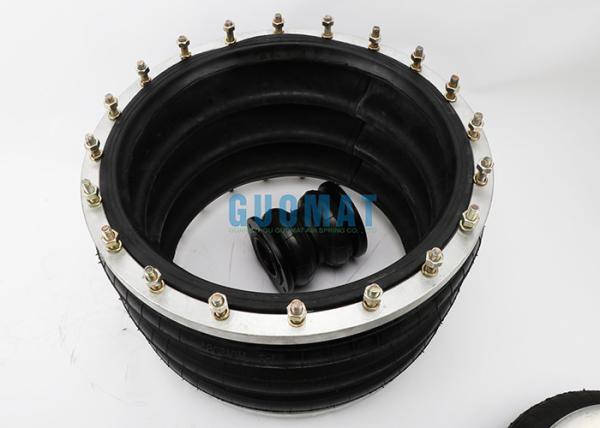

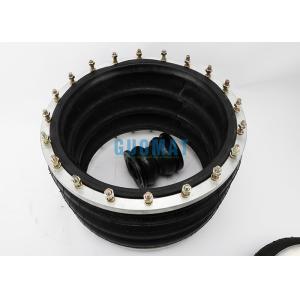

W01-358-7225 Firestone Shocks 259mm Hendrickson Air Suspension

W01-358-7225 Firestone Air Bags Ribbed Neck Aluminum Bead Rings Equal Spacing 11/4 BNW

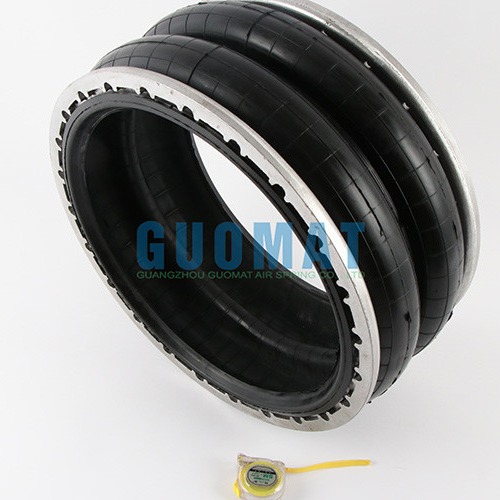

Industrial Double Convoluted Air Spring Specifications


Manufacturer Brand:AIRSUSTECH

Manufacturer ID:2B7225


Firestone Style 203
Two Ply Bellows
Ribbed neck aluminum bead rings (equal spacing) 11/4 b,n,w
Firestone ID:W01-358-7225

Firestone ID:W01 358 7225

Firestone ID:W013587225

Contitech FD 1330-25 RS UNF,

Contitech FD 1330-25 RS UNF,


Force to collapse to minimum height (@ 0 PSIG):40 lbs.


bellows type industrial air spring,

double helix,

effective area 1330cm square,

maximum stroke 25cm,

stud bolt installation,

inch seal ring
Manufacturer: Mainland
Maximum inflation pressure
120 psi
series
RS
Bellows type
Double convolution
Assembly weight
25 pounds


Bead ring Type4Maximum Diameter @ 7 Bar (mm)508
Dim. C (Bolt Circle Diameter mm)419Maximum Height (mm)84
# of Bolts (each ring)24Maximum Stroke (mm)183
Design Height (mm)241Minimum Usable Height (mm)267
Load (at Design Height) at: 3 Bar (kN)34.9Force in kN @ 5 Bar at Stroke of 25 mm86.3
Load (at Design Height) at: 5 Bar (kN)80.6Force in kN @ 5 Bar at Stroke of 50% of Max Stroke75.1
Load (at Design Height) at: 7 Bar (kN)84.5Force in kN @ 5 Bar at Stroke of Maximum Stroke52.1
Natural Frequency (@5 Bar)(fn(Hz)1.6Style Cross-Ref High Strength Style Number218
% of Isolation at Forced Frequency 7 Hz93.9Material2-Ply Standard Cord
% of Isolation at Forced Frequency 13 Hz98.5% of Isolation at Forced Frequency 25 Hz99.6

Other Uses


• Use as a protective boot or flexible coupling
• Use when the application requires a rapid flow of air in and out of the air spring
• Stack multiple air springs together for increased stroke capabilities


W01-358-7742 131 750 652W01-358-7919 321 750 985
W01-358-3000 rouge 1M1A-0 751 015W01-358-5307 1T14C-1 751 685
W01-358-6977 115 750 530 MW01-358-7019 333 751 023
W01-358-7751 160 750 770W01-358-7921 323 751 400
W01-358-3001 noir 1M1A-0 751 017W01-358-5310 1T14C-1 751 670
W01-358-6978 215 750 840 MW01-358-7023 19 750 155
W01-358-7752 160 750 772W01-358-7925 28 750 385
W01-358-3001 rouge 1M1A-0 751 017 MW01-358-5405 1T14C-3 751 710
W01-358-6979 200 750 680 MW01-358-7025 25 750 350
W01-358-7760 312 750 860W01-358-7926 314 750 945
W01-358-3002 noir 2M1A 751 523W01-358-5674 70-P-13 79 866
W01-358-6980 323 750 990 MW01-358-7030 25 750 355
W01-358-7761 312 750 870W01-358-7928 210 750 796
W01-358-3002 rouge 2M1A 751 520W01-358-5708 1T14C-7 751 745
W01-358-6981 314 750 940 MW01-358-7040 19-.75 750 175
W01-358-7772 200 750 680W01-358-7929 205 750 754
W01-358-3003 1M1A-1 751 018 6983 320 750 965 MW01-358-5712 1T14C-7 751 740
W01-358-7789 20-2 750 234W01-358-7042 19-.75 750 176
W01-358-3004 2M1A 751 524W01-358-8003 314 750 940
W01-358-6984 321 750 970 MW01-358-6008 19 750 130 M
