W21-760-0335 Firestone Air Ride Suspension A01-760-0335 Spring

Categories Firestone Air Bags
Supply Ability: 1000pcs/week
Payment Terms: T/T, Western Union,Paypal or Others
Place of Origin: Guangzhou, China
Brand Name: AIRSUSTECH
Certification: ISO/TS16949, ISO9001
MOQ: 3 pieces
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-8 Working Days
Model Number: 2B0335
Model NO.: 2B0335
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Air Inlet: 3/8NPT
Top Plate Hole/Stud: 3/8-16unc
Bottom Plate Hole/Stud: 3/8-16unc
Top Plate Dia: 132 mm
Bottom Plate Dia: 132 mm
Trademark: Neutral
Transport Package: Cartons
Specification: 24*24*24 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: Yes
Type: Suspension Spring
N.W.: 3.0 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W21-760-0335 Firestone Air Ride Suspension A01-760-0335 Spring

W21-760-0335 Firestone Air Bags A01-760-0335 Plate Screw 2X3/8-16unc Air Helper Springs

Quick details:


1. OE No.: A01-760-0335 / A01 760 0335 /A017600335
2. Item Name: Air Spring
3. Item No : 2B0335
4. Car Make: SCANIA.IVE-CO.RENAULTBENZ,Vol-vo truck.DAF.MAN.
5. MOQ: 10 PCS
6. Material: Steel/Rubber
7. Packing: 2PCS/CTN


GUOMAT:2B0335 Cross others OEM


OEM References NumbersReferences Numbers
Firestone W21-760-0335 /
Firestone W21 760 0335 /
Firestone W217600335
GUOMAT:2B0335Firestone A01-760-0335
Firestone A01 760 0335
Firestone A017600335

GUOMAT:2B0335 Specific parameters and specifications:


Nut / Blind Nut


Top Cover Plate Screw (Nut) Tooth : 2 PiecesX3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesX3/8-16UNC
Screw Center Distance of Bottom Cover Plate :70 mm

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/8NPTF

Cover Plate
Top Cover Plate Diameter (Width): 132 mm
Bottom Cover Plate Diameter (Width): 132 mm

Rubber Bellows
Rubber Bellows Natural Diameter : 203mm
Rubber Bellows Natural Height :180 mm

Working Stroke:75MM-230MM

Bumper block / Buffer block
With Bumper Block

Girdle Hoop / Girdle Ring
With Girdle Hoop :One Piece of Girdle Hoop


The structure of the air spring:


1, is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
2, assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
3, according to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
4, the load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.

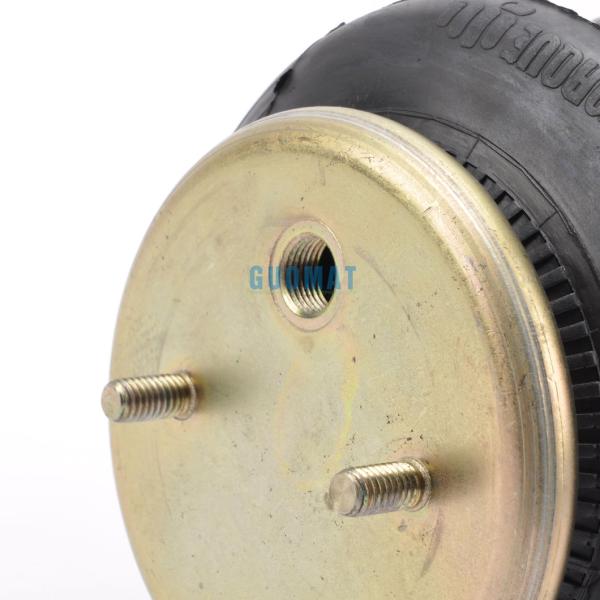

W217600335 Firestone Air Springs A01-760-0335 Plate Screw 2X3/8-16unc Air Helper Springs

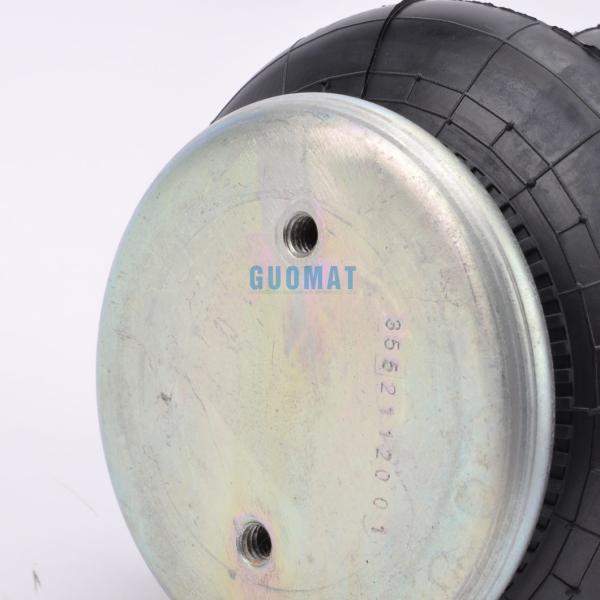

W217600335 Firestone Air Springs A01-760-0335 Plate Screw 2X3/8-16unc Air Helper Springs

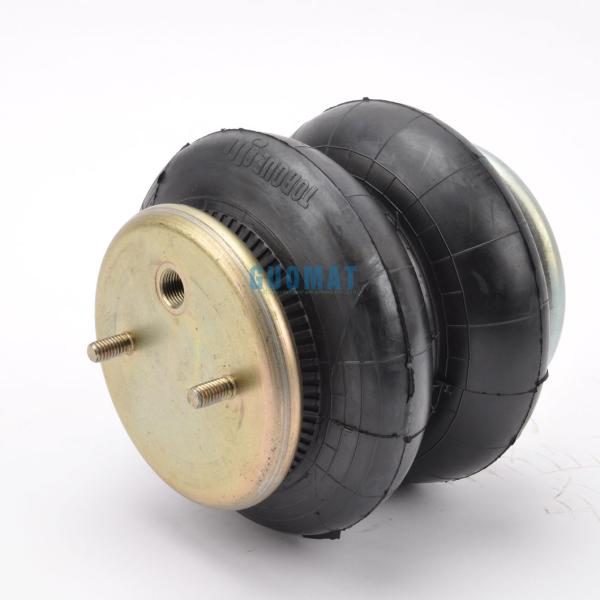

W217600335 Firestone Air Springs A01-760-0335 Plate Screw 2X3/8-16unc Air Helper Springs
