0.2Mpa Contitech Air Bellows 2B15-375 Goodyear Air Spring FD530-30

Categories Goodyear Air Spring
Supply Ability: 1000pcs/week
Payment Terms: T/T, Western Union,Paypal or Others
Place of Origin: Mexico
Brand Name: Goodyear
Certification: ISO/TS16949, ISO9001
MOQ: 3 pieces
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-8 Working Days
Model Number: 2B15-375
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Stroke: 278 mm
Trademark: Goodyear
Transport Package: Carton
Specification: 38*38*22 cm
Origin: Mexico
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: Yes
Type: Shock Absorber
N.W.: 9.1 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

0.2Mpa Contitech Air Bellows 2B15-375 Goodyear Air Spring FD530-30

Double Convoluted 2B15-375 Goodyear Air Springs Bag Ref. to Contitech FD530-30 Firestone W013586800


2B15-375 Goodyear Cross OEM

Goodyear Parts NO.:2B14-468 ;
Goodyear Parts NO.:2B14 468;
Goodyear Parts NO.:2B14468
Goodyear Parts NO.:2B14-362,
Goodyear Parts NO.:2B14 362,
Goodyear Parts NO.:2B14362,
Goodyear Parts NO.:2B14-450,
Goodyear Parts NO.:2B14 450,
Goodyear Parts NO.:2B14450,
Goodyear Parts NO.:2B15-375,
Goodyear Parts NO.:2B15 375,
Goodyear Parts NO.:2B15375

Firestone Parts NO.:W01-358-6800

Firestone Parts NO.::W01 358 6800

Firestone Parts NO.::W013586800
Firestone:21D-2
Firestone:21-2
Firestone:21 2

ContiTech Parts NO:FD530-30 518 1/4 NPT

ContiTech Parts NO::FD530-30518 1/4 NPT


Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm

Cover Plate
Top Cover Plate Diameter (Width): 287 mm
Bottom Cover Plate Diameter (Width): 287 mm

Rubber Bellows
Rubber Bellows MAX Diameter : 401 mm
Compressed Height: 76.2mm / 3 inches
Maximum Height: 351 mm
Working Stroke : 254mm

Bumper block / Buffer block
Without Bumper Block

Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop

Compressed Height: 3.00 inches
Top Plate Number:3131 or 3134
Top Plate Width:11.31 inches
Piston Number:3130
Piston Width:11.31 inches
Firestone Bellows Number:21-2
Triangle Part Number:4518
Triangle Bellows Number:6336
Watson & Chalin #:AS-0034
Note:see W01-358-6808


Maximum diameter @ 100 PSIG (inches)Bead type
162
Maximum height (inches)Blind nut center (inch)
11.76.25
Maximum travel (inches)Air isolator
8.7Design height
Minimum available height (inches)10.5
3Load (at design height): 40 psig (pounds)
80PSI force (lb) at 1 inch stroke3460
11330Load (at design height): 60 psig (pounds)
80PSI force (lb) at 3 inches stroke5350
10670Load (at design height): 80 psig (pounds)
Maximum thrust at maximum stroke @ 80PSI (lbs)7280
5850Natural frequency (@ 80 psig) (cpm)
material95
2 layer standard lineIsolation percentage at a forced frequency of 400 CPM
Finishing details94.1
Isolation percentage at a forced frequency of 800 CPM
98.6

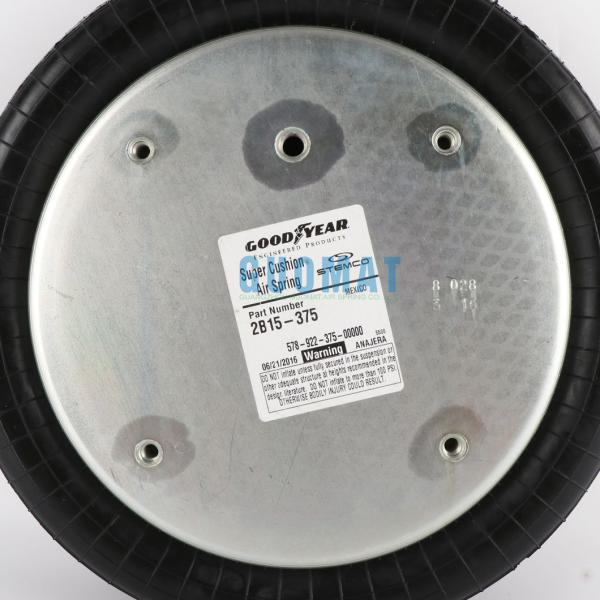

2b15-375 Goodyear Double Convoluted Air Springs Bag Ref. to Contitech Fd530-30 Firestone W013586800

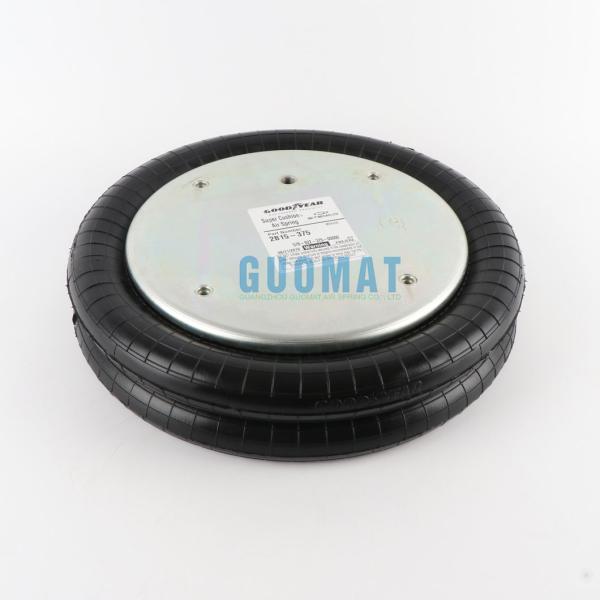

2b15-375 Goodyear Double Convoluted Air Springs Bag Ref. to Contitech Fd530-30 Firestone W013586800
2b15-375 Goodyear Double Convoluted Air Springs Bag Ref. to Contitech Fd530-30 Firestone W013586800

578922366000005789223660000020094692Y2B14-3662B14-366
578922366000042B14-36620094693N2B14-366 Bellows Air Spring2B14-366 Bellows Air Spring
578922367000005789223670000020094697Y2B14-3672B14-367
578922367000042B14-36720035802N2B14-367 Bellows Air Spring2B14-367 Bellows Air Spring
578922369000005789223690000020094702Y2B14-369 EXT2B14-369 EXT
578922375000005789223750000020094705N2B15-3752B15-375
578922375000045789223750000420116535Y2B15-3752B15-375
578922375000195789223750001920094706YENIDINE YI-2B15-375ENIDINE YI-2B15-375
578922376000005789223760000020094707Y2B15-3762B15-376
578922376000045789223760000420116536Y2B15-3762B15-376
578922376000195789223760001920094708YENIDINE YI-2B15-376ENIDINE YI-2B15-376
578922377000005789223770000020094709Y2B15-3772B15-377
578922377000042B15-37720116537N2B15-3772B15-377
578922377000195789223770001920094710YENIDINE YI-2B15-377ENIDINE YI-2B15-377
578922378000005789223780000020094711Y2B15-3782B15-378
578922378000045789223780000420116538Y2B15-3782B15-378
578922378000195789223780001920094712YENIDINE YI-2B15-378ENIDINE YI-2B15-378
578922383000005789223830000020119612Y2B14-3832B14-383
578922383000042B14-38320119613N2B14-383 Bellows Air Spring2B14-383 Bellows Air Spring
578922383000775789223830007720215643Y2B14-383 WATSON & CHALIN AS00892B14-383 WATSON & CHALIN AS0089
578922383000825789223830008220657134Y2B14-383 Torshin2B14-383 Torshin
578922383001115789223830011120662408Ydummy for 2b14-383dummy for 2b14-383
578922384000005789223840000020143080Y2B15-384 DALLAS SMITH DSC 10-10482B15-384 DALLAS SMITH DSC 10-1048
578922385000005789223850000020371564Y2B14-3852B14-385
578922386000945789223860009420806168YC 2B15-375C 2B15-375
578922387000915789223870009120806482YP 2B14-383P 2B14-383
578922388000915789223880009120806483YP 2B14-462P 2B14-462
578922389000945789223890009420810062YC 2B10-226C 2B10-226
578922390000905789223900009020811264YC 2B14-462C 2B14-462
578922391000905789223910009020811288YC 2B14-383C 2B14-383
578922392000905789223920009020811289YC 2B12-346C 2B12-346
578922402000005789224020000020094715Y2B12-4022B12-402
578922402000042B12-40220035803N2B12-402 Bellows Air Spring2B12-402 Bellows Air Spring
578922406000005789224060000020094724Y2B12-4062B12-406
578922406000042B12-40620094725N2B12-406 Bellows Air Spring2B12-406 Bellows Air Spring
578922410000005789224100000020094740Y2B12-4102B12-410
