| Categories | Yokohama Air Spring |
|---|---|
| Brand Name: | AIRSUSTECH |
| Model Number: | F-550-3 |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Guangzhou, China |
| MOQ: | 3 pieces |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Delivery Time: | 3-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| N.W.: | 17.0 Kg |
| Warranty: | One Year |
| Pressure Ability: | 0.2-0.88 MPa |
| Design High: | 210 mm |
| Color: | Black |
| Bumper Block: | Without |
| Minimum Height: | 120 mm |
| Stroke: | 120 mm |
| Max Diameter: | 640 mm |
| Vibration Frequency: | 1.9 Hz |
| Trademark: | Neutral |
| Transport Package: | Cartons |
| Specification: | 600mm*600mm*230mm |
| Origin: | China |
| HS Code: | 8708809000 |
| Port: | Huangpu, China |
| Function: | Reduce Vibration |
| Material: | Rubber |
| Usage: | Industrial |
| Load Type: | Compression |
| Production Process: | Vulcanization |
| Shape: | Convoluted |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

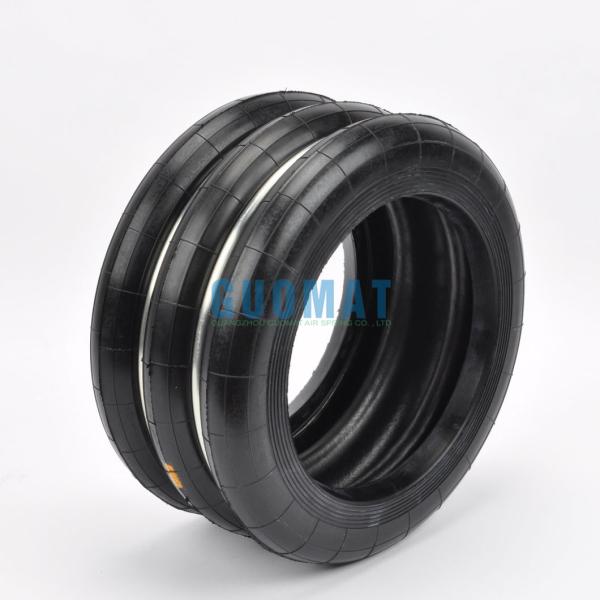

AIRSUSTECH F-550-3 Cross other OE:
AIRSUSTECH Part No.: F-550-3
Yokohama Part No.: S-550-3
Yokohama Part No.: S550-3
Yokohama Part No.: S-550-3R
Yokohama Part No.: S550-3R
Quick details of F-550-3 Replaces S-550-3R YOKOHAMA:
Net Weight:17.0 KG
Gross Weight:19.0 KG
Package Size:600mm*600mm*230mm
Compressed height:120mm
Maximum Height:240mm
Full stroke:120mm
Working medium:water, air
Working pressure:< 0.7Mpa
Burst pressure:> 1.6Mpa
Endurance cycle:> 10"
Temperature:-35℃ ~+60℃
Detailed Parameter Table of F-550-3 Replaces S-550-3R YOKOHAMA:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-550-3 | S-550-3 | 160 | 270 | 90 | ±68 | 610 |
| Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||
| 2380 | 37 | 116.7 | 1481 | 1.8 | 0.69 | 3.9-4.9 |
This item can fits for many kinds of machines
| Bearing load Power (kg) | Inflation pressure | 0.2MPa | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | 0.7MPa | 0.8MPa | 0.7MPa Volume(dm³) |
|---|---|---|---|---|---|---|---|---|---|
| Installation height | |||||||||
| 114(mm) | 5741 | 8463 | 11121 | 13949 | 16615 | 19487 | 22051 | 30.06 | |
| 136(mm) | 5425 | 8175 | 10798 | 13470 | 16220 | 19003 | 21569 | 34.38 | |
| 158(mm) | 5194 | 7896 | 10486 | 13065 | 15823 | 18502 | 21062 | 38.93 | |
| 180(mm) | 5047 | 7658 | 10246 | 12697 | 15431 | 17958 | 20455 | 44.30 | |
| 210(mm) | 4878 | 7342 | 9898 | 12378 | 14912 | 17430 | 19884 | 48.66 | |
| 240(mm) | 4640 | 6974 | 9320 | 11690 | 14190 | 16483 | 18865 | 54.73 | |
| 265(mm) | 4385 | 6645 | 8862 | 11082 | 13463 | 15711 | 18045 | 61.10 | |
| Stiffness and frequency at design height | Vertical stiffness(Kg/cm) | 466 | 649 | 781 | 965 | 1137 | 1303 | 1435 | |
| Stiffness and frequency at design height | Vertical stiffness Hz | 1.58 | 1.51 | 1.43 | 1.42 | 1.40 | 1.39 | 1.36 | |
| Stiffness and frequency at design height | Vertical stiffness cpm | 95 | 91 | 86 | 85 | 84 | 83 | 82 |




|
