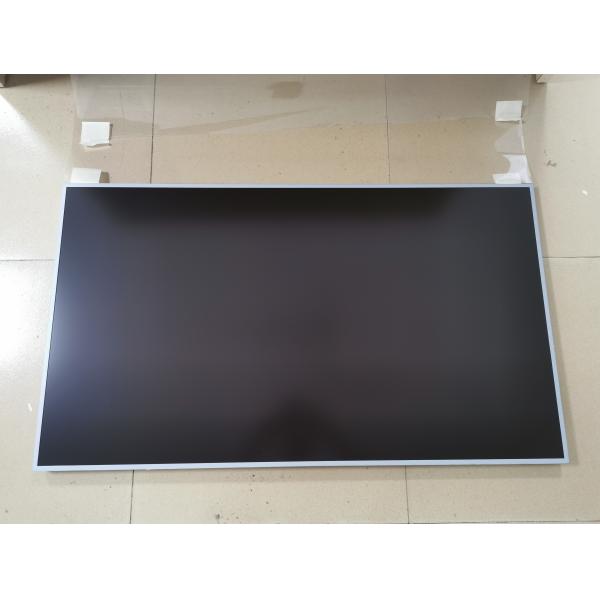

3840×2160 103PPI WLED TFT Display 350cd/m2 LC430EQE-FHA1 43"89/89/89/89 (Typ.)(CR≥10)

3840×2160 103PPI WLED TFT Display 350cd/m2 LC430EQE-FHA1 43"89/89/89/89 (Typ.)(CR≥10)

3840×2160 103PPI WLED TFT Display 350cd/m2 LC430EQE-FHA1 4389/89/89/89 (Typ.)(CR≥10)
3840×2160 103PPI WLED TFT Display 350cd/m2 LC430EQE-FHA1 43"89/89/89/89 (Typ.)(CR≥10)
Categories Industrial TFT Display
Brand Name: LG DISPLAY
Model Number: LC430EQE-FHA1
Certification: ISO9001
Place of Origin: JAPAN
MOQ: 1PCS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Delivery Time: 1-2 DAYS
Packaging Details: STANDARD PACKING
MODEL NUMBER: LC430EQE-FHA1
BRAND: LG DISPLAY
SIZE: 43 inch
BRIGHTNESS: 350CD/M2
Lamp Type: WLED
RESOLUTION: 3840(RGB)×2160 [UHD] 103PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10)
TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Contact Now
Company Info.
Sapientia Display Co.,LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3840×2160 103PPI WLED TFT Display 350cd/m2 LC430EQE-FHA1 43"89/89/89/89 (Typ.)(CR≥10)

LG Display LC430EQE-FHA1 Application Details

Basic Info :
Panel Brand

LC430EQE-FHA1Panel Model
Diagonal Size
43"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LC430EQE (FH)(A1)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C

LG Display LC430EQE-FHA1 Mechanical Details

Pixel Features :
Pixel Format
3840(RGB)×2160, UHD
Dot Pitch
0.0817×0.2451 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2451×0.2451 mm (H×V) [103PPI]
Mechanical Size :
Display Area
941.184×529.416 mm (H×V)
Bezel Area
946.2×534.4 mm (H×V)
Outline Dim.
962×554.8 mm (H×V)
Outline Depth
21.4/36.6 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Other Features :
Weight
7.50/8.50Kgs (Typ./Max.)
Surface
Antiglare (Haze 44%), Hard coating (2H)

LG Display LC430EQE-FHA1 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Min.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
6 (Typ.)(G to G) ms
Color Performance :
Chromaticity
Wx:0.281; Wy:0.288
Color Numbers
16.7M (8-bit)
Color Temperature
9966K
Uniformity
1.43 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
98% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LC430EQE-FHA1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
30K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Lamp Electrical :
Voltage Input
48.8±8.V
Current Input
160mA (Typ.)
Consumption
46.9/54.5W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
UJU
HS100-L08N-N62
1.0 mm
8 pins
1 pcs
BLE-8PINS-CCCNNNNA
UJU
HS100-L08N-N62-A
1.0 mm
8 pins
1 pcs
BLE-8PINS-ANNNNCCC

LG Display LC430EQE-FHA1 Interface Detail

Signal Systerm :
V-by-One 8 lane
Logic Voltage
-
Signal Electrical :
Voltage Input
12.0V (Typ.)
Current Input
510/663mA (Typ./Max.)
Consumption
6.12/7.95W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
FI-RE51S-HF
0.5 mm
51 pins
1 pcs

LG Display LC430EQE-FHA1 Carton Details

Package Carton :AmountNet WeightCarton Size (L×W×H)
26 pcs / box-1300×1140×746 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
