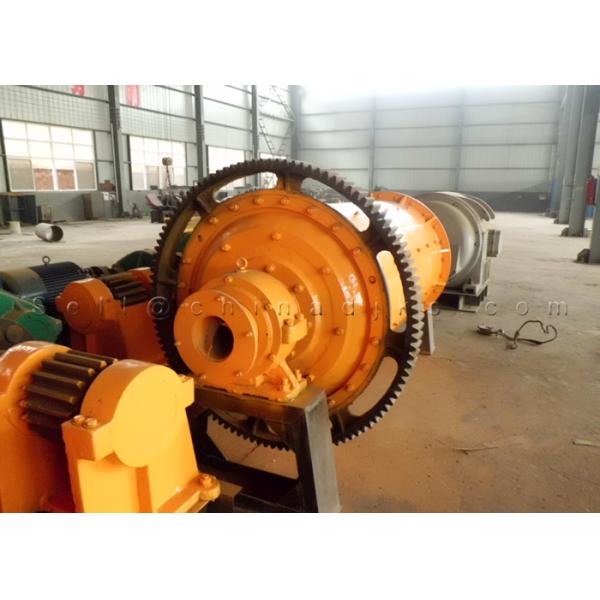

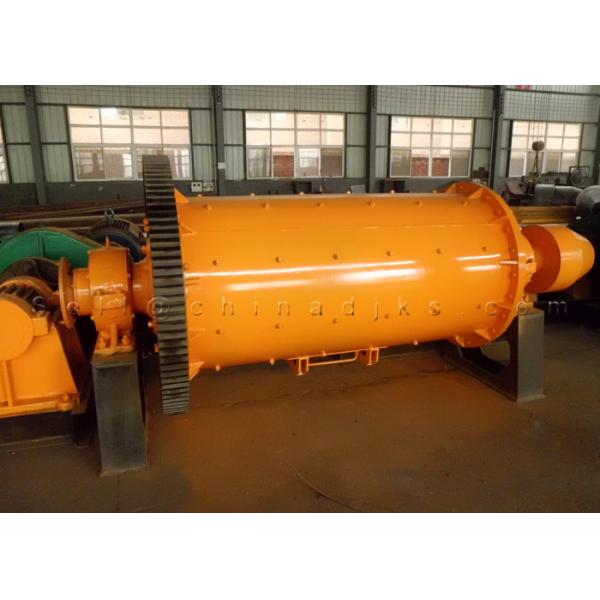

1.5t/H 900*1800mm Tumbling Ball Mill For Mineral Powder Grinding

1.5t/H 900*1800mm Tumbling Ball Mill For Mineral Powder Grinding

Grinding elements in ball mills travel at different velocities. Therefore, collision force, direction and kinetic energy between two or more elements vary greatly within the ball charge. Frictional wear or rubbing forces act on the particles, as well as collision energy. These forces are derived from the rotational motion of the balls and movement of particles within the mill and contact zones of colliding balls.

By rotation of the mill body, due to friction between mill wall and balls, the latter rise in the direction of rotation till a helix angle does not exceed the angle of repose, whereupon, the balls roll down. Increasing of rotation rate leads to growth of the centrifugal force and the helix angle increases, correspondingly, till the component of weight strength of balls become larger than the centrifugal force. From this moment the balls are beginning to fall down, describing during falling certain parabolic curves

Technical Detail:

Shell Diameter: 900mm

Shell Length: 1800mm

Rotary Speed: 36r/min

Ball load (grinding media): 1.5t

Feeding size: ≤20mm

Motor: 18.5kw

Gearbox: JR10

Volume: Approx. 1.15m3

Output size: 0.074-0.4mm

Capacity: 0.6-1.5t/h

Weight: 4.6t

Shell Material: Q235

Material thickness: 10mm

Hengyang Industry is an Chinese Company based in Zhengzhou city that manufactures, on proprietary technology, plants and equipment for waste recycling and recovery with energy production, material recovery or production of finished goods.

Innovation, R&D, passionate and skilled team along with the customer satisfaction have always been the success of Hengyang and they still are the peculiarities of our Company. Besides the historical Hengyang equipment, like single and double shafts shredders, Crushing machine, briquetting machines, separators, squeezers and centrifuges, the Company offers a wide range of turn-key plants, among which:

• briquetting and pelletizing plants
• shredding plants
• Waste Sorting Plants
• Bio-fuel Plants
• Waste to Power Recycling Plants
• Mining Plants
• OEM Equipments
……..
Hengyang is able to develop customized solutions too.
Designed, constructed and assembled by the same Hengyang

The Company policy focuses on product quality: robustness and functionality of the machines that maintain their value over time.
The ability to challenge ideas and concepts and to interact with partners worldwide has allowed and still allows Hengyang to stay highly competitive and to be an ideal partner for the world market.
