| Categories | Aluminum Feed Beam Profiles |
|---|---|
| Brand Name: | HUANYU |
| Model Number: | HYAEP7020 |
| Place of Origin: | People's Republic of China |
| MOQ: | 5 Units |
| Price: | US$2099-US$3999/Unit |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 50Units/Month |
| Delivery Time: | 3 Days |
| Packaging Details: | Plywood Case Length 400cm to 700cm |
| Weight: | 49KGS Per Meter |
| Length: | 23 Feet (7010mm) |
| Surface Treatment: | Mill Finish |
| Material: | 7000 Series Aluminum Alloy |
| Application: | Atlas Submercible Drilling Machine |
| Availability: | 13 Metric Tones Per Month |
| Company Info. |
| Chongqing Huanyu Aluminum Material Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

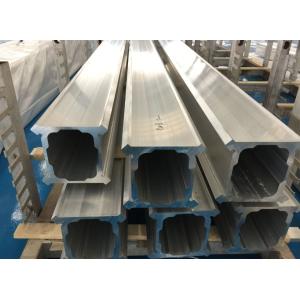

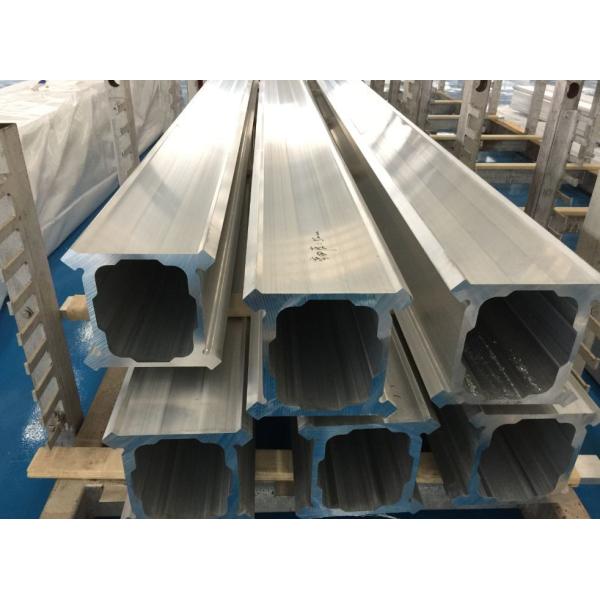

Aluminium Extruded Profiles Used On Atlas Submersible Drilling Machine In Mining Industry
1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5
degrees for whole length;
curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks,
dings, scratches .
6. Length Option: ranging from 2,100mm to 7,100mm
7. Atlas Feed Beam can be machined as per buyers' demand
8. Net Weight: 26kgs/meter
9. Package : Plywood case for Feed Beam
10. Single package size: Length x Width x Height = 723cm X43cm X 43 cm
| Material Option | Aluminum Alloy 7020 |
| Heat Treatment | T6 Temperature |
| Standards | GB/T6892-2006 |
| Mechanic | σb≥320MPa, σ0.2≥270MPa, δ5≥8% |
| Feed Beam Surface | Free from manufacturing defects, such as nicks, dings, scratches |
| FB Length Option | Standard 16FT (4876mm)/ Ranging from 2100mm to 7100mm |
| Longitudianl Deviation | 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length |
|
