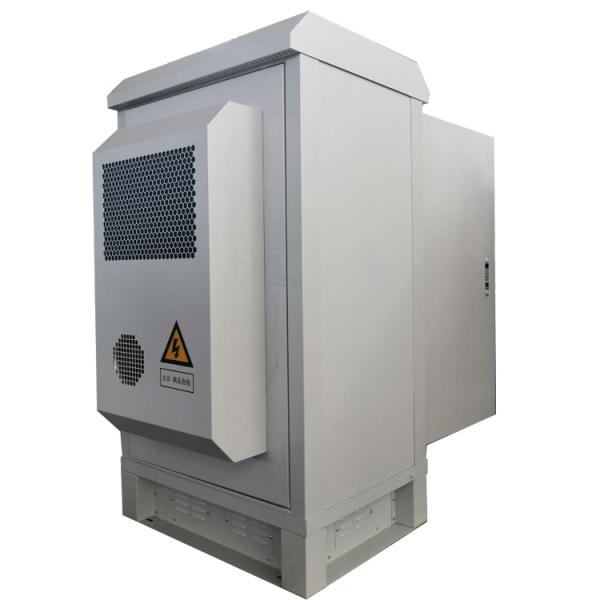

19" Rack Outdoor Communications Enclosure

Double Door with cooling Outdoor Rack 19inch Cabinet Outdoor Communication Cabinet

Product Description

- Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.

- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.

- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.

- Can be installed in any difficult places include the top of mountain and the roof of buildings.

- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.

Product Features

Attractive powder coat finish
Galvanised steel base
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
IP55 cabinet, walls and roof in double steel with high quality insulation
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
High performance Air-conditioning unit for heat removal
Door stopper to hold door open at service
Pass earthquake intensity 8 anti-seismic performance test

Internal Dimension(H*W*D): Standard 1400*650*650mm or any customized size
External Dimension(H*W*D): Standard 1700*750*750mm or any customized size
Weight:100~225kgs according to different size
Layout 1 compartment for battery and equipment cabinet, 1~2 for integrated cabinet
Door: With one front door, with special lock for outdoor cabinet (support padlock) Hinge Embedded
Material : Galvanized steel; double wall, thickness of outer plate: 0.5~1.5mm,thickness of inner plate: 0.5~0.8mm. Or customer requirement.
Cable enter method Bottom: φ50*5 or customer requirement.
Color: RAL7035/Pantone428C, powder coating finish
Battery Space: 2-4 shelves or customer requirement
Battery Load:500kgs per shelve
Equipment Installation Method: 19" rack
Noise Level: 60-65dB
Cooling: AC220V air conditioner + DC48V fans

Options
AC/DC powered air-conditioner/Heat Exchanger/TEC
Lighting
LED lamp
48V LED lamps, it will turn on when the door is opened; it will turn off when the door is closed.

Temperature
Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
