1550m3/h 1780CFM Cross Flow Residential Door Air Curtain

Categories	Door Air Curtains
Brand Name:	NANYOO / OEM / ODM
Model Number:	FM-1009H3-2(Y)
Certification:	CE/CB/CCC
Place of Origin:	China
MOQ:	1 unit
Price:	Negotiated
Payment Terms:	L/C, T/T, D/P, Western Union
Supply Ability:	15000 pcs per month
Delivery Time:	30-35 work days
Packaging Details:	Carton With Foam Protection
Type:	Air Curtain , Commercial / Household / Indoor
Product Name:	Commercial air curtain, Remote Control Cross Flow Strong Wind Low Noise Metal Door Air Curtain
Speed:	1 or 2 speeds for options
Operating voltage:	230 VAC, 220V, 115 VAC
Mounting:	Door / Wall / Window Mount, Other
Mounting Height:	2.3-3 m
Air flow:	1780 CFM
Color:	White & black , Customer Requirements

Contact Now

Add to Cart

Company Info.

Foshan Nanhai Nanyang Electric Appliance & Motor Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

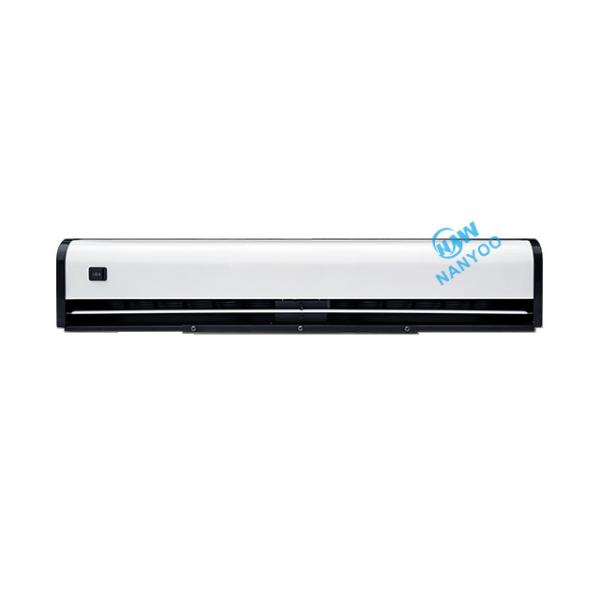

1550m3/h 1780CFM Cross Flow Residential Door Air Curtain

Commercial Economical Type Cross Flow Residential Door Air Curtain

Suitable For Business Shop / Office Building

Model H3 Door Air Curtain - Latest metal plus plastic grill design, impact and grace outlooks.

PRODUCTS PARAMETERS

Voltage/Frequency:220 - 240V / 50Hz , or 110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available

Model	Diameter of Impeller	Input Power	Air Velocity	Air Volume	Noise	Fuselage Size	Mounting Height
Model	(mm)	(W)	(m/s)	(m³/h)/CFM	(dB)	(mm)	(m)
FM-1009H3-2(Y)	100	100	10-11	1550	≤45	910×178×176	2.3-3
FM-1010H3-2(Y)	100	115	10-11	1720	≤45	1005×178×176	2.3-3
FM-1012H3-2(Y)	100	135	10-11	2130	≤46	1205×178×176	2.3-3
FM-1015H3-2(Y)	100	150	10-11	2650	≤48	1500×178×176	2.3-3
FM-1018H3-2(Y)	100	180	10-11	3200	≤50	1795×178×176	2.3-3
FM-1020H3-2(Y)	100	185	10-11	3550	≤52	2000×178×176	2.3-3

Options model with high speed or with electrical heating /

Multiple voice noise reduction technology more quiet , noise low for 45dB .

Fashion design , won't be rusty and discoloration
The body is without visible screw, elegant appearance

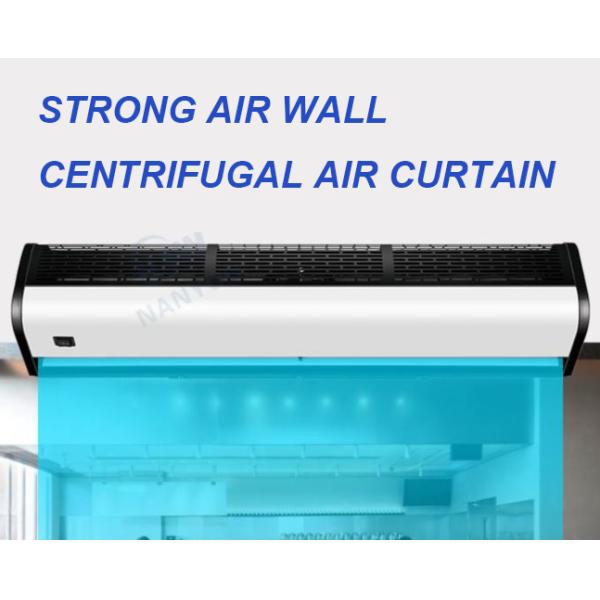

Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity
Adopting updated remote control with high and low speeds operation

Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and other
entrances of high-grade places etc
Installation height: 2.3-3m

Professional air duct design can realize more silent effect and superior performance of the product
High-quality ball bearing to ensure motor running more smoothly and silent
