| Categories | Thin Stainless Steel Wire |
|---|---|
| Brand Name: | LONGKUO METAL WIRE MESH |
| Place of Origin: | CHINA |
| MOQ: | 1 Coil / Spool or Negotiable |
| Price: | $2 ~ 4 / kg |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000tons/year |
| Delivery Time: | About 7 work days depends on the supply |
| Packaging Details: | Wooden box or plastic spool or steel spool or coil |
| Product name: | Hydrogen Wire |
| Steel Grade: | Stainless Steel 201 |
| Diameter Range: | 0.09mm - 0.45mm |
| Type: | In Spool |
| Quality: | High |
| Packing: | Wooden box or plastic spool or steel spool or coil |
| Sample: | Small Sample Free |
| Application: | Construction, Spring, Screw, Weaving, Manufacturing |
| Length: | No limited |
| We are factory: | Low MOQ, Lowest price and the best service |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

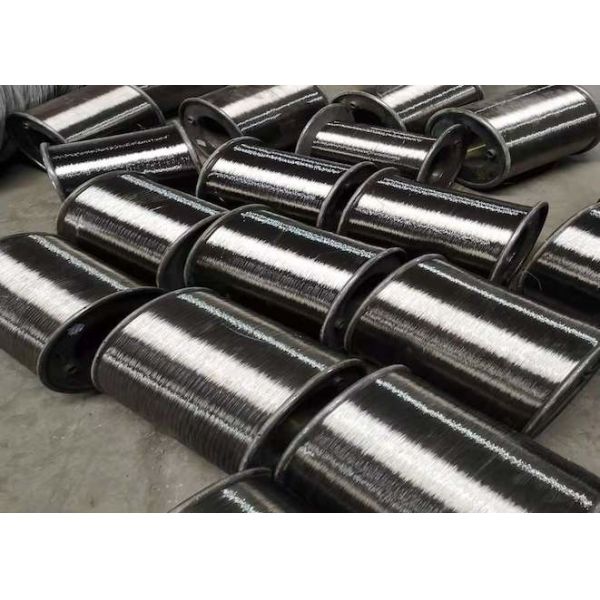

Diameter Range 0.09mm - 0.45mm In Spool Steel Grade Stainless Steel 201 Hydrogen Wire
Product Information
Stainless steel wire, also known as stainless steel wire, is made of stainless steel as raw material for various kinds of silk products of different specifications and models. The cross section is generally round or flat. The common stainless steel wires with good corrosion resistance and high cost performance are 201, 304 and 316 stainless steel wires.
Technology
Stainless steel wire drawing is a metal plastic processing process in which the wire rod or wire blank is pulled out from the die hole of drawing die under the action of drawing force to produce small section steel wire or non-ferrous wire. Wire with different cross section shape and size of various metals and alloys can be produced by drawing. The drawn wire has the advantages of accurate size, smooth surface, simple drawing equipment and die, and easy manufacturing.
Service
Our company can produce and process and order according to customer requirements, and have a large number of stock in stock in regular specifications all year round.
Specifications
| Name | Code | Characteristics | Specification | Material |
Stainless steel soft wire / Hydrogen wire | S, soft | Bright surface, soft, no magnetism, fatigue resistance, large extension force and other characteristics | 0.09 — 0.45mm | 201, 304, 304L, 316, 316L, 310, 310S, 321, etc. |
Stainless steel light cable | LD, lightly drawn | After heat treatment, the steel wire shall be pulled with small reduction surface. The surface is bright, soft, fatigue resistant, and has certain elongation. | 0.5 — 1.5mm | 201, 304, 304L, 316, 316L, etc. |
Stainless steel cold cable | WCD, cold drawn | The surface is smooth, toughness is good and wear resistant | 0.03 — 6.0mm | 201, 304, 304L, 316, 316L, etc. |
Stainless steel spring wire | - | High hardness, strong elasticity, good wear resistance and compression resistance | 0.15 — 5.0mm | 302, 304H, 304L, 316, 316L, 310, 310S, 321, etc. |
Material composition table
AISI Material | Chemical composition (%) | |||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Cu | Ti | |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.06 | ≤0.03 | 3.5~5.5 | 16~18 | - | - | - |
| 304 | <0.08 | <1.0 | <2.0 | <0.035 | <0.03 | 8~10 | 17~19 | - | - | - |
| 304L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 9~13 | 18~20 | - | - | - |
| 304HC | <0.06 | <1.0 | 1.2-1.8 | <0.035 | <0.03 | 8~11 | 17~19 | - | 2.0-3.0 | - |
| 316 | <0.08 | <1.0 | <2.0 | <0.04 | <0.03 | 10~14 | 16~18 | 2.0~3.0 | - | - |
| 316L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 12~15 | 16~18 | 2.0~3.0 | - | - |
| 310S | <0.08 | <1.5 | <2.0 | <0.04 | <0.03 | 19~22 | 24~26 | - | - | - |
| 321 | <0.08 | <1.0 | <2.0 | <0.045 | <0.03 | 9~13 | 17~19 | - | - | >0.035 |
| 301 | <0.15 | <1.0 | <2.0 | <0.04 | <0.03 | >7 | 16~18 | - | - | - |
| 302 | <0.15 | <1.0 | <2.0 | <0.04 | <0.03 | >8 | 17~19 | - | - | - |
Product specification parameter table
| Wire diameter(mm) | Tolerance(mm) | Maximum diameter deviation(mm) |
| 0.020-0.049 | +0.002 -0.001 | 0.001 |
| 0.050-0.074 | ±0.002 | 0.002 |
| 0.075-0.089 | ±0.002 | 0.002 |
| 0.090-0.109 | +0.003 -0.002 | 0.002 |
| 0.110-0.169 | ±0.003 | 0.003 |
| 0.170-0.184 | ±0.004 | 0.004 |
| 0.185-0.199 | ±0.004 | 0.004 |
| 0.-0.299 | ±0.005 | 0.005 |
| 0.300-0.310 | ±0.006 | 0.006 |
| 0.320-0.499 | ±0.006 | 0.006 |
| 0.500-0.599 | ±0.006 | 0.006 |
| 0.600-0.799 | ±0.008 | 0.008 |
| 0.800-0.999 | ±0.008 | 0.008 |
| 1.00-1.20 | ±0.009 | 0.009 |
| 1.20-1.40 | ±0.009 | 0.009 |
| 1.40-1.60 | ±0.010 | 0.010 |
| 1.60-1.80 | ±0.010 | 0.010 |
| 1.80-2.00 | ±0.010 | 0.010 |
| 2.00-2.50 | ±0.012 | 0.012 |
| 2.50-3.00 | ±0.015 | 0.015 |
| 3.00-4.00 | ±0.020 | 0.020 |
| 4.00-5.00 | ±0.020 | 0.020 |
Characteristics
1. It has strong heat resistance.
316 stainless steel no matter it is used intermittently at 1600 ℃ or continuously at 1700 ℃, there will not be any change, let alone melting, which has obvious advantages compared with copper and aluminum. Because of such advantages, it is widely used in the metallurgical industry and has made great contribution to the industry.
2. It has corrosion resistance.
Because his raw material is stainless steel, and stainless steel contains carbon, manganese, nickel and other elements, after the reaction in the air, it will form a protective film, which can reduce the impact of the outside world on stainless steel. Stainless steel is not easy to react with acid and alkali, and has good corrosion resistance, so it will be found that stainless steel wire plays a very extensive role in the paper industry and deep-sea operators.
3. It has strong plasticity.
This property can make it into various shapes under the condition of external force. This is a rare decorative material for designers, because of its low hardness, it can be changed into various shapes according to the demand, so as to achieve the purpose of decoration, with a strong decorative effect. It is precisely because it has obvious advantages compared with iron, aluminum, copper, etc., so now people use it much more.
|
