30mm Galvanized Steel Wire Rope Single Leg Sling

30mm Galvanized Steel Wire Rope Single Leg Sling

30mm Galvanized Steel Wire Rope Single Leg Sling
30mm Galvanized Steel Wire Rope Single Leg Sling
Categories Wire Rope Sling Assembly
Brand Name: An Feng / AF
Model Number: CSSWS30
Certification: CE, ISO 9001
Place of Origin: China
MOQ: 500 pcs
Price: Call or Email for quote
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month
Delivery Time: Within 45 days after order confirmation
Packaging Details: Carton + pallet, wooden box, or custom
Standard: EN 13411-3: 2003, EN 13411-3: 2004, GB/T 16762-2009, GB/T 14737-2009
Material: Galvanized steel wire rope with steel core
Safety Factor: 5:1
Strength: 1770 MPa
Length: Customized
Key word: Single Leg wire rope sling, wire rope with Flemish Eye Sleeve and Thimble, steel core, sling assembly
OEM or ODM services: Yes, upon request
Place of origin: Shanghai or Guangzhou, China
Packing: Carton + pallet, wooden box, or custom
Contact Now
Company Info.
Shanghai Anfeng Lifting & Rigging LTD.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

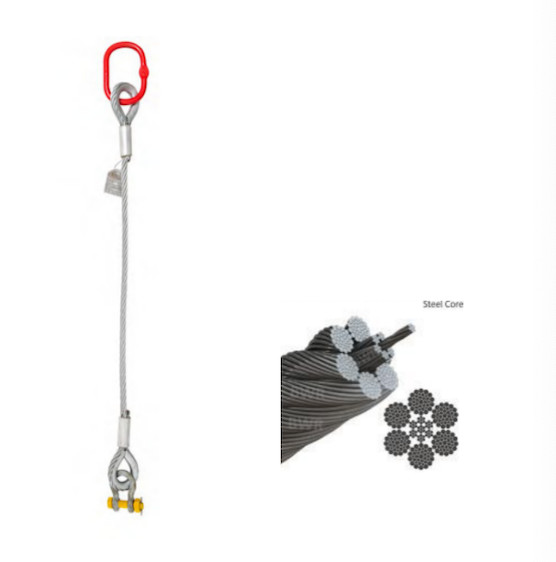

30mm Galvanized Steel Wire Rope Single Leg Sling

30mm Single leg steel wire rope slings, steel core, swaged wire rope with Flemish Eye Sleeve and Thimble, equipped with Master Link
Single leg wire rope sling assembly, steel core
Product Description
Single leg, Flemish Eye Sleeve or Mechanical Spliced Wire Rope Slings with steel core provide additional security to lifting applications. What's more, they are superior to return loop slings during use.
You will often see equipment of this nature being swaged, which means that the end has been folded back on itself, and spliced into the rope. While an eye on its own is strong, a thimble would help improve sling longevity by protecting the rope at connection points.
A thimble eye can be pressed with a ferrule, using many tonnes of force to provide a strong connection. This creates a strong eye-shaped loop, which can then be utilised with various other pieces of equipment. For example, it could be used as a balustrade with each end looping over a hook.
Specification
20mm Single leg steel wire rope slings, steel core, swaged wire rope with Flemish Eye Sleeve, Thimble and Master Link 020mm Single leg steel wire rope slings, steel core, swaged wire rope with Flemish Eye Sleeve, Thimble and Master Link 120mm Single leg steel wire rope slings, steel core, swaged wire rope with Flemish Eye Sleeve, Thimble and Master Link 2
Product Code
Rope dia.

(mm)
6x37 (a) + IWRC, 1770 MPa
WLL
(t)
Master Link dimension
d1×A×B

(mm)
 Equipped with
Hook Shackle
Load capacity
Gape
C
Load capacity
dimension
d2×E×F
(t)
(mm)
 (t)
(mm)
CSSWH11 CSSWS11 11.0 1.4 16×140×80 1.5 24.6 1.5 13×19×42
CSSWH12 CSSWS12 12.0 1.66 16×140×80 2.0 26.9 2.0 16×21×47
CSSWH13 CSSWS13 13.0 1.95 16×140×80 2.0 26.9 2.0 16×21×47
CSSWH14 CSSWS14 14.0 2.27 16×140×80 3.0 30.2 3.25 19×27×60
CSSWH15 CSSWS15 15.0 2.6 16×140×80 3.0 30.2 3.25 19×27×60
CSSWH16 CSSWS16 16.0 2.96 16×140×80 3.0 30.2 3.25 19×27×60
CSSWH18 CSSWS18 18.0 3.75 20×160×95 4.5 38.1 4.75 22×32×71
CSSWH20 CSSWS20 20.0 4.62 20×160×95 7.0 45.0 4.75 22×32×71
CSSWH22 CSSWS22 22.0 5.6 26×190×110 7.0 45.0 6.5 25×37×84
CSSWH24 CSSWS24 24.0 6.7 26×190×110 7.0 45.0 8.5 28×43×95
CSSWH26 CSSWS26 26.0 7.8 26×190×110 11.0 61.0 8.5 28×43×95
CSSWH28 CSSWS28 28.0 9.1 26×190×110 11.0 61.0 9.5 32×46×108
CSSWH30 CSSWS30 30.0 10.4 32×230×130 11.0 61.0 12.0 35×52×119
CSSWH32 CSSWS32 32.0 11.8 32×230×130 15.0 66.6 12.0 35×52×119
CSSWH34 CSSWS34 34.0 13.4 32×230×130 15.0 66.6 13.5 38×57×131
CSSWH36 CSSWS36 36.0 15.0 38×275×150 15.0 66.6 17.0 42×61×148
CSSWH38 CSSWS38 38.0 16.7 38×275×150 22.0 86.6 17.0 42×61×148
CSSWH40 CSSWS40 40.0 18.5 38×275×150 22.0 86.6 25.0 51×73×177
CSSWH42 CSSWS42 42.0 20.4 38×275×150 22.0 86.6 25.0 51×73×177
CSSWH44 CSSWS44 44.0 22.4 45×340×180 30.0 101.6 25.0 51×73×177
CSSWS46 CSSWS46 46.0 24.5 45×340×180 30.0 101.6 25.0 51×73×177
CSSWH48 CSSWS48 48.0 26.6 45×340×180 30.0 101.6 35.0 57×83×197
CSSWH50 CSSWS50 50.0 28.9 45×340×180 30.0 101.6 35.0 57×83×197
CSSWH52 CSSWS52 52.0 31.3 45×340×180 37.0 108.0 35.0 57×83×197
CSSWH54 CSSWS54 54.0 33.7 50×350×190 37.0 108.0 35.0 57×83×197
CSSWH56 CSSWS56 56.0 36.3 50×350×190 37.0 108.0 55.0 70×105×267
CSSWH58 CSSWS58 58.0 38.9 50×350×190 45.0 120.0 55.0 70×105×267
CSSWH60 CSSWS60 60.0 41.6 56×400×200 45.0 120.0 55.0 70×105×267
Note:
1. Reference standard: EN 13411-3: 2003, EN 13411-3: 2004, GB/T 16762-2009, GB/T 14737-2009.
2. Surface treatment of wire ropes can be galvanized and grease free, galvanized with grease and uncoated with grease.
3. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
4. Safety factor of the rigging is 5:1.
5. Safety factor of the Master Link and Hook is 4:1.
6. Safety factor of the shackle is 6:1.
About Anfeng Lifting & Rigging
Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
