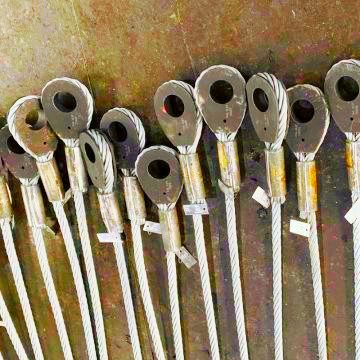

Ductile Iron 28mm Solid Thimble Wire Rope Sling Assembly

28mm Wire Rope Sling with Solid Thimble Eye, Eye Sling, greater protection against wear and deformation of rope eye

Wire Rope Sling and Wire Rope attachment

Product Description

Our Solid Thimbles are used to protect the eyes of cable and wire rope slings from abrasion by providing a solid steel barrier between the fragile cable strands and the other rigging fitting used in the connection.

They are designed according to GB/T 5974.2-2006 for making a 'hard' eye with wire rope, it creates a loop at wire rope ends. The thimbles provide a means for connecting wire rope to attachments.

Important features:

- Recommended used for wire ropes sized from 8mm to 60mm.
- Wire rope with 8mm to 32mm in diameter are equipped with Solid Thimble that made of cast steel.

- Wire rope with 36mm to 60mm in diameter are equipped with Solid Thimble that made of ductile cast iron. Ductile iron offers increased fatigue- and impact-resistance over cast iron due to the inherent shape of its nodular graphite inclusions.

- Finish: self coloured, rust coloured.
- Sizes for the hole of the thimble can be customized upon request.

Specification

Product code

Rope dia.

(mm)

Dimensions (mm)

Weight

(kg)

max

min

max

TGH-01

9.2

8.6

14.0

-1.4

+0.149 +0.065

±2

±3

＋3 0

6.0

0.08

TGH-02

11.5

10.8

17.5

7.5

0.17

TGH-03

13.8

12.9

21.0

9.0

0.32

TGH-04

16.1

15.1

24.5

+0.180 +0.080

104

10.5

0.50

TGH-05

18.4

17.2

28.0

-2.8

±4

112

±6

118

＋6 0

12.0

0.78

TGH-06

20.7

19.4

31.5

126

133

13.5

1.14

TGH-07

23.0

21.5

35.0

100

140

148

15.0

1.41

TGH-08

25.3

23.7

38.5

+0.220 +0.100

110

154

163

16.5

1.96

TGH-09

27.6

25.8

42.0

-3.4

120

±6

168

±9

178

＋9 0

18.0

2.41

TGH-10

29.9

28.0

45.5

130

182

193

19.5

3.46

TGH-11

32.2

30.1

49.0

140

196

207

21.0

4.30

TGH-12

36.8

34.4

56.0

160

224

237

24.0

6.46

TGH-13

41.4

38.7

63.0

-4.4

+0.260 +0.120

180

±9

252

±13

267

＋13 0

27.0

9.77

TGH-14

46.0

43.0

70.0

100

200

280

296

30.0

12.94

TGH-15

50.6

47.3

77.0

110

220

308

326

33.0

17.02

TGH-16

55.2

51.6

84.0

120

240

336

356

36.0

22.75

TGH-17

59.8

55.9

91.0

-5.5

130

+0.305 +0.145

260

±13

364

±18

385

＋19 0

39.0

28.41

TGH-18

64.4

60.2

98.0

140

280

392

415

42.0

35.56

TGH-19

69.0

64.5

105.0

150

300

420

445

45.0

48.35

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.

Product Tags:


*From:	Your email address is incorrect!
*To:	Shanghai Anfeng Lifting & Rigging LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Wire Rope Sling Assembly
Brand Name:	Anfeng / AF
Model Number:	TGH-11
Certification:	CE, GS, ISO 9001
Place of Origin:	China
MOQ:	500 pcs
Price:	Call or Email for quote
Payment Terms:	T/T, L/C
Supply Ability:	10,000 pcs per month
Delivery Time:	Within 45 days after order confirmation
Packaging Details:	Carton + pallet, wooden box, or custom
Standard:	GB/T 5974.2-2006
Material:	cast steel, ductile iron
Finish:	self coloured, rust coloured
Rope diameter:	28mm
Rope strength:	1770 MPa
Length:	Customized
Key word:	Wire Rope Sling with Solid Thimble Eye, Eye Sling
OEM or ODM services:	Yes, upon request
Place of origin:	Shanghai or Guangzhou, China
Packing:	Carton + pallet, wooden box, or custom
