| Categories | Road Sweeper Truck |
|---|---|
| Brand Name: | clw |
| Model Number: | clw5070 |
| Certification: | CCC,SGS,BV |
| Place of Origin: | Suizhou,China |
| MOQ: | 1Unit |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 500 Units per month |
| Delivery Time: | 30 days after receiving deposit at account |
| Packaging Details: | naked,waxed,bulk ship,ro-ro |
| Truck brand: | Dongfeng |
| Volume: | 280 cubic feet |
| Drive model: | 6wheels |
| Brush Quantity: | None or as option |
| Water Tank Volume: | 70 cubic feet |
| Dust Bin Volume: | 200 cubic feet |
| Auxilary Engine: | ISUZU or Cummins 77HP |
| Valve: | SIEMENS |
| Sweeping Capacity: | 70000m2/h |
| Sweeping Speed: | 5-15 km/h |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

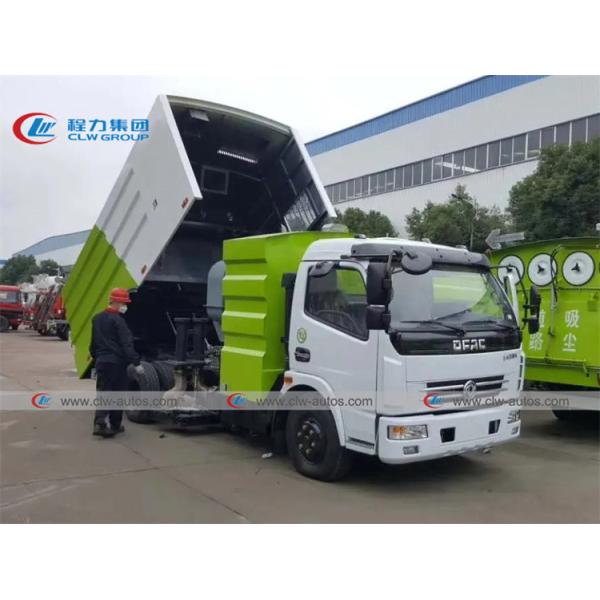

70000m2/h Dust Sweeping Suction 5Ton Vacuum Sweeper Truck with Cummins ISUZU Engine
Product Description
Main Data:
Cleaning width 3.4 meters,
Cleaning particle diameter 100mm,
Dust Tank Volume: 5 cubic meters,
Water Tank Volume:2 cubic meters,
High-pressure pump: imported Italian pump,
Flow rate: 130L/min,
Cleaning rate can reach 99%.
Cleaning speed is 5-20km/h.
sweeping capacity is 70,000㎡/h
Specifications of 5cbm road sweeper truck
| Cabin | Driving type 4x2 LHD OR RHD single row,with A/C ,with two seats,audio with USB, | |||||||||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 5950×1990×2500 | ||||||||||
| Wheel base (mm) | 3300 | |||||||||||
| Wheel track (front/rear) (mm) | 1506/1530 | |||||||||||
| Approach/Departure angle(°) | 24/13 | |||||||||||
| Weight in KGS | Tare Weight | 4950 | ||||||||||
| payload | 2270 | |||||||||||
| Front axles loading capacity | 1x2940 | |||||||||||
| Rear axles loading capacity | 1x4410 | |||||||||||
| Max. driving speed(km/h) | 90 | |||||||||||
| Engine | Brand | ChaoChai | ||||||||||
| Model | CY4102 C3F | |||||||||||
| Horse Power(HP) | 95HP | |||||||||||
| Emission standard | EuroIII | |||||||||||
| Gearbox | 5 forwards & 1 reverse | |||||||||||
| Steering | Right hand drive | |||||||||||
| Tire | 7.00-16,6 tires with one spare | |||||||||||
| Max. Cleaning Width | 3M | |||||||||||
| Sweeper Speed | 3~20 km/h | |||||||||||
| Max. Cleaning Capacity | 60000 m2/h | |||||||||||
| Max. Suction grain size | ≥110mm | |||||||||||
| Dumping angle | ≥45° | |||||||||||
| Hopper | 4000liters,double layer,Stainless steel inside | |||||||||||
| Water tank | 1500Liters | |||||||||||
| Auxiliary Engine | Model&Manufacturer | JIANGLING JX493ZQ | ||||||||||
| Type | Four-injection,water-cooling,turbo-charged,diesel engine | |||||||||||
| Power | 77hp/3600r/min | |||||||||||
| Max. Rotation Speed | 2400r/min | |||||||||||
| Oil type | 0# Diesel,share the same fuel box with chassis | |||||||||||
| Aerator | Type | High pressure centrifugal Aerator | ||||||||||
| Curb rotation speed | 2600-2900r/min | |||||||||||
| Driving model | Driven by auxiliary engine and transferred by transmission parts,clutch and belts | |||||||||||
| Hydraulic System | Type | electro-hydraulic Centralized Control | ||||||||||
| Main parts | Gear pump,gerotor motor,hyraulic oil cylinder,magnetic valve,manual pump | |||||||||||
| Overflow pressure | 14MPa | |||||||||||
| Hydraulic oil type | L-HV46(when temperature is 30℃-5℃) L-HM46(when temperature is 5℃-40℃) | |||||||||||
| Hydraulic oil box | 70L | |||||||||||
| Water sprinkling | Main parts | Water pump,water filter,sprinkler,water box | ||||||||||
| Electrical system | Con-structure | Two batteries(in series) | ||||||||||
| Voltage | 24V | |||||||||||
| Battery model | 12-80A.H | |||||||||||
| Sweeping System | Type | Fours brushes installed between front and rear axle,driven by gerotor motor.Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are gang controlled for up and down. | ||||||||||
| Sweeper Diameter | 900mm | |||||||||||
| Sweeper rotation speed | 80r/min | |||||||||||
| Sweeper angle adjustment | Forerake 4°-6°and extroversion 2°-4° | |||||||||||
| Suction Nozzle | Type | U-shaped | ||||||||||
| Nozzle diameter | 200mm | |||||||||||
| Nozzle ground clearance when operation | 5-10mm | |||||||||||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different
functions,you can contact us and tell your request.We will
recommend you suitable product.
Q2: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to
many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. Wuhan is two hours' plane from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
|
