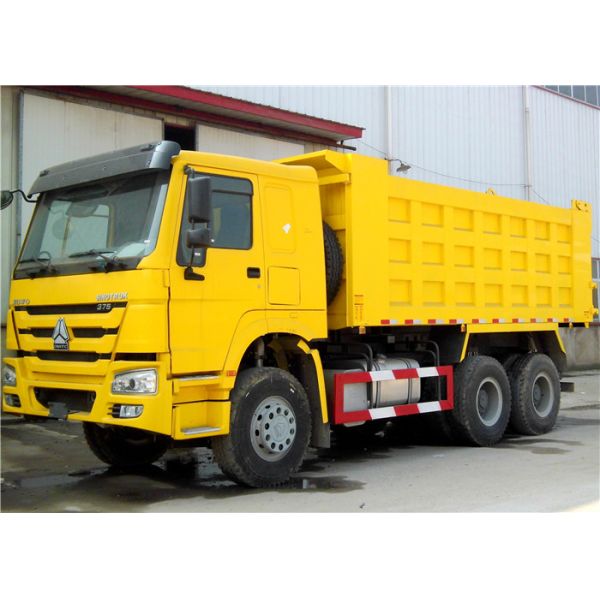

Sinotruk HOWO 6X4 30T Heavy Duty Tipper Dumper Truck

Sinotruk Heavy Duty HOWO 6x4 30 tons 30 T Used Truck Vehicle Tipper Dumper Dump Truck

Product Description

A dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the dump truck. It consists of a car chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device.
The compartment of the dump truck is tilted backwards and laterally tilted. The piston rod movement is controlled by the operating system, and the backward tilting is more common. The piston rod is pushed to tilt the carriage, and a few are tilted in two directions.

Shape classification
Single-bridge dump truck, double-bridge dump truck, flat-head dump truck, pointed dump truck, front four rear eight dump trucks, double-bridge semi-trailer dump trucks, three-bridge semi-trailer dump trucks.
Variety classification

1. Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...
2. Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand
3. High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.
4. Used in construction site for transportation of mineral,stone,sand and so on.

product Specification for Sinotruck HOWO 10 Wheels Wheeler 6x4 30tons 30T Used Tipper Dumper Dump Truck Trailer for Sale

Condition	New condition/Left hand drive/6X4 drive model/SINOTRUK HOWO
Chassis	Weight in kg		Curb weight(Including upper weight)			12,110
			Loading weight			30,000
			Gross weight			41,000
			Front axle loading capacity			9,000
			Rear axle loading capacity			16,000x2
	Dimensions in mm		Wheelbase			3800+1350
			Overall Dimension			830024963450
			Approach angle(o)			19
			Departure angle(o)			17
	Front axle		HR9; Steering with double T-cross section
	Rear axle		AC16; Pressed axle housing, central single reduction and differential locks between axles; Ratio: 4.11
	Clutch		Single- plate dry diaphragm spring clutch
	Brakes		Air brakes
	Steering		ZF8118
	Wheel & Types	Rims	8.5-20,10 hole-steel
		Types	12R22.5 with one spear tire, 11 pcs in total
Transmission	Model HW19710, 10 forward and 2 reverse, with PTO
Cabin	HW70/HW76
Engine	Make			SINOTRUK
	Model			WD615.47
	Description			4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling
	Displacement(ml)			9726 ml
	Power			371HP
Upper
Box	Type				U-type
	Size(mm)				*16CBM; 540023001300 mm*
	Max. Loading weight(kg)				30tons-35tons
	Button Thickness(mm)				6.0 mm
	Side plate Thickness(mm)				4.0 mm
	Material				Hardox 450/NM 450

Sinotruk HOWO 6x4 30tons 30T used dump dumper truck Sinotruck used tipper truck for sale

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .

Product Tags:


*From:	Your email address is incorrect!
*To:	HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Heavy Duty Dump Truck
Brand Name:	CLW
Model Number:	CLW20210612
Certification:	ISO9001, CCC, BV, SGS
Place of Origin:	SUIZHOU, HUBEI
MOQ:	1 unit
Price:	Negotiated
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 units per month
Delivery Time:	30-35 days after receiving the deposit
Packaging Details:	Naked or waxed before shipment
Tipper body:	U-SHAPE, or Square shape
Product name:	Used or new dump truck, tipper dumper truck
Drive Type:	6X4 10 WHEELS 10 WHEELER
Drive model:	Left hand drive, or RHD
Loading capacity:	20 tons, 25 tons, 30 tons, 20T, 25T. 30T
Truck Brand:	Sinotruk/Sinotruck HOWO, shacman, FAW, FOTON, jac
Tuck type:	Front tipping, or middle tipping
Hydraulic:	HYVA
Condition:	USED, OR BRAND NEW FOR OPPTION
