Phenolic Wheel Heat Resistant Casters With Brake 3 Inch

Categories High Temperature Casters
Brand Name: Ecastor
Model Number: 1222-75
Certification: ISO9001
Place of Origin: Suzhou, China (Mainland)
MOQ: Negotiation
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 500000 Piece/Pieces per Month
Packaging Details: Inner Bag, Carton, Pallet
Product Name: Phenolic Wheel Heat Resistant Casters
Load Capacity: 100 kg
Wheel Diameter: 75 mm
Tread Width: 32 mm
Plate Size: 95x65mm
Hole Spacing: 75x45mm
Mounting Height: 100 mm
Tread Material: Phenolic
Mounting Type: Plate Brake
Max Temperature: 300 ℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

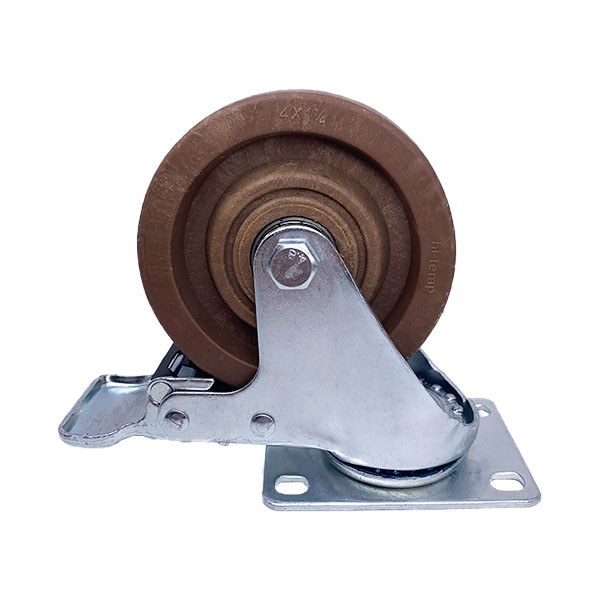

Phenolic Wheel Heat Resistant Casters With Brake 3 Inch

Phenolic Wheel High Temp Resistant Swivel Plate Caster 3 Inch

1. Description:

Wheel Material: Phenolic wheels are manufactured by impregnating and impregnating fibers with phenolic resin and molded under high pressure and high temperature. The resulting hard, high-temperature wheels are very suitable for carrying heavy loads. They are especially suitable for carrying static heavy loads for long periods of time without causing any permanent deformation of the wheels. However, it should be noted that if you use it on a rough surface or hit another object, the phenolic wheel may break.


Bearings: The steel ball bearings in standard casters cannot support well at high temperatures. Manufacturers usually use stainless steel, which has a higher rating. Another option is to use a bronze sleeve in the wheel hole instead of the ball bearing; it has a higher temperature rating, but it will not roll. Bearings suitable for high temperatures must be selected for operation in high temperature environments.


2. Specification


Product Name3 Inch Phenolic Wheel High Temp Resistant Swivel Plate Caster with Brake
Wheel Diameter (mm)75
Wheel Width (mm)32
Load Capacity(kg)100
Height (mm)100
Plate Size (mm)95x65
Hole Spacing (mm)75x45
Hole Size (mm)8.5
Tread MaterialPhenolic
Max Temperature300 Degrees Celsius
Mounting TypeSwivel Plate with Brake
Code1222-75
BrakeYes

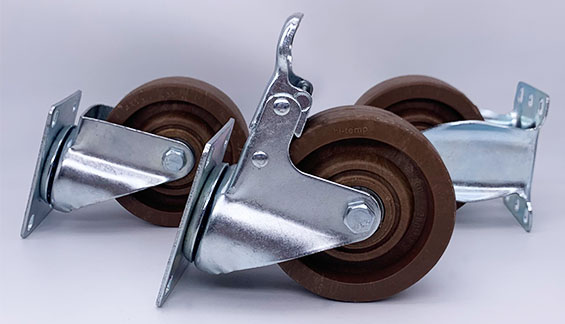

Pallet Truck Steer Wheel


3, Other Size Products as Bellow:
