| Categories | Brushed Permanent Magnet DC Motor |
|---|---|
| Brand Name: | SECORE |
| Model Number: | DC1020 |
| Certification: | CE ROHS |
| Place of Origin: | Guangdong |
| MOQ: | 100 |
| Price: | Negotiated The Price |
| Payment Terms: | T/T, D/A |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 7-12 working days |
| Packaging Details: | 500pcs per carton or as request |
| Type: | Micro motor, brush motor |
| Working voltage: | 1V-6V |
| Sizes: | 20*8*10mm |
| Max Torque: | 12.2 g.cm |
| Speed: | 8800rpm or customized |
| Protection: | drip-proof |
| Commutation: | mechanical commutation, brush |
| Application: | hair curler, hair straightener, tattoo machine |
Small Size Stable Metal Brush Motor For tattoo machine, low voltage brushed dc motor 3v
| Specification | DC1020-01 | DC1020-02 | DC1020-03 | |
| Voltage | OPERATING RANGE (V) | 1.0-3.0 | 3.0-6.0 | 4.0-7.0 |
| Nominal (V) | 1.5V | 4.5V | 6.0V | |
| No load | Speed (r/min) | 11300 | 9700 | 14900 |
| Current (A) | 0.08 | 0.025 | 0.027 | |
| AT MAXIMUM EFFICIENCY | Speed (r/min) | 8815 | 7370 | 11771 |
| Current (A) | 0.293 | 0.079 | 0.099 | |
| Torque (mN.m) | 0.28 | 0.27 | 1.2 | |
| Torque (g.cm) | 2.9 | 2.8 | 12.2 | |
| Output (W) | 0.26 | 0.21 | 0.31 | |
| Stall | Torque (mN.m) | 1.08 | 1.16 | 1.2 |
| Torque (g.cm) | 13 | 11.8 | 12.2 | |
| Current (A) | 1.05 | 0.25 | 0.37 |
LV permanent magnet DC motor applies for Hair Curler And hair
Straightener, sex toys, personal care, beauty equipment, health
products, toys, model aircraft
Mounting sizes:

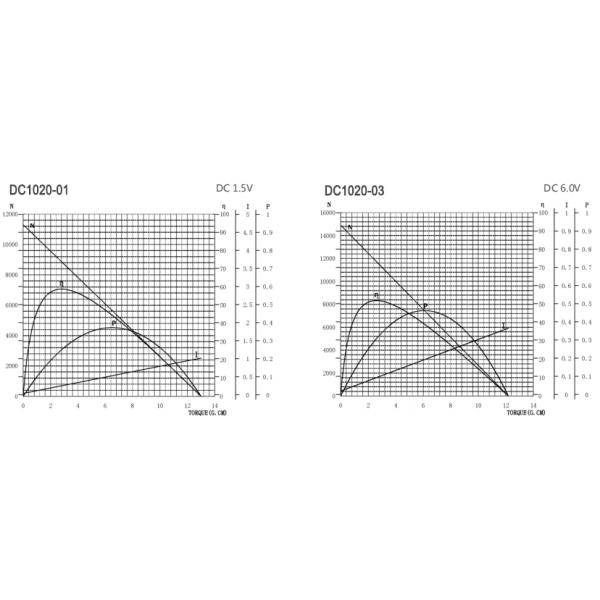

Motor performance curve ( T-N-I curve ):

|
