| Categories | Material Transfer Cart |
|---|---|
| Brand Name: | Electric Transfer Trolley |
| Model Number: | Electric Transfer Trolley |
| Certification: | CE ISO SGS |
| Place of Origin: | China(mainland) |
| MOQ: | 1 set |
| Price: | USD 2000~7500 set |
| Supply Ability: | 100 sets month |
| Delivery Time: | 20 work days after received balance payment |
| Packaging Details: | trap and wooden case |
| Product Name: | Electric Transfer Trolley |
| Capacity: | 1-300T |
| Dimension: | Customized as Practical Needs |
| Color: | Customized |
| Application: | Industrial Filed |
| Feature: | Easy Operation |
| Certificates: | CE ISO SGS |

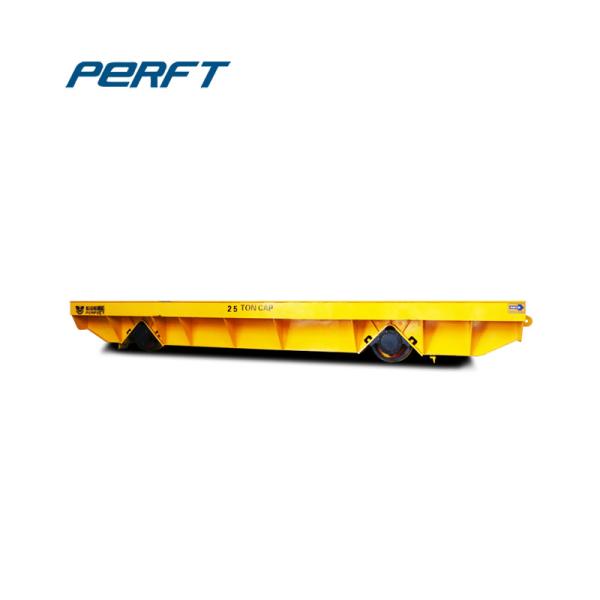

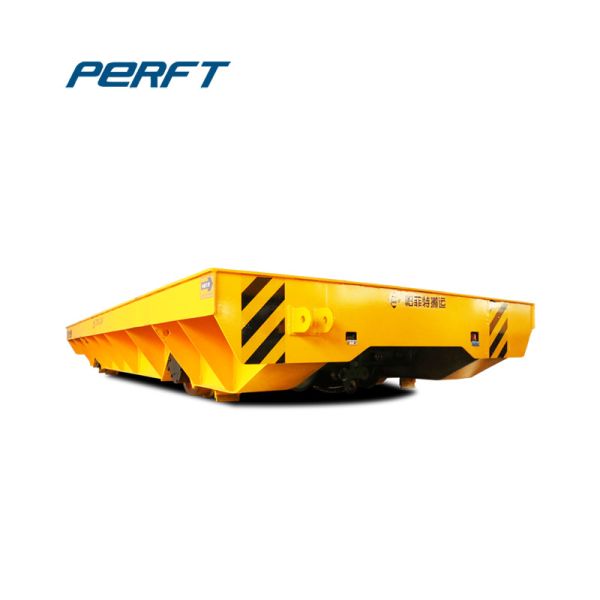

PERFECT's transfer carts, also known as cross flat cart, transfer trolley,electric flat cart, have advantages as simple structure, easy operation and maintenance,large load capacity and so on,with which these transfer carts are widely used in machine manufacturing and metallurgical factory matching up with lift cranes to transport heavy objects warehouse across.The rail transfer carts are suitable for various industries, steel mill and factory, paper roll plant,painting room,shipbuilding,new factory building project,machine processing line,heavy industry, airport and so on to transfer or handling material and equipment from one place to another, from warehouse to workshop.
Customization
PERFECT is specialized in designing and manufacturing of heavy duty
Material Transfer Cart:
Transfer Cart : Trackless transfer car, Battery operated transport trolley, Coils
cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails
transfer cart, S shape railway transport cart, L shape track
transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop
transfer trailer, Airport baggage cargo trailer, Car transport
trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam
transporter, aluminum plate transport vehicle, transformer carrier
bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport
equipment, Motorized turntable, Vacuum furnace transfer cart,
Automatic vehicle etc.
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
|
