| Categories | Ultrasonic Welding Transducer |
|---|---|
| Brand Name: | Altrasonic |
| Model Number: | HS-D41S30 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union,paypal |
| Delivery Time: | 5 workdays |
| Frequency: | 20kHz |
| Output Power: | 1000-3000watt |
| Joint Bolt: | 1/2-20 UNF |
| Ceramic disc Diameter: | 50mm |
| Qty of ceramic discs: | 4pcs |
| Capacitance: | 11nf |
| Amplitude: | 20 um |
| Application: | Plastic welding machine |
| Warranty: | 1 Year |
| Aftersales service: | Online service |

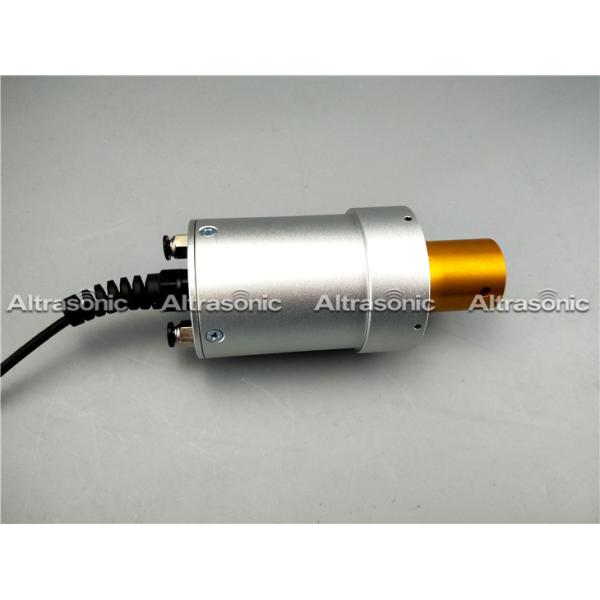

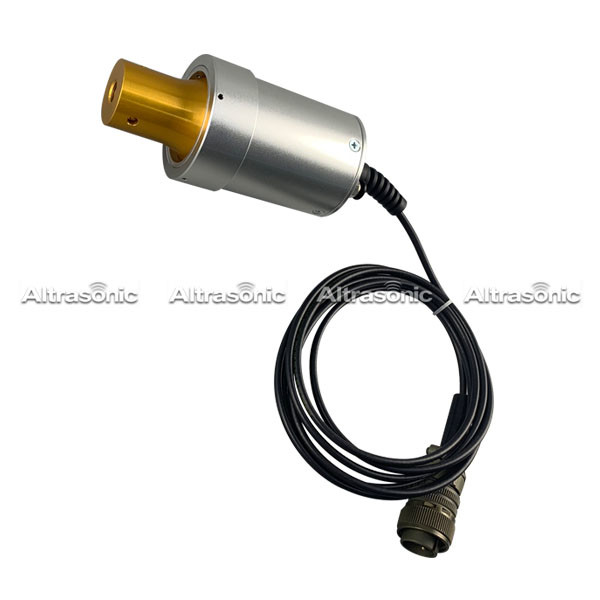

Replacement Dukane 20kHz 4 Ceramics Ultrasonic Welding Transducer 41S30
Specifications:
| Model | HS-D41S30 |
| Frequency | 20Khz |
| Output power | 1000-3000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11nf |
| Amplitude | 20 um |
| Application | Plastic welding machine |
Description:
It is applied to Dukane type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applied Industries :automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.
Altrasonic’s service team is 24/7 available for support. Our well trained and experienced service engineers advise and support on-line or if necessary on location. Whether a custom-made production line or a standard machine: we always ensure that production can be resumed as soon as possible.
Factory workshop:
|
