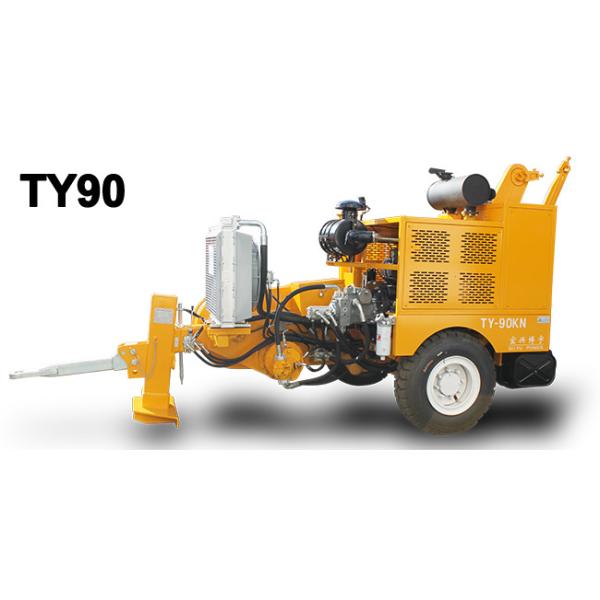

Hydraulic Puller Transmission Line Stringing Equipment German Rexroth Main Motor

Performance

Max pull

100kN

Max continuous pull

90kN

Speed at max pull

2.5km/h

Max speed

5km/h

Pull at max speed

40kN

Characteristics

Groove number

8

Bull-wheel diameter

540mm

Max rope diameter

21mm

Total weight

4350kg

Max diameter of rope reel

1400mm

Overall dimension (length*width*height)

4500×2100×2450mm

Main configuration

Engine

Cummins

Hydraulic pump

German Rexroth

Main motor

German Rexroth

Tail bracket hoisting motor

American Eton

Operating handle

German Rexroth

Speed reducer

German Rexroth

Hydraulic meter

German

Engine

Diesel

118kw(158hp) Euro II, 4-stroke cycle, turbo-charged

Cooling system

liquid

Electrical system

24V

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions.

Additional Devices

Lighting system for the trailer

Hydraulic rope clamp for reel change

Digital speed and meter counter (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Configuration

Control instruments for hydraulic system and diesel engine

Hydraulic front stabilizer

Hydraulic dynamometer with set-point and automatic control of maximum pull

Grounding connection point

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic oil cooling system

Additional Devices

The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.

Hydraulic system for drum stand control with flat face quick action couplings

Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation

Cable and radio remote control fully replacing all controls at machine panel.

Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Remote diagnosis via GSM network with GPS modem, Synchronization system

Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit

Manufacturer's recommended tools.

Manufacturer's workshop maintenance manual, in English

Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).
