Steel Crawler 350 Meters Water Borehole Drilling Machine Pneumatic

Categories Pneumatic Borewell Machine
Brand Name: ShiTan
Model Number: ST-350
Certification: ISO,CE,SGS,TUV,BV
Place of Origin: China
MOQ: 1 set
Price: 50000$/set
Payment Terms: T/T, Western Union
Supply Ability: 20000 sets per year
Delivery Time: 7-10 days
Packaging Details: customized packed or normal packing
Product Name: Steel Crawler High Drilling Speed Shitan 350 Meters Pneumatic Borewell Machine
Place Of Origin: China (Mainland)
Model Numbe(m): ST-350
Drilling Depths: 350 meters
Hole Diameters: 105-305mm
Warranty: 1 year
Color: Yellow,Red
OEM: Customized
Crawler: Optional
Truck Mounted: Optional
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

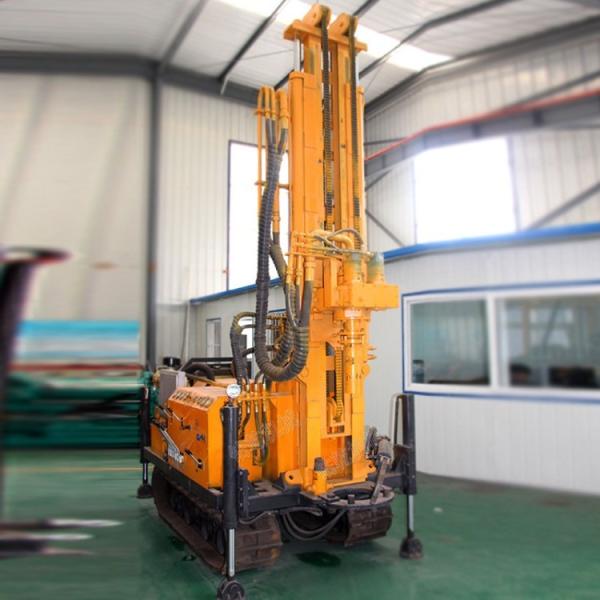

Steel Crawler 350 Meters Water Borehole Drilling Machine Pneumatic

Crawler Chassis ST 350 Meters Optional Color Drilling Equipment Pneumatic Borewell Machine


ST 350 Pneumatic Drilling Rig Machine Descrption


ST 350 Pneumatic Drilling Rig Machine is aretop hammer drill rigs are equipped with powerful hydraulic rock drills that offer high penetration rates, reliability, and excellent fuel economy. These diesel-powered rigs represent the industry's leading range, from lightweight rubber-tire drills to the most powerful production drills available. ​


ST 350 Pneumatic Drilling Rig Machine Main Technical Data


Drilling Rig Model Name
ST 350 Pneumatic Drilling Rig Machine
Drilling depth
350m
Dia.hole
φ140 - 325mm
Advance Length one time
6.6m
Working pressure
1.7-3.3MPa
Air consumption
17-35m³/min
Length of rod
1.5m,2m,3m, 6m
Dia. Of rod
φ89,φ102,φ114
Lifting power
24T
Rotation torque
6200-85000N.m
Rotation Speed
55-115r/min
Diesel Engine
Yuchai
Engine Power
92Kw/2200rpm
Travelling speed
0-2.5 Km/h
Climb capacity
30°
Weight
9000kgs
Dimension
5900x2000x2850mm
Application
Complicated geological conditions: Rock, Mud, Sand etc.
ST 350 Pneumatic Drilling Rig Machine Advantages

Double pump hydraulic power head can meet the requirements of large torque, fast drilling, and the efficiency can reach 40m / h

The lifting force of the drill tower is large, so it is easy to lift the drill after the completion of the drill, and there will be no jamming and other phenomena.

With heavy fuselage and auxiliary tower, the drilling tower is not easy to deform, not afraid of reaction and stable drilling

Large tonnage winch can pull 50m root canal, saving time and increasing rate

The operation is centrally placed and the simple console is easy to use. Two people can operate the well.

Famous and high-quality diesel engine with high power,


ST 350 Pneumatic Drilling Rig Machine Applications


It is mainly used for drilling in hilly, mountainous and other rocky areas. It has the advantages of large drilling diameter, deep drilling, fast footage, flexible movement and high efficiency. It is now widely used in industrial and civil drilling, geothermal drilling, environmental monitoring drilling and other occasions.
