| Categories | Roadway LED Lighting |
|---|---|
| Brand Name: | GYLED |
| Model Number: | GY3614LD |
| Certification: | CE, ROHS |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200000PCS/YEAR |
| Delivery Time: | 7-10DAYS |
| Packaging Details: | 4PC IN 1CARTON |
| Power(W): | 20~280W |
| Input voltage(v): | AC100-240/277V |
| CCT: | 2700K-6500K |
| CRI: | >Ra70 |
| Warranty(year): | 5 years |
| Working temperature(℃): | -20 - 50℃ |
| Lamp luminous efficiency(lm/w): | 130lm/W |
| IP/IK rating: | IP67/IK09 |
| Material: | Die-casting aluminum alloy + PC lens |
| Light distribution: | I-S, II-M, III-M, V |
LED road lighting aluminum alloy street lights 50W 100W 150W high lumen waterproof

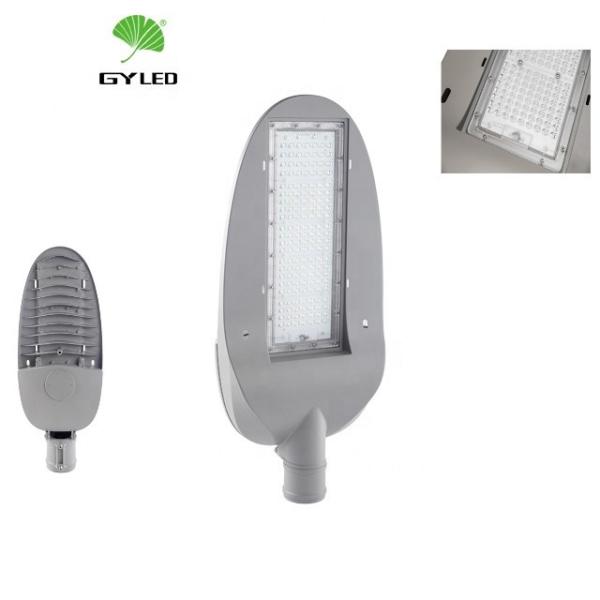

GY3614LD Roadway LED Light
Product Brief
LEDs Light Source: Lumiled or Cree. Higher luminous efficiency;
Housing: Die-casting aluminum, a brand-new design, PC LENs with the higher light transmission, lower light degradation, modularization;
Power Supply: Built-in type;
Streamlined Appearance Design: Unique, elegant;
Applicable Area: Applying for city secondary main road, the path, the sidewalk, square, residential estate, park, school, bridge as well as factory lighting.
Technical Parameter
GY3614LD | GY4719LD | GY5623LD | GY6729LD | GY7433LD | |
Power(W) | 20-30 | 30-60 | 80-100 | 120-150 | 180-280 |
Lumen Output(lm) | 2400-3600 | 3600-7200 | 9600-12000 | 14400-18000 | 21600-33600 |
Input Voltage(V) | 100-240/277VAC | ||||
Power Factor | 0.95 | ||||
Frequency(Hz) | 50-60 | ||||
Lighting Efficiency(LM/W) | 110-130 | 120-140 | |||
Lamp Post Diameter(mm) | 40 | 60 | |||
CRI | 70 | ||||
Color Temperature(K) | 2700-6500 | ||||
Certificates | CE-LVD IK09, IP67 | NO | |||
Material | Die casting aluminum+PC lens | ||||
Beam Angle | II-M | I-S, II-M, III-M, V | |||
Glass Grade | CLASS I | ||||
IP Grade | IP67 | ||||
IK Grade | IK09 | ||||
Optional Function | No | Glass outside or 10KV SPT or Light sensor(3P/7P) | |||
Advantages:
Easy Installation, Low Maintenance,
High efficiency and Corrosion Resistance&Waterproof
Simple design, portable, practical
Better Light Maintenance
Better Color Consistency
Better Outdoor Stability
Die-cast aluminum alloy housing
The Led light source, High luminous efficiency, more brightness
Support Longer working time as Well as Energy saving.
Application:
Suitable for urban roads, sidewalks, squares, schools, parks, courtyards, residential areas, factories, and other places that require outdoor lighting.




|
