| Categories | Battery Transfer Trolley |
|---|---|
| Brand Name: | Remarkable |
| Model Number: | RWP |
| Certification: | CE,ISO |
| Place of Origin: | Henan,China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 600 |
| Delivery Time: | 30-45 work days |
| Packaging Details: | 1.Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Power supply: | Maintenance free battery |
| Load: | 10 tons |
| other name: | battery operate transfer trolley |
| Operation method: | Wireless remote control & Hand operate pendant |
| Traveling speed(m/min): | 0-20 (Stepless speed regulation) |
| Brake mode: | Electromagnetic brake |
| Battery charger function: | Automatic charging |
| Move Way: | Forward, backward, turning while driving with no stop |

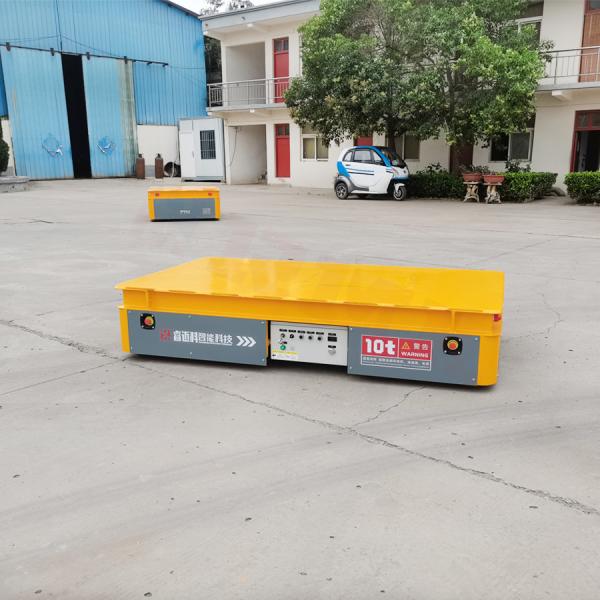

10T Industrial Battery Transfer Trolley Platform Truck Steerable Electric
Trackless vehicle battery has a simple structure, convenient use, not dirty not to hit, large carrying capacity, long service life and easy maintenance etc, because of its convenience, husky, economic, practical, easy to clean, and many other advantages, make short distances between the enterprise internal and factory and factory designated frequently carry the weight of the important choice of transport. So what do we need to know about transportation operations? Can do a good job for our safety. The following small make up for you to briefly talk about. Release the run button and the battery trolley will slide to a stop, then press the stop button and the battery trolley will remain in the braking state. Turn off the key switch and press the emergency stop button. To ensure safety, the main power supply should be switched off when the vehicle is not in use or off duty. Operation safety officer must remember these points: will use, will maintain, will check, will troubleshoot.



10T Industrial Battery Transfer Trolley Platform Truck Steerable Electric
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||











|
