Laser Pipe Cutter Pneumatic Main Chuck For Clamping Round Tube

Categories Laser Chuck
Brand Name: Lingman
Model Number: GW400A-165
Place of Origin: Changzhou, Jiangsu, China
MOQ: 1 set
Price: USD 2200-2800/set
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Delivery Time: 15-20 work days
Packaging Details: Wood carton
Product name: Laser Chuck
Claw stroke: 60mm
Maximum clamping force: 1.2KN
Allowable pressure: 0.4-0.9MPa
Limit speed: 500r/min
Clamping range: 20-160mm
Rotational inertia: 6.5kg.㎡
Rotating part weight: 192kg
Whole unit weight: 315kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

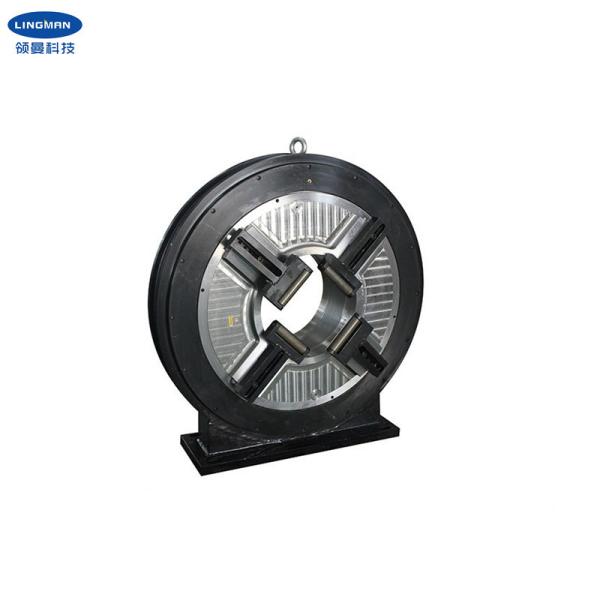

Laser Pipe Cutter Pneumatic Main Chuck For Clamping Round Tube

Pneumatic Main Chuck Of Laser Pipe Cutter For Clamping Round Tube

1. Descripition

Our laser chuck is mainly designed for laser tube cutting machine. Laser chuck is used for clamping and feeding tubes when cutting tube. It can clamp not only round tubes, but also rectangular tube, L-shap tube, H-shape tube and so on.
It can realize quick clamping and loosening by rotating air intake from the side, disconnet the air source before working. It is controlled by switching single and double cylinders, which produces differentc clamping forces, which has more advantages of clamping thin-walled tubes and heavy-duty pipes.
Becaus of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and feed chuck matched with it are usually installed in pairs on the machine.


2. Performance Parameters

  • Model number
GW400A-165
  • Claw stroke
60mm
  • Maximunm clamping force
1.2KN
  • Allowable pressure
0.4-0.9MPa
  • Limit speed
500r/min
  • Clamping range
20-160mm
  • Central height
350mm
  • Rotational inertia
6.5Kg.m2
  • Rotating part weight
192kg
  • Whole unit weight
315kg


3. Dimensions

SpecificationsABB1CDEFGHIRS
GW400A-1655803506406602081655002261651759-M1018


4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws



5. Production Line

6. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.
